IS200ISBBG2AAB输入同步总线旁路板 用于燃气和蒸汽轮机应用

IS200ISBBG2AAB输入同步总线旁路板 用于燃气和蒸汽轮机应用

通用电气的IS200ISBBG2AABAB作为24 VDC输入同步总线旁路板。这是该板的几个版本之一

IS200ISBBG2AABAB是一个小板，重量约0.31磅前任何额外的包装材料或装箱运输。axcontrol仔细包装每个组件进行运输，因此您的最终运输重量将更高。

IS200ISBBG2AABAB通常安装在DIN导轨上。这些安装在板的底面与螺丝进入六个工厂制造的钻孔。这些孔被导电材料包围。该板由四个连接器组成，用于与系统内的其他组件通信，包括两个位置的端子带和三个直角插头连接器。所有连接器都位于短板边缘。在电路板内部，有继电器、LED指示灯、跳线开关、整流二极管和集成电路等组件。还有各种二极管、电阻器和电容器。单板上有GE标识、单板ID号和多个代码。

IS200ISBBG2AAB输入同步总线旁路板 用于燃气和蒸汽轮机应用

Ge's IS200ISBBG2AABAB serves as a 24 VDC input synchronous bus bypass board. This is one of several versions of the board

IS200ISBBG2AABAB is a small board that weighs about 0.31 LBS before any additional packing material or boxed shipping. axcontrol carefully packages each component for shipping, so your final shipping weight will be higher.

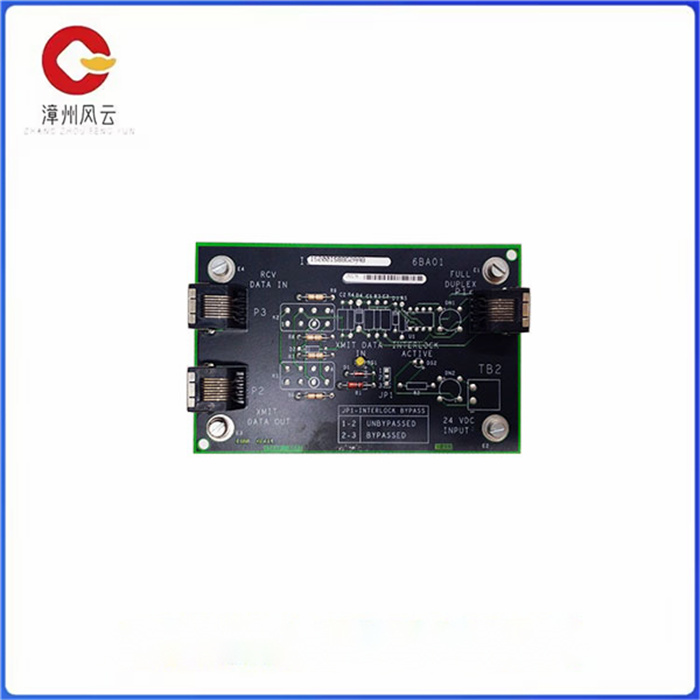

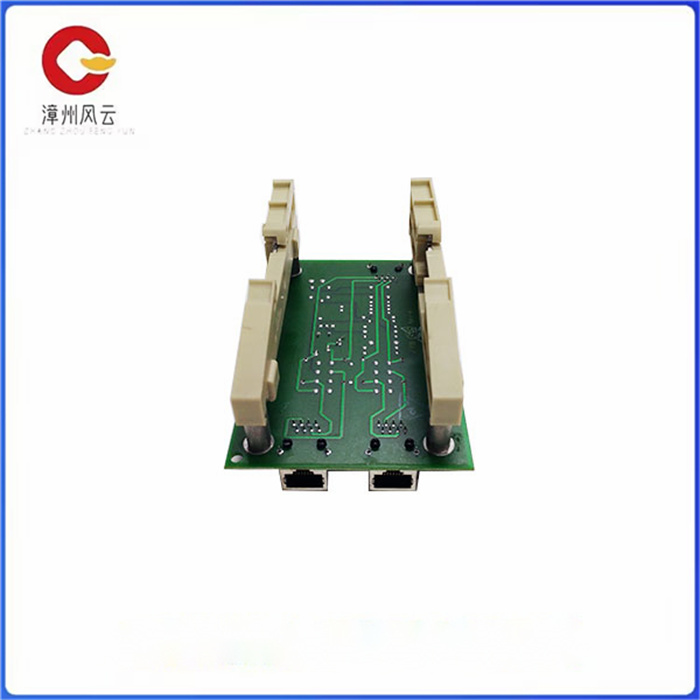

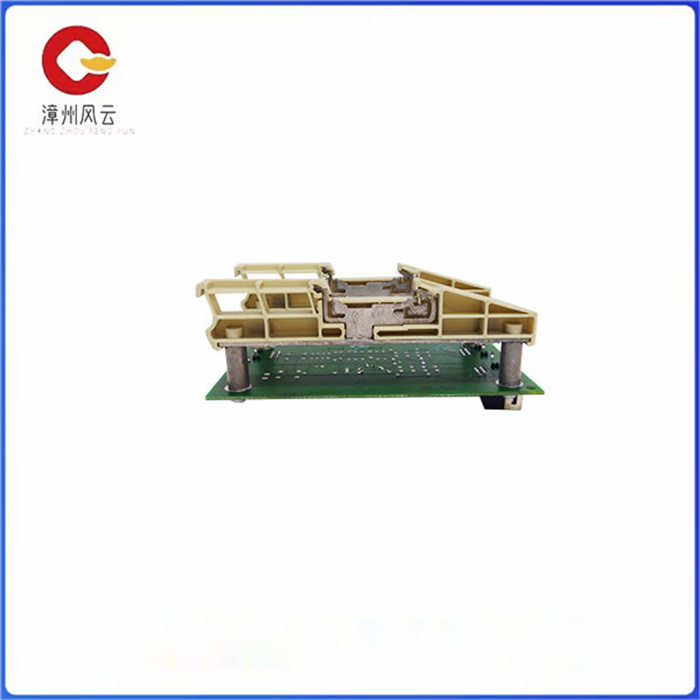

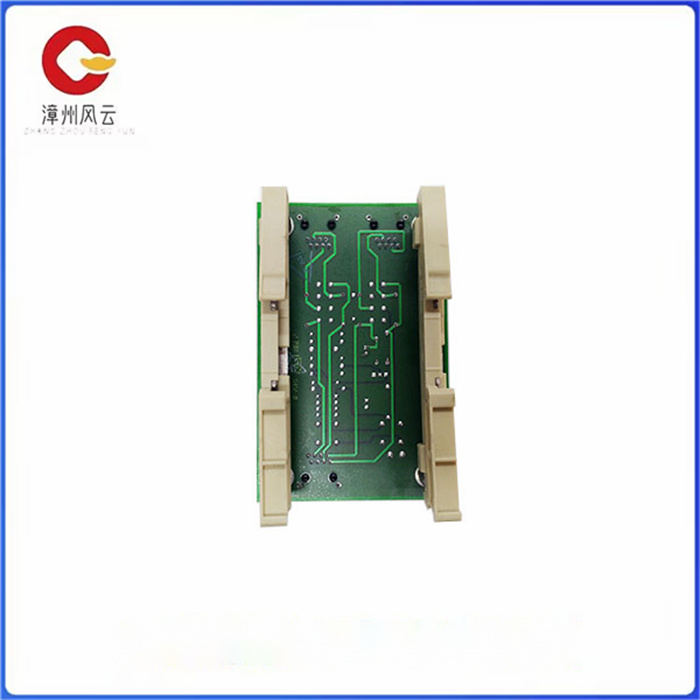

The IS200ISBBG2AABAB is usually mounted on a DIN rail. These are mounted on the underside of the board with screws into six factory made drill holes. These holes are surrounded by conductive material. The board consists of four connectors for communication with other components within the system, including a two-position terminal strip and three right-angle plug connectors. All connectors are located on the edge of the short board. Inside the circuit board, there are relays, LED indicators, jumper switches, rectifier diodes and integrated circuits and other components. There are also various diodes, resistors and capacitors. The board has the GE ID, board ID, and multiple codes.
