产品说明

IS200HSLAH2ADE HS单反LNK接口

IS200HSLAH2ADE是为Mark VI系列制造的电路板组件。MKVI是通用电气公司在Speedtronic系列中发布的用于管理重型燃气/蒸汽涡轮系统的最终系统之一。MKVI是一个完整的平台，用于保护、控制和监控这些类型的涡轮机系统。MKVI由通用电气公司设计为一个模块化、适应性强和可升级的系统，可以根据相应涡轮机的需要增加或删除模块。

IS200HSLAH2ADE是一款HS单反LNK接口板。电路板安装在顶部和底部电路板表面。这是一块小板子，顶部有一个插孔连接器。它有两个变压器(Halo TG 110-EO 50N5)以及六个电感线圈、几个晶体管和许多电阻、电容和二极管。该板有二十多个集成电路，包括U1的现场可编程门阵列。底面有额外的连接器、电阻器、晶体管和电容器。

IS200HSLAH2ADE HS单反LNK接口 系列制造的电路板组件

Product description

IS200HSLAH2ADE HS LNK port of SLR

The IS200HSLAH2ADE is a circuit board component manufactured for the Mark VI series. MKVI is one of the final systems released by General Electric in the Speedtronic family for managing heavy-duty gas/steam turbine systems. The MKVI is a complete platform for protecting, controlling and monitoring these types of turbine systems. The MKVI was designed by GE as a modular, adaptable and scalable system that can add or remove modules depending on the needs of the respective turbine.

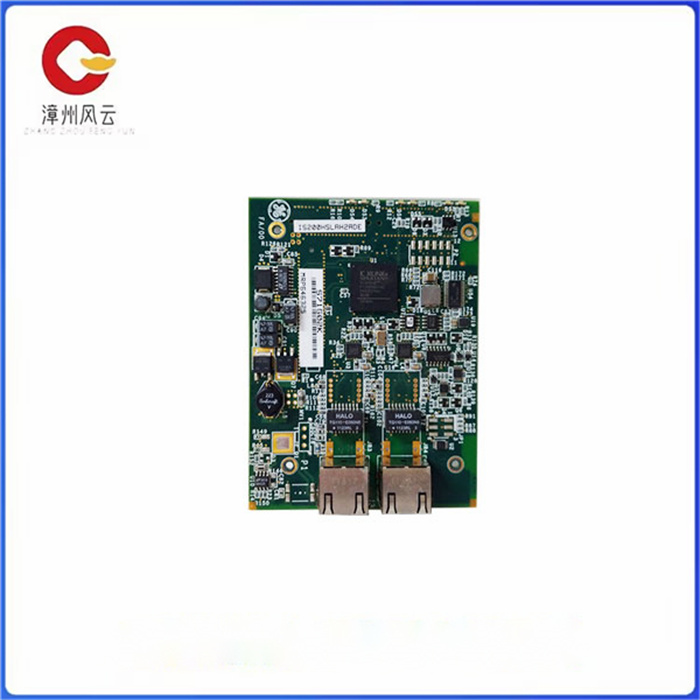

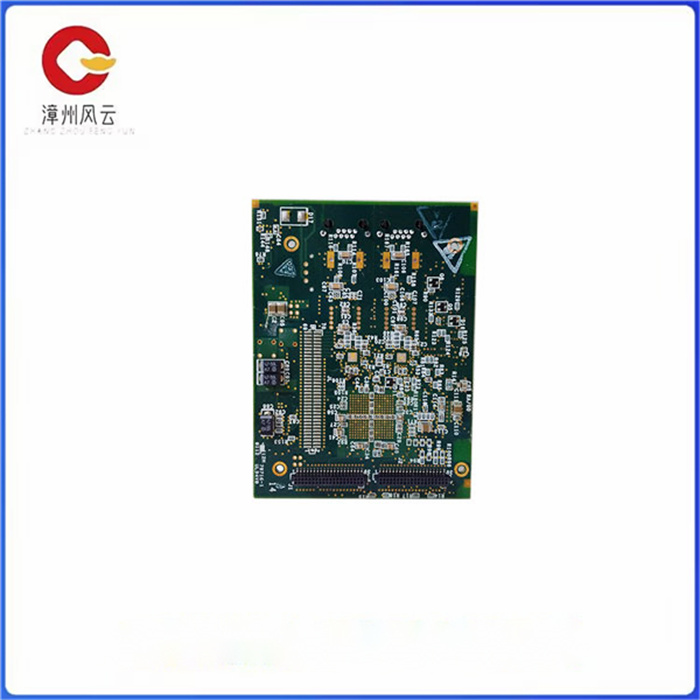

The IS200HSLAH2ADE is an HS SLR LNK interface board. The board is mounted on the top and bottom board surfaces. This is a small board with a jack connector at the top. It has two transformers (Halo TG 110-EO 50N5) as well as six inductors, several transistors, and many resistors, capacitors, and diodes. The board has more than two dozen integrated circuits, including a field programmable gate array of U1. The underside has additional connectors, resistors, transistors, and capacitors.
