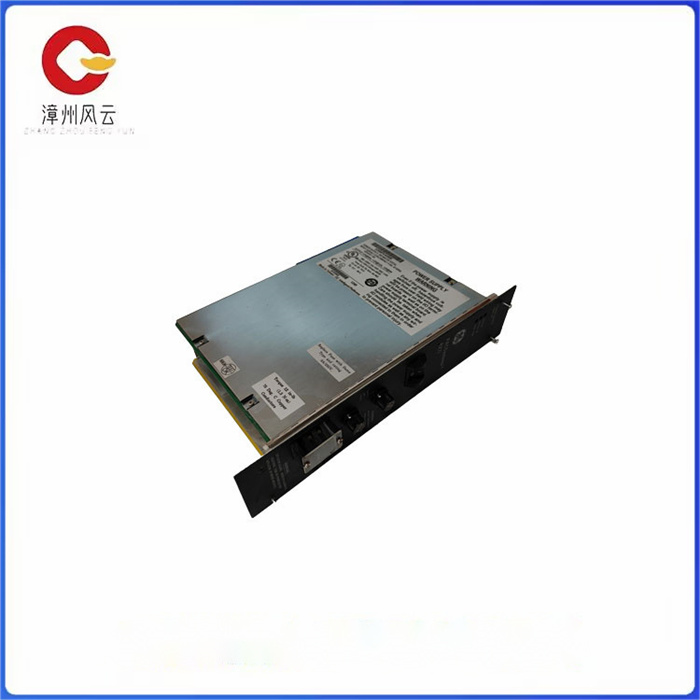

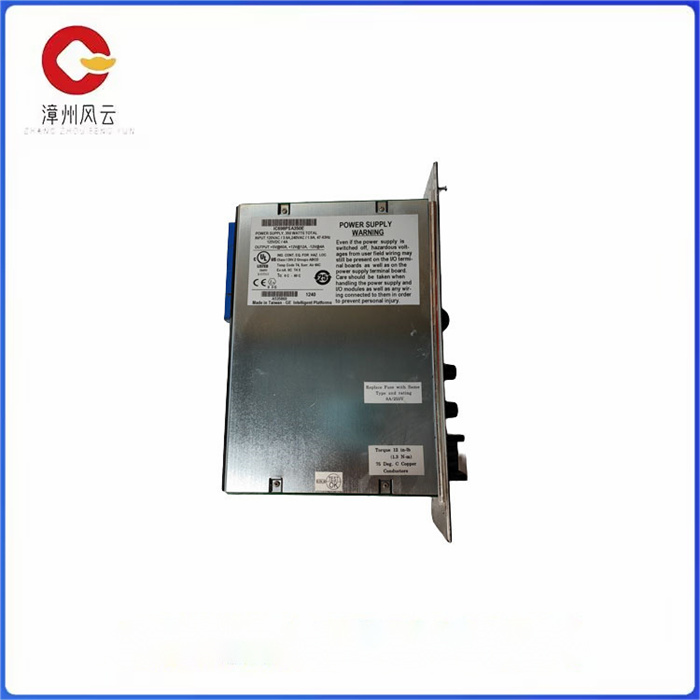

IC698PSA350是 PACSystem RX7i 控制器系列中的高容量电源模块。该模块用于提供背板电源，模块使用背板电源来激活内部电路并使其可操作。此电源模块占用机箱的单个插槽，设计为仅安装在 RX7i 机架的插槽 0 中。

该IC698PSA350在 85 至 264 VAC 的输入电源电压下工作，在 47-63 Hz 的交流输入频率下工作在 100-150VDC 的电压下工作。该模块的额定电压为 120 / 240 VAC 和 125 VDC，输入功率要求为 440 瓦（典型值）和最大 500 瓦。该电源模块用于交流输入电源时，功率因数为 0.99。

IC698PSA350 是一个单插槽电源模块，安装在 RX7i 机架或插槽 0 的最左侧插槽中。它提供了各种 LED 状态指示灯，有助于识别模块的运行状态。这些指示灯包括现场正常、输出正常和温度过高 LED。该电源模块内置过热和过压保护电路以及气流保护。系统机箱下方有一个 70 CFM 强制风冷风扇，用于为电源模块提供冷却空气。如果检测到气流停止，OVER TEM LED 指示灯将启动。

IC698PSA350电源有 A 系列和 B 系列版本。A 系列电源内部安装了 0.25“ x 1.25” 保险丝，而 B 系列电源有 5 x 20 m 保险丝。安装的保险丝是 8A/250V 保险丝。

IC698PSA350电源模块是 RX7i 系列的一部分，由 GE Fanuc 制造。该模块能够通过背板向模块发送逻辑电平信号。它的额定输出功率为 350 瓦。额定工作电压为 120/240 伏交流电和 125 伏直流电。电源模块的运行频率在 47 到 63 赫兹之间。该模块的工作温度范围在 0 到 60 摄氏度之间。电源模块配有气流传感器，可以轻松检测风扇故障或驱动器周围的气流停止。如果发生任何一种情况，温度过高的 LED 会亮起。可以通过使用模块外部的跳线来启用或禁用传感器。

在安装过程中，GE Fanuc IC698PSA350电源模块不应有任何带电的电源连接，应正确接地。对于现场接线，输入端子位于模块的正面，可以连接 120/240 伏交流和 125 伏直流输入电压tage 源。端子可以用实心线或绞合线连接。接地端子或 GND 应使用 12 AWG 电线连接到机架的 GND 端子。正常操作时，安装区域的环境温度不应超过 60 摄氏度。所有输出的隔离额定值为 1500 伏直流电。IC698PSA350模块提供 15 毫秒的穿越时间，保持时间为 5 毫秒。

IC698PSA350E 应用可编程控制DCS系统通用电气

The IC698PSA350 is a high capacity power module in the PACSystem RX7i controller family. The module is used to provide the backplane power supply, which the module uses to activate the internal circuitry and make it operational. This power module occupies a single slot in the chassis and is designed to be installed only in slot 0 of the RX7i rack.

The IC698PSA350 operates at an input supply voltage of 85 to 264 VAC and at an AC input frequency of 47 to 63 Hz at a voltage of 100 to 150VDC. The module is rated at 120/240 VAC and 125 VDC, with input power requirements of 440 watts (typical) and a maximum of 500 Watts. The power factor of the power module is 0.99 when it is used for AC input power.

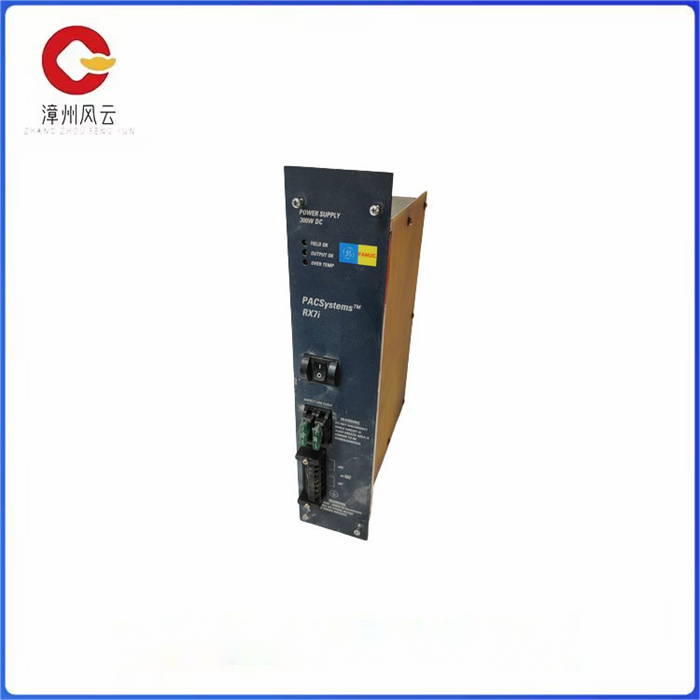

The IC698PSA350 is a single-slot power module that is installed in the leftmost slot of the RX7i rack or slot 0. It provides a variety of LED status indicators that help identify the operating status of the module. These indicators include field normal, output normal, and overtemperature leds. The power module has built-in overheat and overvoltage protection circuits and airflow protection. There is a 70 CFM forced air cooling fan under the system chassis to provide cooling air to the power module. If a stop in airflow is detected, the OVER TEM LED indicator will activate.

The IC698PSA350 power supply is available in A Series and B Series versions. The A Series power supply has a 0.25 "x 1.25" fuse installed inside, while the B Series power supply has a 5 x 20 m fuse. The fuse installed is an 8A/250V fuse.

The IC698PSA350 power module is part of the RX7i family and is manufactured by GE Fanuc. The module can send logic level signals to the module through the backplane. It has a rated output of 350 watts. The rated operating voltage is 120/240 volts AC and 125 volts DC. The power module operates at a frequency between 47 and 63 Hertz. The module operates in a temperature range between 0 and 60 degrees Celsius. The power module is equipped with an air flow sensor that can easily detect fan failure or air flow stoppage around the drive. If either happens, the overheated LED will light up. Sensors can be enabled or disabled by using jumpers outside the module.

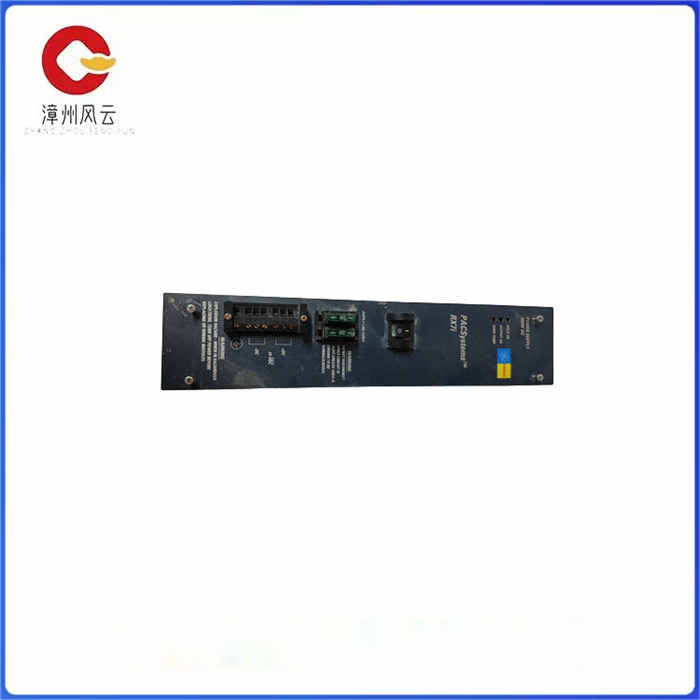

During the installation, the GE Fanuc IC698PSA350 power module should not have any live power connection and should be properly grounded. For field wiring, the input terminals are located on the front of the module and can be connected to 120/240 V AC and 125 V DC input voltage tage sources. Terminals can be connected with solid or twisted wires. The ground terminal or GND should be connected to the GND terminal of the rack using 12 AWG wires. During normal operation, the ambient temperature in the installation area should not exceed 60 degrees Celsius. The isolation rating for all outputs is 1500 volts DC. The IC698PSA350 module provides a traverse time of 15 milliseconds and a hold time of 5 milliseconds.
