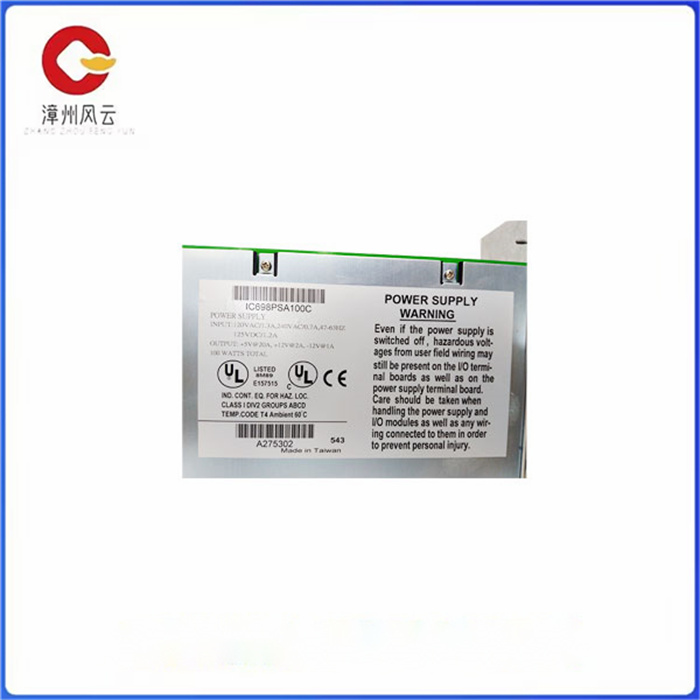

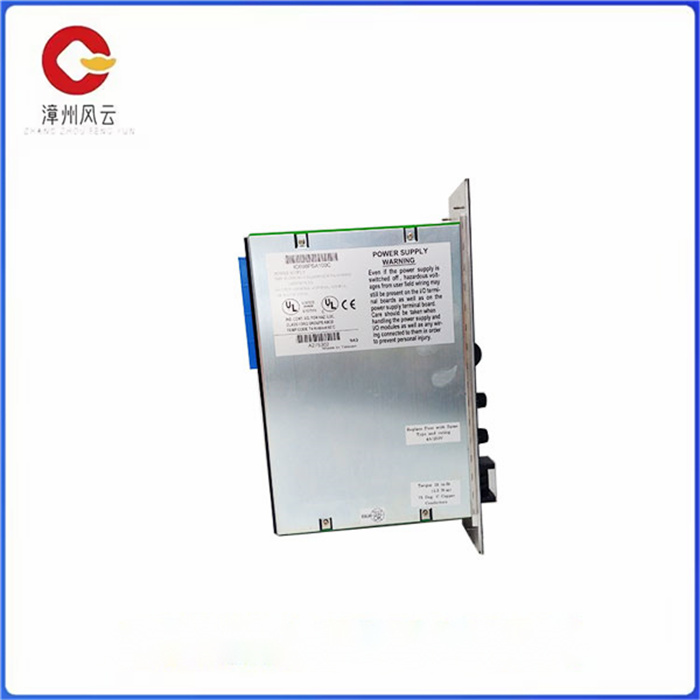

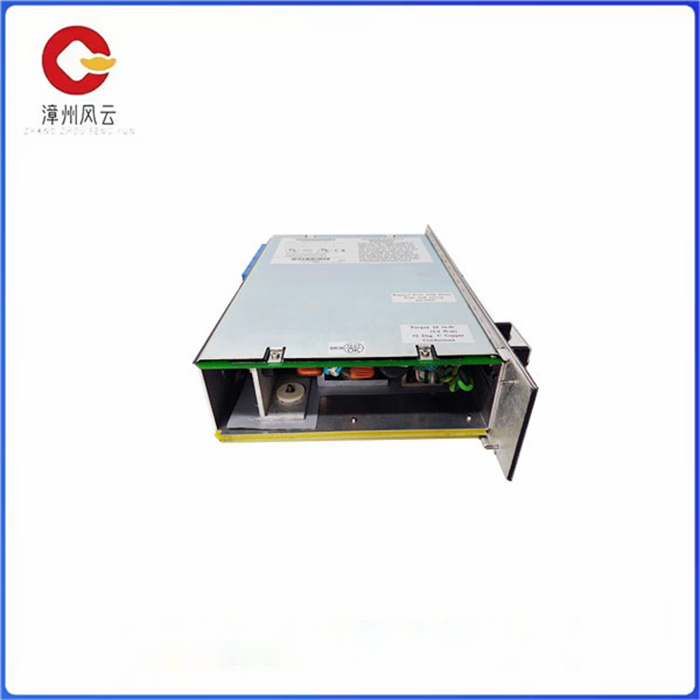

IC698PSA100是一款PACSystem RX7i电源模块，由艾默生自动化制造，以前隶属于GE智能平台(GE IP)。该电源模块安装在任何RX7i标准机架的最左侧插槽，具体来说就是插槽0。它配有螺旋式输入端子，设计用于输入电压范围为85至264 VAC(标称电压为120 / 240 VAC)，频率为47至63 Hz和100至150VDC(标称电压为125 VDC)。必须使用绝缘等级为75°C(167°F)的AWG #16 (1.3 mm2)实心或绞合铜线进行外部电源连接。对于接地连接，使用绝缘等级为75°C(167°F)的12号(3.3 mm2)铜线。GND连接的适当端接可以显著地消除或者减少系统噪声。

IC698PSA100可提供100瓦的最大输出功率，这是所有三(3)个输出端子的总功率，可提供4.875至5.25伏、0-20安、5.1 VDC的标称值；11.64至12.6伏，0-2安，标称+12伏直流电，以及-12.60至-11.64伏，0-1安，标称-12伏直流电。该电源模块的穿越时间最短为15毫秒，保持时间最短为5毫秒。它还具有主动过压和过流限制，特别是在+5v直流电压下的5.7至6.7伏过压保护；+5 VDC输出时为21A+12伏直流电输出时为2.5安，而-12伏直流电输出时为3.5安。

该电源模块的工作温度为0°C至60°C(32°F至140°F ),隔离额定值为1500 VDC。

IC698PSA100电源模块是GE公司生产的Rx7i PACsystem modern电源模块。它的额定电压为120/240伏交流电或125伏DC。电源的输入电压范围在85到264伏交流电或100到150伏DC之间。电源模块位于Rx7i系统底板最左侧的插槽或插槽0中。该模块的额定功率为125瓦。它的输出电压为5伏DC、12伏DC和-12伏DC。IC698PSA100电源模块通过使用系统背板向模块发送逻辑电平信号。电源模块在安全性和保护方面得到了增强。它具有过流、过热和过压保护功能。

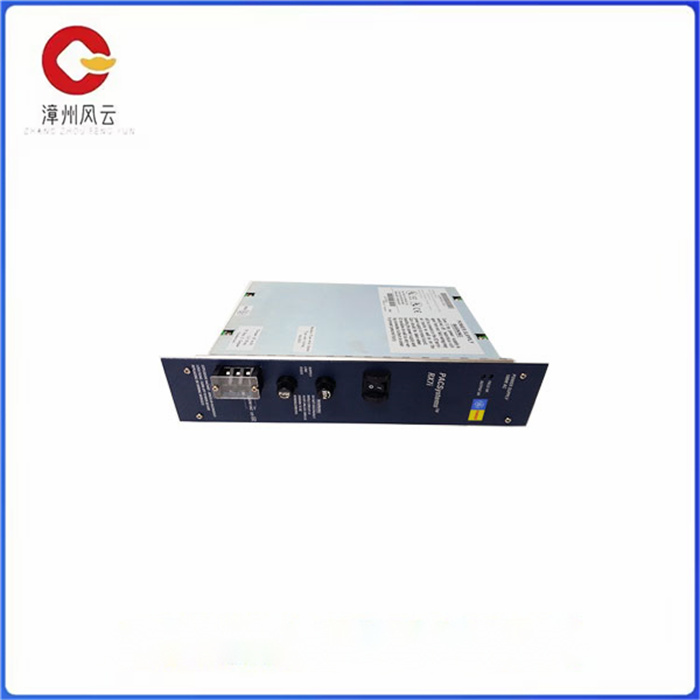

IC698PSA100电源模块配有一个开关，位于电源的前侧。它有助于使能或禁用输出通道，并且不会干扰交流线路输入。电源模块中有LED指示灯，它们提醒操作员注意不同的情况。指示灯为现场正常、输出正常和过温指示灯。IC698PSA100电源模块的最小功率因数为0.99。模块中的隔离电压为1500伏DC。在不影响DC输出的情况下，电源还提供15毫秒的穿越时间，当DC输出丢失时，电源还提供5毫秒的保持时间。IC698PSA100电源模块需要0到60摄氏度的工作温度范围。该模块已经过认证，可在1级2区环境中运行。

IC698PSA100 多功能电源模块 控制系统

The IC698PSA100 is a PACSystem RX7i power module manufactured by Emerson Automation and formerly owned by GE Intelligence Platform (GE IP). The PSU is installed in the leftmost slot of any RX7i standard rack, specifically slot 0. It is equipped with spiral input terminals and is designed for input voltage ranges from 85 to 264 VAC(nominal voltage 120/240 VAC), frequencies from 47 to 63 Hz and 100 to 150VDC(nominal voltage 125 VDC). An AWG #16 (1.3 mm2) solid or stranded copper wire with an insulation class of 75°C(167°F) must be used for external power connections. For ground connections, use a 12-gauge (3.3 mm2) copper wire with an insulation class of 75°C(167°F). Proper terminating of a GND connection can significantly eliminate or reduce system noise.

The IC698PSA100 provides a maximum output power of 100 watts, which is the total power of all three (3) output terminals, providing nominal values of 4.875 to 5.25 volts, 0-20 amps, and 5.1 VDC; 11.64 to 12.6 volts, 0-2 amps, nominal +12 volts DC, and -12.60 to -11.64 volts, 0-1 amps, nominal -12 volts DC. The power module has a minimum traverse time of 15 milliseconds and a minimum hold time of 5 milliseconds. It also has active overvoltage and overcurrent limits, especially 5.7 to 6.7 volts overvoltage protection at +5v DC voltage; The +5 VDC output is 21A+12 VDC output is 2.5 amps, while the -12 VDC output is 3.5 amps.

The power module operates from 0°C to 60°C(32°F to 140°F) and has an isolation rating of 1500 VDC.

The IC698PSA100 power module is the Rx7i PACsystem modern power module produced by GE. It is rated for 120/240 volts AC or 125 volts DC. The input voltage range of the power supply is between 85 to 264 volts AC or 100 to 150 volts DC. The power module is located in the leftmost slot or slot 0 on the Rx7i mainboard. The module has a power rating of 125 watts. It has an output voltage of 5 volts DC, 12 volts DC and -12 volts DC. The IC698PSA100 power module sends logic level signals to the module by using the system backplane. The power module has been enhanced in terms of safety and protection. It has over current, over heat and over voltage protection.

The IC698PSA100 power module is equipped with a switch located on the front side of the power supply. It helps to enable or disable the output channel and does not interfere with the AC line input. There are LED indicators in the power module, which alert the operator to different conditions. Indicators are field normal, Output normal, and overtemperature. The minimum power factor of the IC698PSA100 power module is 0.99. The isolation voltage in the module is 1500 V DC. The power supply also provides 15 ms traverse time without affecting the DC output, and 5 ms hold time when the DC output is lost. The IC698PSA100 power module requires an operating temperature range of 0 to 60 degrees Celsius. The module is certified to operate in a Level 1, Zone 2 environment.
