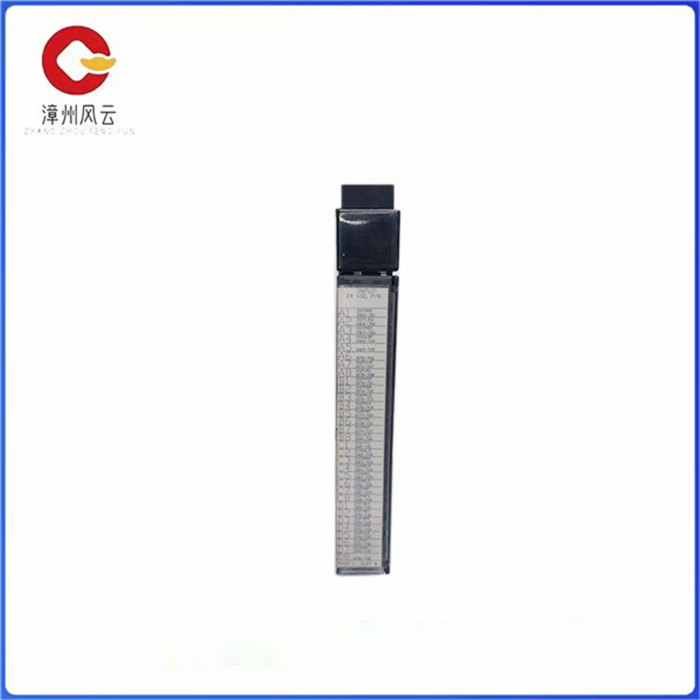

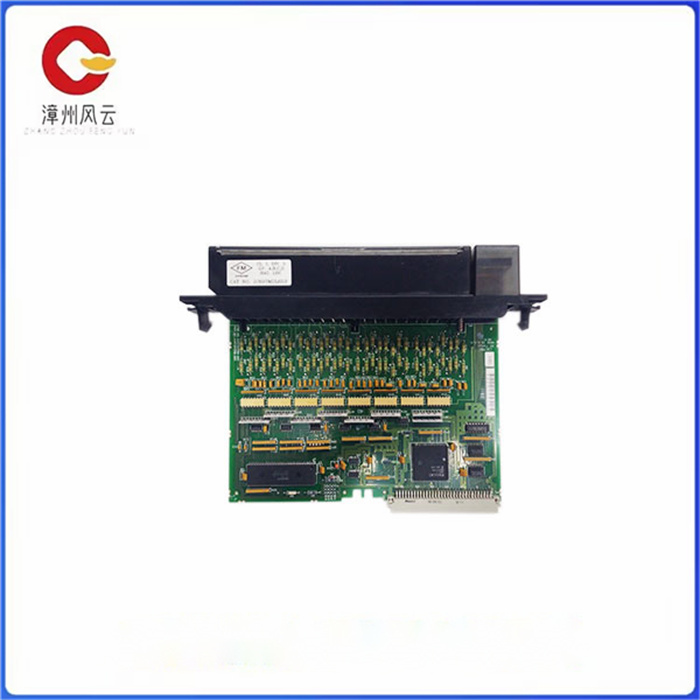

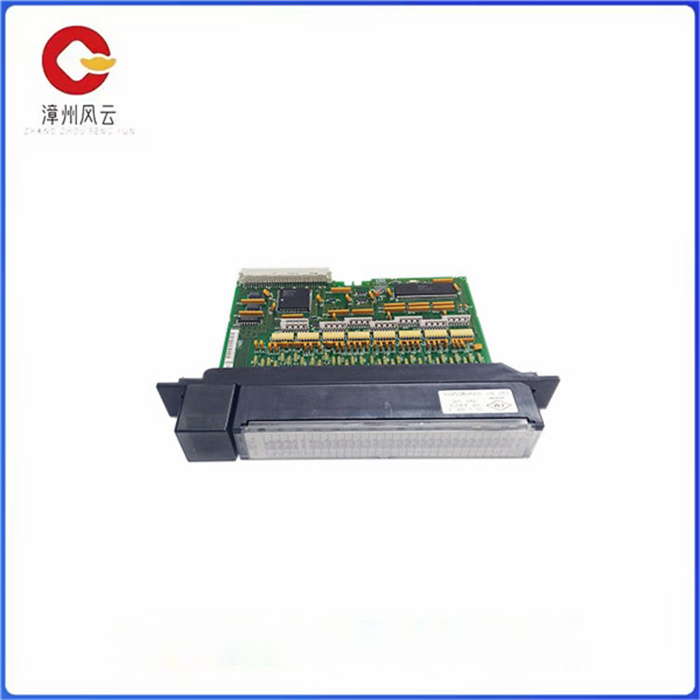

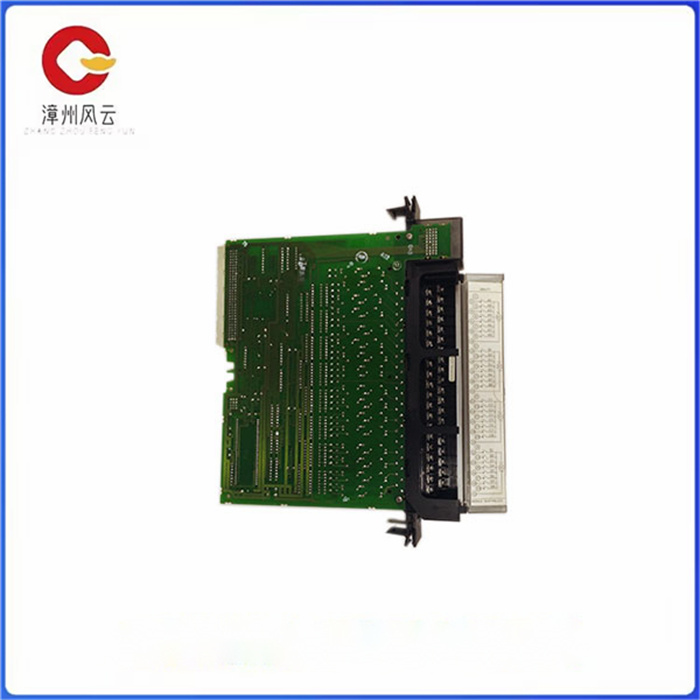

IC697MDL653 是 Serie 90-70 可编程逻辑控制器 （PLC） 系列的一部分。该模块以前由 GE Fanuc Automation 制造，但最近被 Emerson Automation 收购。它具有高密度输入通道，特别是三十二 （32） 个离散输入通道，分为四 （4） 组，每组八 （8） 个通道，提供组隔离。该模块设计用于在 -3 至 +3 VDC 的输入电压范围内工作，额定电压为 24 VDV，24 VDC 时的输入电流为 10 mA，典型输入阻抗为 2.6 KOhm。该IC697MDL653具有 13.5 V 至 30 V 和 6mA 至 15mA 的导通电压和导通电流。相反，关断状态电压和关断状态电流分别为 0 V 至 5 V 和 0 至 2mA（5V 输入时最小值为 2mA）。该模块的每个输入通道的输入延迟时间为 1 ms 或 10 ms，可通过软件进行配置。该模块从 5VDC 总线汲取电流，电流为 300 mA，并且设计符合 VME 标准 C.1。该模块与背板的单个通道隔离为 1500 V，组间隔离为 500 VDC。该IC697MDL653支持正负逻辑接线。由于每个输入组都配有专用的公共端子，因此组级别的接线配置可能有所不同。使用负逻辑时，正极线端接到公共端子，负极线将电压信号传递到输入通道。正极逻辑接线与负极接线方法相反。

IC697MDL653正/负逻辑输入模块由 GE Fanuc 制造，旨在与 90-70 系列的可编程逻辑控制器一起使用。该模块具有正负逻辑特性，如果系统需要对其接近开关、按钮和类似控制部件进行更多控制，则该模块是一个不错的选择。IC697MDL653模块具有 32 个输入点，这些输入点格式化为 4 组，每组 8 个输入。该模块具有一个可选的输入滤波器，其延迟时间为 1 毫秒或 10 毫秒。该 VME 指定的输入模块具有单个输入，如果该模块与 GE IC696 产品线中的可编程逻辑控制器结合使用，则该模块可以作为中断运行。该模块可以与其他类型的 PLC 一起使用，但某些包含的功能功能有限。

IC697MDL653模块具有顶部状态 LED 指示灯，它们提供对 PLC 侧面每个输入状态的洞察。此外，该模块支持 I/O 配置，无需使用一些常见的附件部件，例如 DIP 开关和跳线。IC697MDL653模块的 MS-DOS 配置软件是针对 Windows 95 操作系统编程的，可以以多种方式执行。IC697MDL653模块的额定电压为 24 伏直流电，隔离电压为 1500 伏。该装置的输入电流为 10 毫安，输入电压范围为 -3 至 30 伏直流。除此之外，该装置的导通电流为 6 至 15 毫安。关断状态电流为 0 至 2 毫安。导通状态电压为 13.5 至 30 伏，关断状态电压为 0 至 5 伏。

IC697MDL653 逻辑控制器 具有高密度输入通道将电压信号

The IC697MDL653 is part of the Serie 90-70 Programmable Logic Controller (PLC) family. The module was previously manufactured by GE Fanuc Automation, but was recently acquired by Emerson Automation. It has a high density of input channels, in particular thirty-two (32) discrete input channels, divided into four (4) groups of eight (8) channels each, providing group isolation. The module is designed to operate in an input voltage range of -3 to +3 VDC, with a rated voltage of 24 VDV, an input current of 10 mA at 24 VDC and a typical input impedance of 2.6 KOhm. The IC697MDL653 has an on-voltage and on-current of 13.5 V to 30 V and 6mA to 15mA. In contrast, the off state voltage and off state current are 0 V to 5V and 0 to 2mA, respectively (the minimum is 2mA for 5V input). Each input channel of the module has an input delay time of 1 ms or 10 ms and can be configured via software. The module draws current from a 5VDC bus with a current of 300 mA and is designed to conform to VME standard C.1. The isolation between the module and the backplane is 1500 V for a single channel and 500 VDC for inter-group isolation. The IC697MDL653 supports positive and negative logical connections. Because each input group is equipped with a dedicated common terminal, wiring configurations at the group level may vary. When negative logic is used, the positive end is connected to the common terminal, and the negative line passes the voltage signal to the input channel. The positive logic connection is the opposite of the negative connection method.

The IC697MDL653 positive/negative logic input module is manufactured by GE Fanuc and is designed to be used with the 90-70 series of programmable logic controllers. This module has positive and negative logic characteristics and is a good choice if the system needs more control over its proximity switches, buttons, and similar control components. The IC697MDL653 module has 32 input points formatted into 4 groups of 8 inputs each. The module has an optional input filter with a delay time of 1 millisecond or 10 milliseconds. The input module specified by this VME has a single input that can be run as an interrupt if the module is used in conjunction with a programmable logic controller in the GE IC696 product line. The module can be used with other types of PLCS, but some of the included features have limited functionality.

The IC697MDL653 module features top status LED indicators that provide insight into the status of each input on the side of the PLC. In addition, the module supports I/O configuration without the use of some common accessory parts, such as DIP switches and jumpers. The MS-DOS configuration software for the IC697MDL653 module is programmed for the Windows 95 operating system and can be executed in a variety of ways. The IC697MDL653 module has a rated voltage of 24 volts DC and an isolation voltage of 1500 volts. The device has an input current of 10 MA and an input voltage range of -3 to 30 volts DC. In addition, the conduction current of the device is 6 to 15 ma. The off state current is 0 to 2 MA. The on-state voltage is 13.5 to 30 volts, and the off state voltage is 0 to 5 volts.
