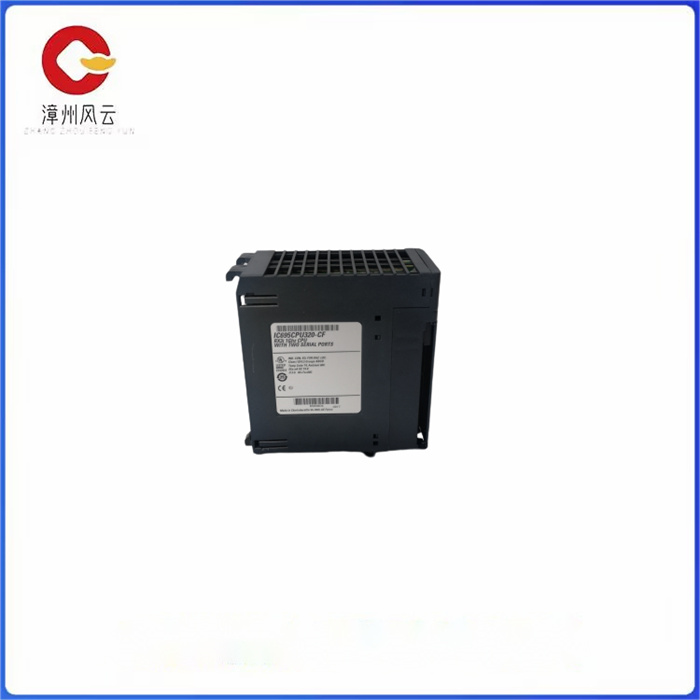

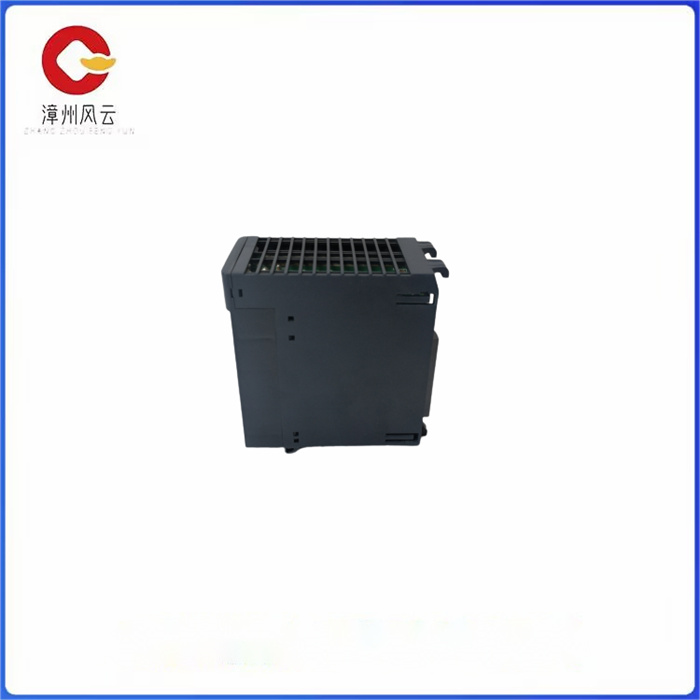

IC695CPU320-CF 中央处理器 GE 一款可编程控制器

IC695CPU320-CF 中央处理器 GE 一款可编程控制器

IC695CPU320是GE Fanuc / Emerson Automation的控制器模块。该模块属于 PACSystems RX3i 控制器平台。该控制器可用于工业机器和过程的有效控制。它通过外围组件互连 （PCI） 插槽实现高速数据传输，并支持用于迁移 90-30 系列 I/O 系统的串行背板。

该IC695CPU320内置两 （2） 个通信端口，支持 RS232 和 RS485 通信标准。这些通信端口使用九十系列协议 （SNP） 从模式与编程工作站、人机界面 （HMI）、监控和数据采集 （SCADA） 系统进行通信。该控制器可以安装在目录号为 IC695CHS012 的 Rx3i 12 插槽通用背板和目录号为 IC695CHS016 的 Rx3i 16 插槽通用背板中。

该IC695CPU320具有内部赛扬M处理器，处理速度为1GHz。它包含 65 MB 的用户存储器，其内容由目录号分别为 IC695ACC302 和 IC693ACC302 的锂智能电池系列 90-30 辅助电池模块保留。此外，它还具有 64 MB 的非易失性闪存用户存储器。此外，这些用户存储器支持重新分配自定义大小的数据和程序存储器。它最多支持 512 个程序块，其中单个块的最大大小为 128 KB。

该IC695CPU320支持大多数 90-30 系列 PLC I/O 模块。此功能提供了灵活性，在将传统 90-30 系列升级到现代 PACSystems RX3i 控制器平台时特别有用和有益。这允许分阶段迁移，其中首先迁移现有 90-30 个 PLC 的控制器和逻辑，然后迁移 I/O 模块。PACSystem RX3i 支持固件修改。

可以为 IC695CPU320 模块订购各种配件，包括 RS-232 电缆（如 IC200CBL001 电缆）、智能锂电池（如 IC695ACC302 电池）、GE 系列 90-30 辅助电池模块（如 IC693ACC302 模块）、额定电压为 120 至 240 伏交流电、125 伏直流电和 40 瓦的标准电源。

GE Fanuc IC695CPU320模块能够在 0.047 毫秒内执行 1000 条布尔指令。该模块支持 512 个程序块。程序块的最大大小为 128 KB。模块上提供了两个嵌入式通信端口，分别是 RS-485 和 RS-232 端口。支持的串行协议包括 SNP、串行 I/O 和 Modbus RTU 从站协议。

IC695CPU320模块使用SNP从站协议，通过串口与编程器和HMI进行通信。该模块通过双背板总线与智能选项模块和 I/O 通信。环境规格包括 0 至 60 摄氏度的工作温度范围。IC695CPU320模块支持串行背板总线和 RX3i 背板总线，它从背板汲取 1 安培 3.3 伏直流电的电流，从背板汲取 1.2 安培 5 伏直流电的电流。前面板上有六个 LED，用于更新模块状态。

IC695CPU320-CF 中央处理器 GE 一款可编程控制器

The IC695CPU320 is a controller module of GE Fanuc/Emerson Automation. The module belongs to the PACSystems RX3i controller platform. The controller can be used for effective control of industrial machines and processes. It enables high-speed data transfer through Peripheral Component interconnection (PCI) slots and supports serial backplanes for migrating 90-30 series I/O systems.

The IC695CPU320 has two (2) built-in communication ports that support RS232 and RS485 communication standards. These communication ports use the Ninety Series Protocol (SNP) to communicate from mode with programming workstations, human machine interfaces (HMI), and supervisory control and Data acquisition (SCADA) systems. The controller can be installed in the Rx3i 12 backplane of slot IC695CHS012 or the Rx3i 16 backplane of slot IC695CHS016.

The IC695CPU320 has an internal Celeron M processor that processes at 1GHz. It contains 65 MB of user memory, the contents of which are reserved by the Lithium Smart Battery series 90-30 auxiliary battery modules with catalog numbers IC695ACC302 and IC693ACC302 respectively. In addition, it has 64 MB of non-volatile flash user memory. In addition, these user stores support the reallocation of custom sized data and program storage. It supports up to 512 blocks, where the maximum size of a single block is 128 KB.

The IC695CPU320 supports most of the 90-30 series PLC I/O modules. This feature provides flexibility and is particularly useful and beneficial when upgrading the legacy 90-30 series to a modern PACSystems RX3i controller platform. This allows for a phased migration, in which the controllers and logic of the existing 90-30 PLCS are first migrated, followed by the I/O modules. PACSystem RX3i supports firmware modification.

Various accessories can be ordered for the IC695CPU320 module, Includes RS-232 cable (such as IC200CBL001 cable), smart lithium battery (such as IC695ACC302 battery), GE series 90-30 auxiliary battery module (such as IC693ACC302 module), rated voltage 120 to 240 volts AC, 125 Volt direct current and standard power supply of 40 watts.

The GE Fanuc IC695CPU320 module is capable of executing 1000 Boolean instructions in 0.047 milliseconds. The module supports 512 blocks. The maximum block size is 128 KB. Two embedded communication ports are provided on the module, namely RS-485 and RS-232 ports. Supported serial protocols include SNP, Serial I/O, and Modbus RTU slave protocols.

The IC695CPU320 module uses the SNP slave protocol to communicate with the programmer and HMI via a serial port. The module communicates with the Smart Options module and I/O via a dual backplane bus. Environmental specifications include an operating temperature range of 0 to 60 degrees Celsius. The IC695CPU320 module supports both the serial backplane bus and the RX3i backplane bus, which draws 1 amp of 3.3 volts DC from the backplane and 1.2 amp of 5 volts DC from the backplane. There are six leds on the front panel for updating module status.
