IC693PWR322F 电源模块主要功能为其他系统和模块提供电源

IC693PWR322F 电源模块主要功能为其他系统和模块提供电源

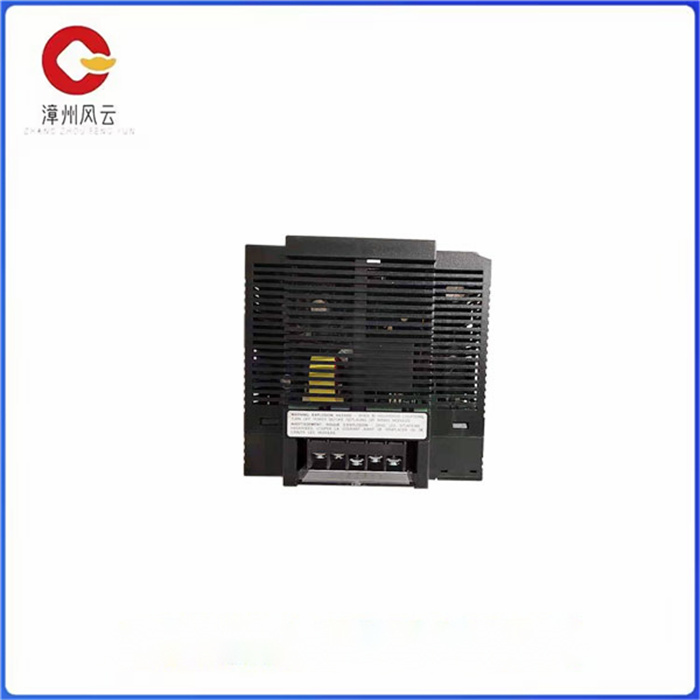

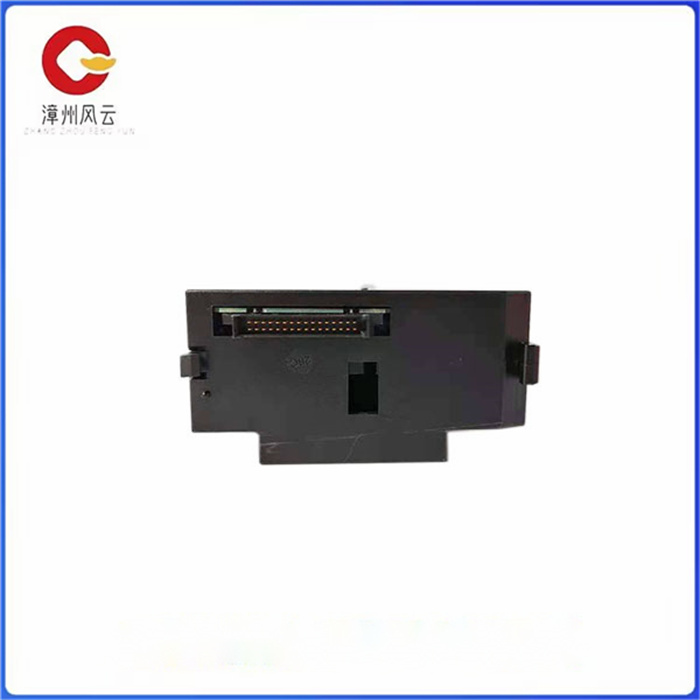

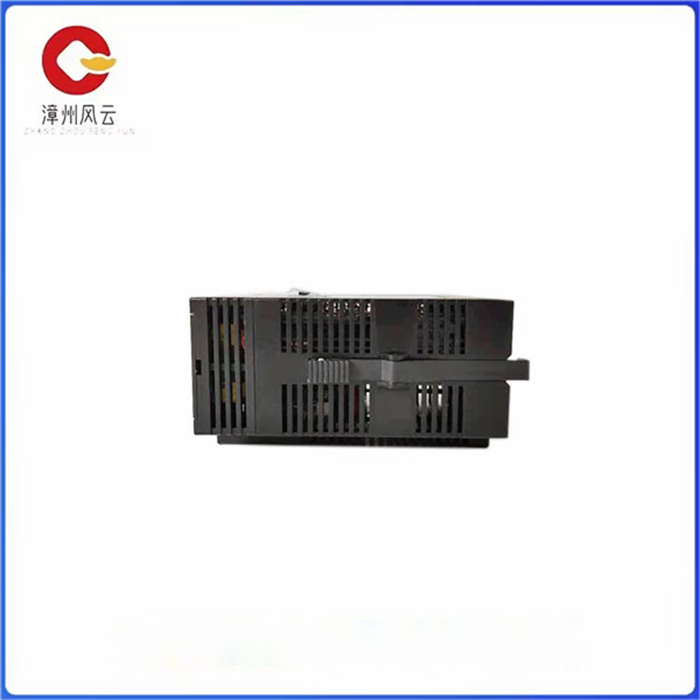

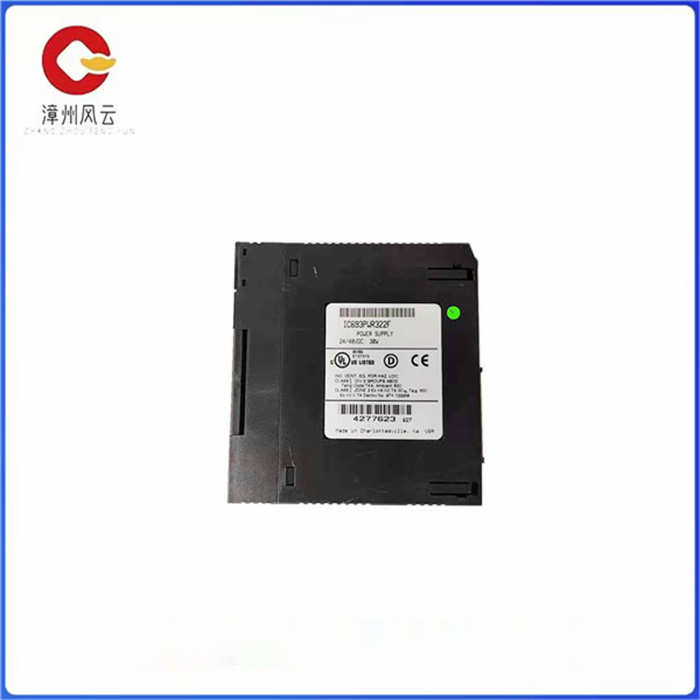

GE Fanuc IC693PWR322 是标准电源。此电源是 30 瓦电源，需要 24 至 48 VDC 的输入电源电压。该电源有三 （3） 个输出，例如 +5VDC;+24VDC 隔离和 +24VDC 继电器输出。

每个电源输出都有特定的功能。+5VDC 输出用于背板电源，而 +24 VDC 继电器电源用于为 90-30 系列继电器模块上的电路提供输出电源。连接到 90-30 背板的一些模块使用 +24VDC 隔离，并为 24VDC 90-30 输入模块提供外部电源。

IC693PWR322 电源具有四 （4） 个状态指示灯，例如 PWR LED、OK LED、RUN LED 和 BATT LED。它还具有一 （1） 个 RS485 通信端口，这是一个 9 针 sub-D 连接器。该端口允许连接编程工作站、GE Fanuc 手持编程设备和其他与 RS485 通信标准兼容的设备。

电源模块的过压保护限值为 6.4 至 7 V（5VDC 输出）和 4 A 过流保护（5VDC 输出的最大值）。该标准电源的保持时间为 14 ms，IC693PWR322

标准电源设计用于承受最大电流值为 4A 的浪涌电流，持续 100 ms。它的输入功率要求为 50 瓦，在满载使用期间最大。该电源还承载RAM电池。此 ram bettery 用于保留 RAM 内容。此电池可以更换为IC693ACC301。

IC693PWR322模块带有一个输入过压保护装置，该器件在内部连接到端子板的引脚 4。引脚通常使用跳线连接到引脚 3。IC693PWR322 模块带有一个 15 针 D 型母连接器，可以使用电源前面板上的铰链门轻松访问。它还提供了一种与PLC串行端口的通信方式，可用于与计算机或手持编程器设备连接。IC693PWR322模块的峰值浪涌电流为 4 安培，最大持续时间为 100 毫秒。电源单元的穿越时间最长为 10 毫秒。该装置的保持时间为 14 毫秒。在安装过程中，模块应与输入电源完全断开，以免造成电气损坏。

IC693PWR322F 电源模块主要功能为其他系统和模块提供电源

The GE Fanuc IC693PWR322 is a standard power supply. This power supply is a 30 watt power supply and requires an input power supply voltage of 24 to 48 VDC. The power supply has three (3) outputs, e.g. +5VDC; +24VDC isolation and +24VDC relay output.

Each power output has a specific function. The +5VDC output is used for the backplane power supply, while the +24 VDC relay power supply is used to provide the output power to the circuits on the 90-30 series relay modules. Some modules connected to the 90-30 backplane use +24VDC isolation and provide external power to the 24VDC 90-30 input module.

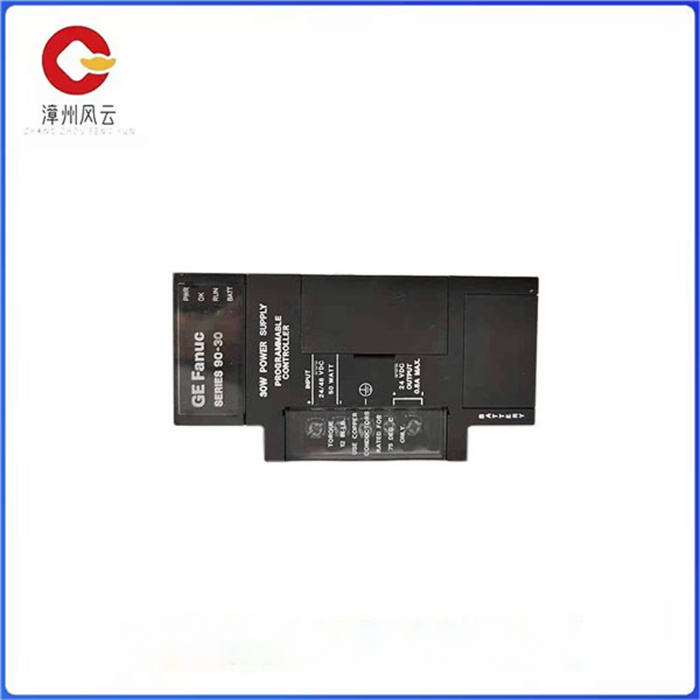

The IC693PWR322 power supply has four (4) status indicators, such as the PWR LED, OK LED, RUN LED and BATT LED. It also has one (1) RS485 communication port, which is a 9-pin sub-D connector. This port allows the connection of programming workstations, GE Fanuc handheld programming devices, and other devices compatible with the RS485 communications standard.

The power module overvoltage protection limits are 6.4 to 7 V (5VDC output) and 4 A overvoltage protection (5VDC output maximum). The standard power supply has a hold time of 14 ms, IC693PWR322

The standard power supply is designed to withstand an inrush current with a maximum current value of 4A, lasting 100 ms. Its input power is required to be 50 watts, maximum during full load use. The power supply also carries RAM batteries. This ram battery is used to retain the RAM contents. This battery can be replaced with an IC693ACC301.

The IC693PWR322 module comes with an input overvoltage protection device that is internally connected to pin 4 of the terminal board. Pins are usually connected to pin 3 using a jumper. The IC693PWR322 module comes with a 15-pin type D female connector that can be easily accessed using a hinged door on the power supply front panel. It also provides a means of communication with a PLC serial port, which can be used to connect to a computer or handheld programmer device. The IC693PWR322 module has a peak surge current of 4 amps and a maximum duration of 100 milliseconds. The power unit's traverse time is up to 10 milliseconds. The device has a holding time of 14 milliseconds. During installation, the module must be completely disconnected from the input power supply to avoid electrical damage.
