IC693MDL730 I/A输出模块与90-30系列配合为负载提供电流

IC693MDL730 I/A输出模块与90-30系列配合为负载提供电流

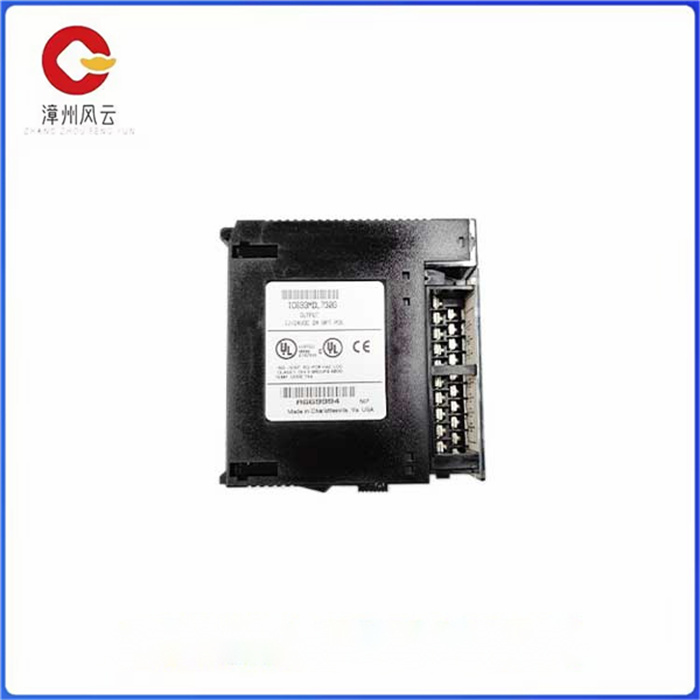

该IC693MDL730是 GE Fanuc 的 90-30 系列可编程逻辑控制器 （PLC） 产品系列中的正逻辑输出模块，现在隶属于艾默生自动化。该模块在一组中具有八 （8） 个离散输出通道，提供 12-24 VDC 的输出电压范围，具有 + 20%、-15% 纹波。每个通道提供每点 2 安培的输出电流;2 安培每个保险丝在 60 摄氏度;4 摄氏度时每个保险丝 50 安培。该IC693MDL730在励磁侧和逻辑侧之间具有高达 1500 伏的隔离电压。输出通道的额定浪涌电流为 9.4 安培，持续 10 ms;最大输出电压降为 12 伏;最大关断状态泄漏电流为1 mA，每次转换的典型导通和关断响应时间为2ms。

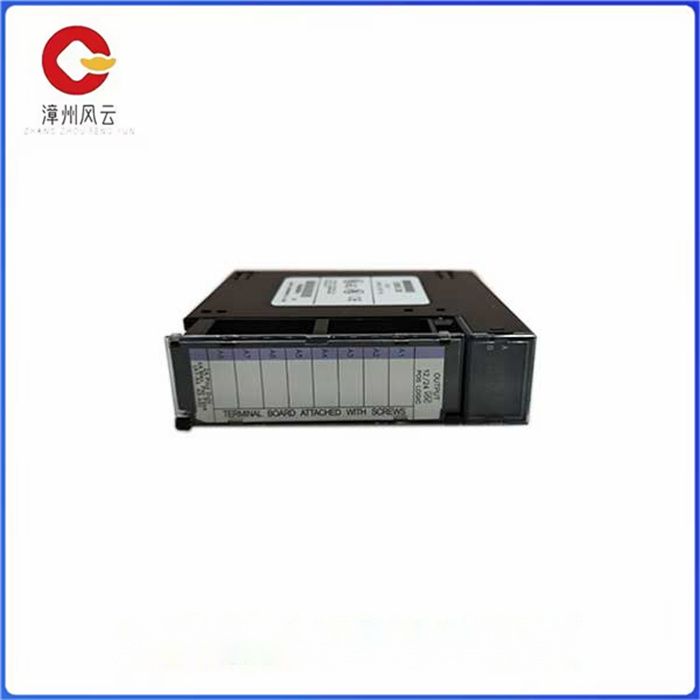

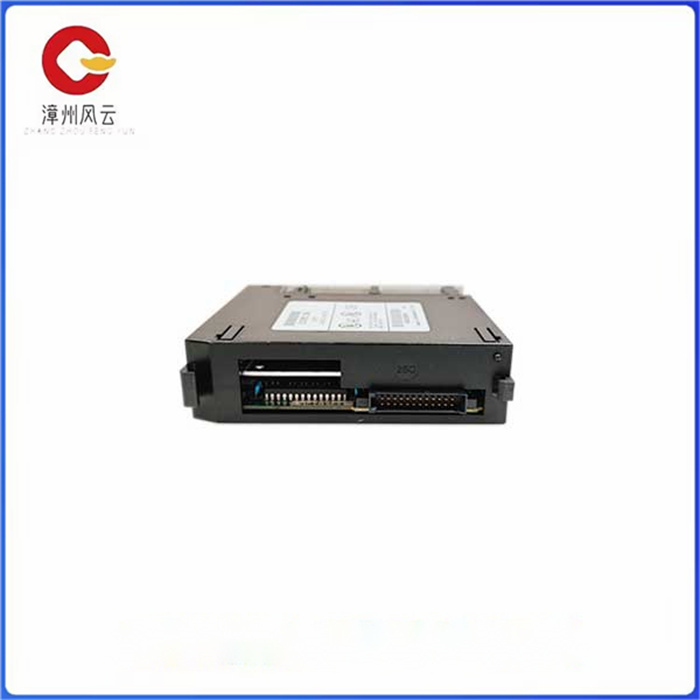

该模块占用 90-30 基板的单个插槽，并与 90-30 系列五 （5） 或十 （10） 插槽基板的任何 I/O 插槽兼容。当所有输出通电时，它的电流消耗为 55 mA，由位于背板上的 5 VDC 总线供电。该IC693MDL730兼容各种电气负载，特别是电机启动器、螺线管和指示器。必须将外部电源连接到模块才能提供工作电源。状态 LED 指示灯安装在模块的前面板上，其中包括熔断器指示灯、模块故障指示灯和八 （8） 个通道指示灯，分别分配给每个输出通道，描述每个输出点的运行状态。该模块配有一个拆卸端子板，以简化维护。

IC693MDL730 PLC 模块具有 12 至 24 伏直流电压额定值，具有正逻辑和 2 安培输出电流。该组件具有直流电源，并带有 8 个点。该装置每点具有 2 安培的负载电流，而响应时间的额定值为 2 毫秒开启和 2 毫秒关闭。输出类型为晶体管输出，模块自带正极性。连接器类型是带有 20 个螺钉的接线端子，这些螺钉随模块一起提供。

IC693MDL730 I/A输出模块与90-30系列配合为负载提供电流

The IC693MDL730 is a positive logic output module in GE Fanuc's Series 90-30 programmable logic controller (PLC) product family, now part of Emerson Automation. The module has eight (8) discrete output channels in a set, providing an output voltage range of 12-24 VDC with + 20%, -15% ripple. Each channel provides an output current of 2 amps per point; 2 amps per fuse at 60 degrees Celsius; 50 amps per fuse at 4 degrees Celsius. The IC693MDL730 has an isolation voltage of up to 1500 volts between the excitation side and the logic side. The output channel has a rated surge current of 9.4 amps for 10 ms; The maximum output voltage drop is 12 volts; The maximum off state leakage current is 1 mA, and the typical on and off response time for each transition is 2ms.

The module occupies a single slot on a 90-30 substrate and is compatible with any I/O slot on a 90-30 series five (5) or ten (10) slot substrate. When all outputs are energized, its current consumption is 55 mA, powered by a 5 VDC bus located on the backplane. The IC693MDL730 is compatible with a wide range of electrical loads, especially motor starters, solenids and indicators. An external power supply must be connected to the module to provide a working power supply. The status LED indicator is installed on the front panel of the module and includes a fuse indicator, a module failure indicator, and eight (8) channel indicators assigned to each output channel, describing the operating status of each output point. The module comes with a removable terminal board to simplify maintenance.

The IC693MDL730 PLC module has a 12 to 24 volt DC voltage rating with positive logic and 2 amp output current. The component has a DC power supply and comes with 8 points. The device has a load current of 2 amps per point, while response times are rated at 2 ms on and 2 ms off. The output type is transistor output, and the module has its own positive polarity. The connector type is a terminal with 20 screws, which are supplied with the module.
