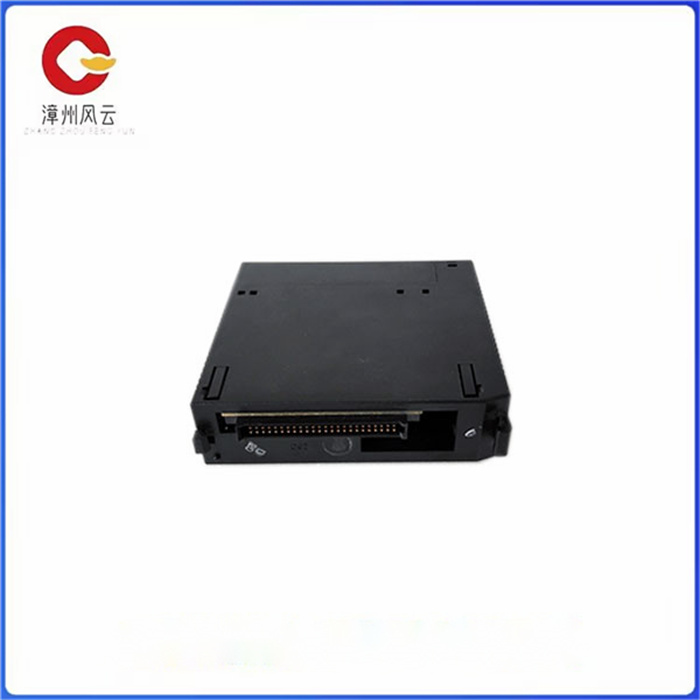

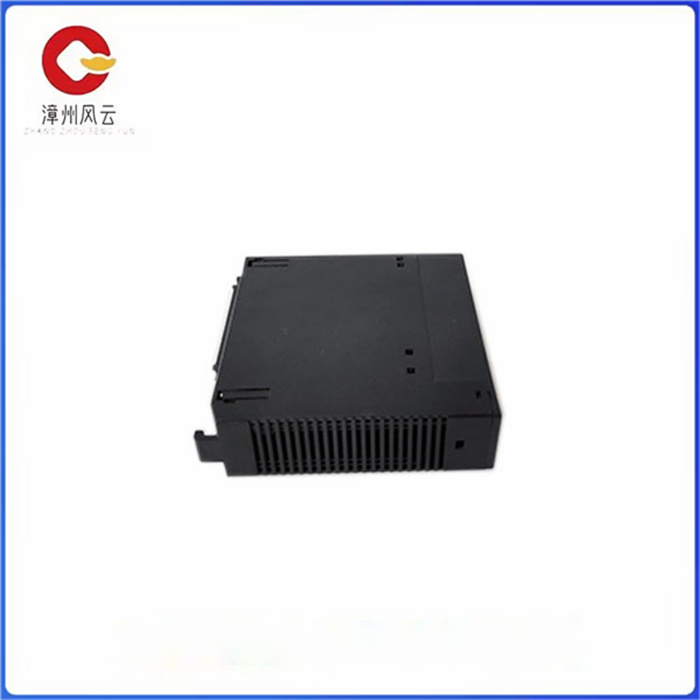

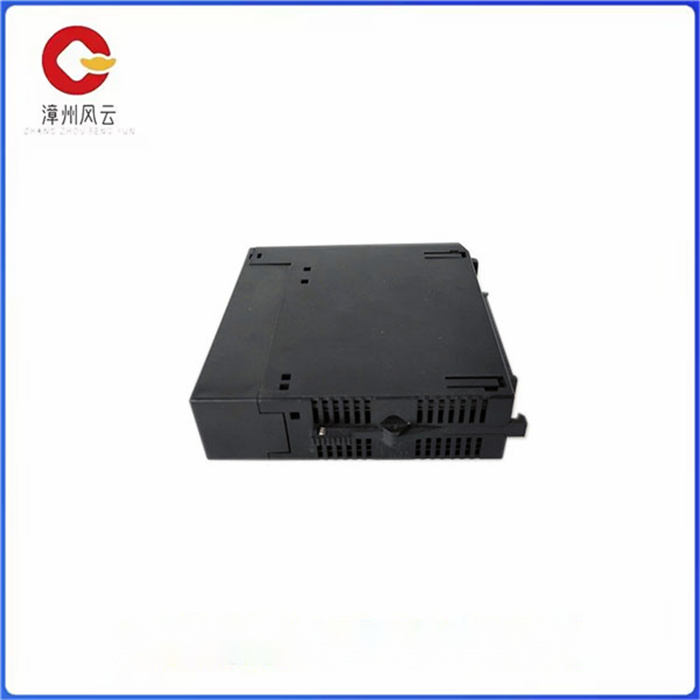

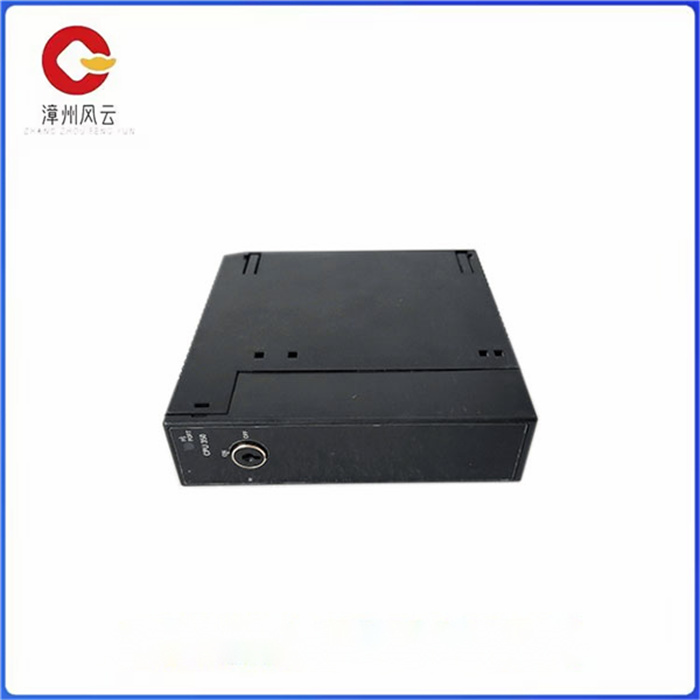

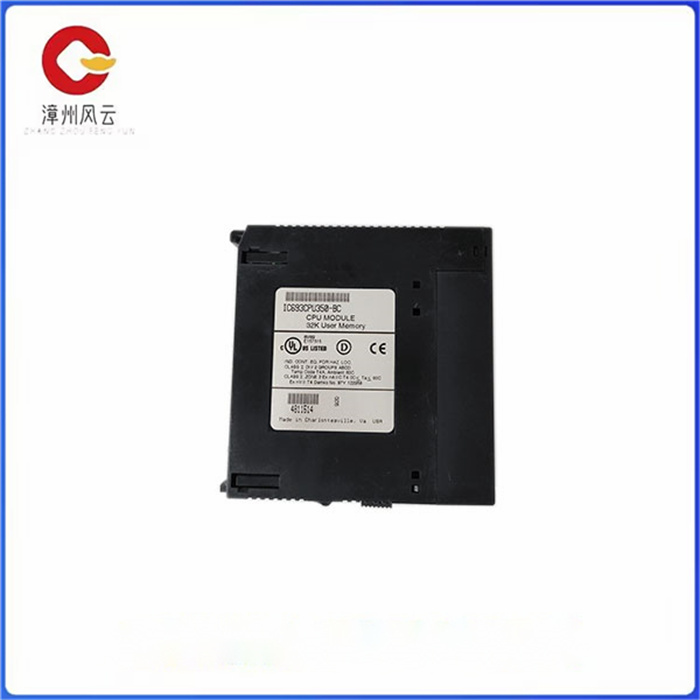

IC693CPU350是GE Fanuc 90-30系列控制器。该控制器是模块化控制系统的一部分，具有单插槽宽模块，能够控制多达八 （8） 个底板，包括安装 CPU 的本地底板。

该IC693CPU350设计有 32K 字节的不可配置用户内存。多达 2048 个离散输入、2048 个离散输出、2048 个模拟输入字和 512 个模拟输出字。这种 I/O 计数密度使该控制器有资格安装在大中型应用中。

IC693CPU350没有通信端口。该控制器利用安装在电源中的通信端口，其RS485通信接口，允许连接到编程工作站，手持编程器（HHP）和能够通过RS485通信标准交换数据的设备。此端口支持 SNP/SNP-X 从站协议。

IC693CPU350使用多种选项进行配置。可以使用 LogicMaster90、Control、VersaPro 和 CIMPLICITY Machine Edition Logic Developer 应用软件应用程序进行配置。此外，传统的手持式编程器 （HHP） 可用于将程序写入此控制器。

该IC693CPU350有一个内部处理器，即 80386EX，布尔触点的典型扫描速率为每 1K 逻辑 0.22 毫秒，处理速度为 25 MHz。该控制器支持覆盖功能、通过周期子程序功能中断、PCM/CCM 兼容性和浮点数学。安装IC693CPU350支持的附加通信模块的可选通信协议包括以太网、FIP、Profibus、GBC、GCM、GCM+ 选件模块。

IC693CPU350 CPU 是单插槽 CPU 模块。每个系统有 8 个底板，包括 CPU 底板和 7 个扩展或远程底板。IC693CPU350 CPU 需要 670 毫安的电流和 5 伏直流电压输入。CPU 模块的典型扫描速率为每 1 KB 逻辑 0.22 毫秒。

最大用户程序内存为 32 KB。离散输入点的容量为 2048 个字，离散输出点的容量为 2048 个字。离散全局存储器为 1280 位。寄存器存储器为9999字。模拟输入和模拟输出的额定值分别为 2048 字和 512 字。系统寄存器为 28 个字。IC693CPU350 CPU 支持 2000 多个定时器和计数器。CPU 模块也支持移位寄存器。IC693CPU350 CPU 上有一个集成串行端口，支持 SNP/SNPX 从站协议。串行端口需要一个 PCM 模块来支持 RTU 主站，还需要一个 CMM 模块来支持 SNP/SNP-X 主站、RTU 从站协议或 CCM。闪存和RAM内存在IC693CPU350 CPU中均可用。IC693CPU350 CPU 还支持浮点数学运算。IC693CPU350 CPU 的工作温度范围为 0 至 60 摄氏度。

IC693CPU350-BC 该控制器利用安装在电源中的通信端口

The IC693CPU350 is a GE Fanuc 90-30 series controller. The controller is part of a modular control system with a single-slot wide module capable of controlling up to eight (8) backboards, including the local backboard on which the CPU is mounted.

The IC693CPU350 is designed with 32K bytes of non-configurable user memory. Up to 2048 discrete inputs, 2048 discrete outputs, 2048 analog input words and 512 analog output words. This I/O count density makes the controller eligible for installation in medium to large sized applications.

The IC693CPU350 does not have a communication port. The controller utilizes a communication port installed in the power supply with its RS485 communication interface, allowing connection to programming workstations, handheld programmers (HHP) and devices capable of exchanging data over the RS485 communication standard. This port supports the SNP/SNP-X slave protocol.

The IC693CPU350 is configured with a variety of options. This can be configured using LogicMaster90, Control, VersaPro, and CIMPLICITY Machine Edition Logic Developer application software applications. In addition, a traditional handheld programmer (HHP) can be used to write programs to this controller.

The IC693CPU350 has an internal processor, 80386EX, with a typical sweep rate of 0.22 milliseconds per 1K logic for Boolean contacts and a processing speed of 25 MHz. The controller supports overlay functionality, interrupts through periodic subroutines, PCM/CCM compatibility, and floating-point math. Optional communication protocols for installing additional communication modules supported by the IC693CPU350 include Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules.

The IC693CPU350 CPU is a single-slot CPU module. Each system has eight backboards, including CPU backboards and seven extension or remote backboards. The IC693CPU350 CPU requires 670 mah of current and 5 volts DC input. The typical scan rate for CPU modules is 0.22 milliseconds per 1 KB of logic.

The maximum user program memory is 32 KB. The capacity of the discrete input point is 2048 words, and the capacity of the discrete output point is 2048 words. The discrete global memory is 1280 bits. Register memory is 9999 words. Analog inputs and outputs are rated at 2048 words and 512 words, respectively. The system register is 28 words. The IC693CPU350 CPU supports more than 2000 timers and counters. The CPU module also supports shift registers. The IC693CPU350 CPU has an integrated serial port that supports SNP/SNPX slave station protocols. The serial port requires a PCM module to support the RTU master, and a CMM module to support the SNP/SNP-X master, RTU slave protocol, or CCM. Both flash memory and RAM memory are available in the IC693CPU350 CPU. The IC693CPU350 CPU also supports floating point math. The operating temperature range of the IC693CPU350 CPU is 0 to 60 degrees Celsius.
