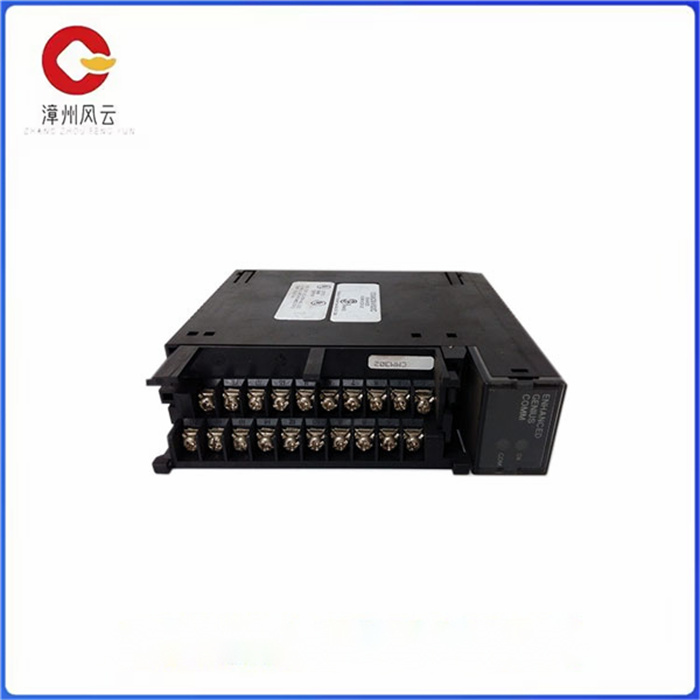

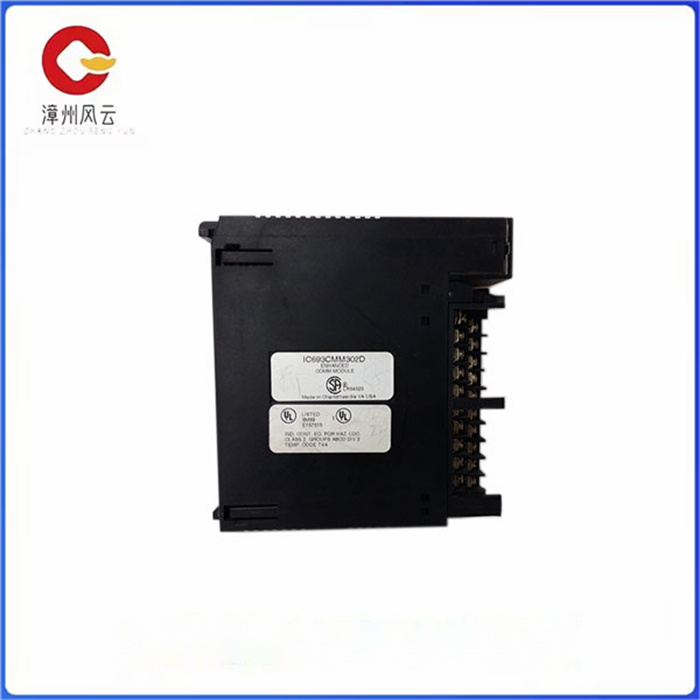

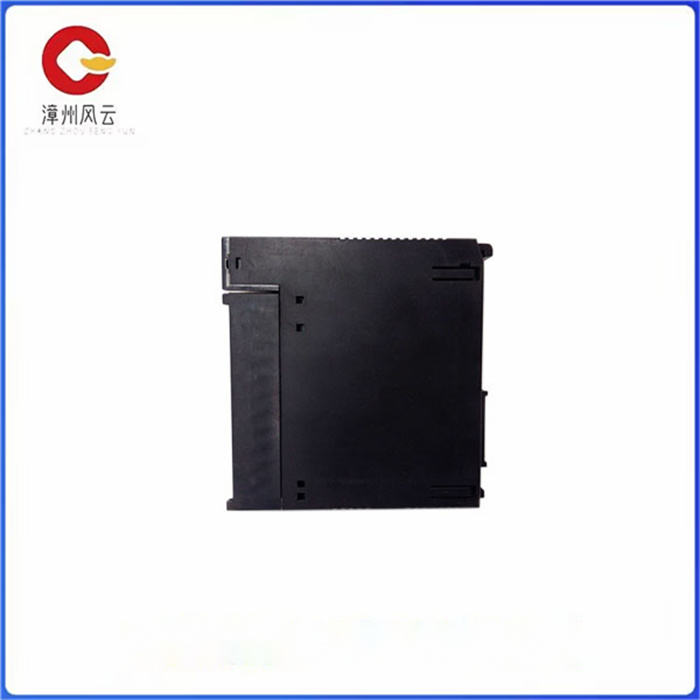

IC693CMM302是艾默生自动化 90-30 系列可编程逻辑控制器 （PLC） 系列的 Genius 通信模块，前身为 GE Fanuc automation。该模块是一个单插槽宽度模块，提供 Genius 协议连接，能够与多达 31 个设备通信，每个控制器最多可与 62 个设备进行通信，因为 90-30 系列系统允许为每个控制器配置多达两 （2） 个IC693CMM302。该IC693CMM302允许每IC693CMM302发送 128 字节和接收 128 字节的全局数据，并支持 PLC 寄存器，例如全局寄存器 （%G）、离散输入 （%I）、离散输出 （%Q）、模拟输入 （%AI）、模拟输出 （%AQ） 和寄存器存储器 （%R）。它支持基于软件的诊断，例如状态位、向 90-70 系列 PLC 报告故障。 该模块的环境额定值包括 0 oC 至 +60 oC（+32 oF 至 +140 oF）工作温度;储存温度为 –25 oC 至 +70 oC（– 13 oF 至 +158 oF）;湿度为 5% 至 95%（非冷凝），而机械额定值包括 0.2 英寸位移、5Hz 至 10Hz 和 1 G 10Hz 至 200Hz 工作振动和 5 G、10 毫秒持续时间的工作冲击。除了全球数据交换外，该IC693CMM302还允许通过个人或工业计算机进行数据监控，使用 I/O 模块监控数据、通过 Genius 总线进行设备通信以及 I/O 仿真。该IC693CMM302在 5VDC 时的背板功耗为 <300 mA。除了 90-30 系列 PLC 外，它还可以与 90-70 系列、六系列 PLC 以及 Genius 手持式监视器 （HHM） 一起使用，进行本地配置。

90-30 系列IC693CMM302通信模块由 GE Fanuc 设计和制造，是 GCM+ 设备，也称为增强型 Genius 通信模块。IC693CMM302增强型 Genius 通信模块可以在多达 32 台设备之间与全局数据进行通信。这些设备是 GE 系列 90-30 PLC 和 31 个连接到天才总线的其他设备。建议将IC693CMM302增强型 Genius 通信模块安装在主机 PLC 系统的 CPU 底板上，以实现最高效的运行，但也可以安装在同一系统的远程底板或扩展底板上。但是，增强型 Genius 通信模块不能安装在具有常规 Genius 通信模块或 GCM 的 PLC 中。

多个增强型 Genius 通信模块（如 IC693CMM302 模块）可以安装在单个 PLC 系统中，并且每个增强型 Genius 通信模块都有自己的 Genius 总线，这意味着每个模块都可以一次连接多达 31 个附加设备并与之通信。例如，具有 2 个增强型 Genius 通信模块的 90-30 GE 系列 PLC 可以同时与多达 62 个附加设备进行通信。IC693CMM302增强型 Genius 通信模块主要用于交换全局数据，但它也可以处理与工业或个人计算机的数据监控、总线设备之间的点对点通信和主从通信，以及来自 Genius I/O 模块的数据监控（请注意，通信模块无法控制这些 I/O 模块）。

IC693CMM302通信模块具有监测和诊断功能用于检测通信问题

The IC693CMM302 is the Genius communication module of Emerson automation's Series 90-30 Programmable Logic controller (PLC) family, formerly known as GE Fanuc automation. The module is a single slot width module that provides Genius protocol connectivity and is capable of communicating with up to 31 devices, with up to 62 devices per controller, as the 90-30 series system allows up to two (2) IC693CMM302 to be configured for each controller. The IC693CMM302 allows 128 bytes of global data to be sent and 128 bytes to be received per IC693CMM302 and supports PLC registers. Examples include global register (%G), discrete input (%I), discrete output (%Q), analog input (%AI), analog output (%AQ), and register memory (%R). It supports software-based diagnostics, such as status bits, reporting faults to 90-70 series PLCS. The module's environmental rating includes operating temperatures from 0 oC to +60 oC (+32 oF to +140 oF); The storage temperature is -25 oC to +70 oC (-13 oF to +158 oF); Humidity ranges from 5% to 95% (non-condensing), while mechanical ratings include 0.2 inch displacement, 5Hz to 10Hz and 1 G operating vibration from 10Hz to 200Hz, and operating shocks of 5 G and 10 ms duration. In addition to global data exchange, the IC693CMM302 allows data monitoring via personal or industrial computers, data monitoring using I/O modules, device communication via the Genius bus, and I/O simulation. The IC693CMM302 has a backplane power consumption of <300 mA at 5VDC. In addition to the 90-30 series PLCS, it can also be used with the 90-70 Series, the six-series PLCS, and the Genius Handheld Monitor (HHM) for local configuration.

The 90-30 Series IC693CMM302 communication module, designed and manufactured by GE Fanuc, is a GCM+ device, also known as the Enhanced Genius communication module. The IC693CMM302 Enhanced Genius communication module can communicate with global data between up to 32 devices. These devices are GE series 90-30 PLCS and 31 other devices connected to the Genius Bus. The IC693CMM302 Enhanced Genius communication module is recommended to be installed on the CPU backboard of the host PLC system for the most efficient operation, but it can also be installed on a remote or extended backboard of the same system. However, the enhanced Genius communication module cannot be installed in a PLC with a regular Genius communication module or GCM.

Multiple enhanced Genius communication modules, such as the IC693CMM302 module, can be installed in a single PLC system, and each Enhanced Genius communication module has its own Genius bus, which means that each module can connect and communicate with up to 31 additional devices at a time. For example, a 90-30 GE series PLC with 2 enhanced Genius communication modules can communicate with up to 62 additional devices simultaneously. The IC693CMM302 enhanced Genius communication module is primarily used to exchange global data, but it can also handle data monitoring with industrial or personal computers, point-to-point and master-slave communications between bus devices, and data monitoring from Genius I/O modules (please note, The communication module cannot control these I/O modules).
