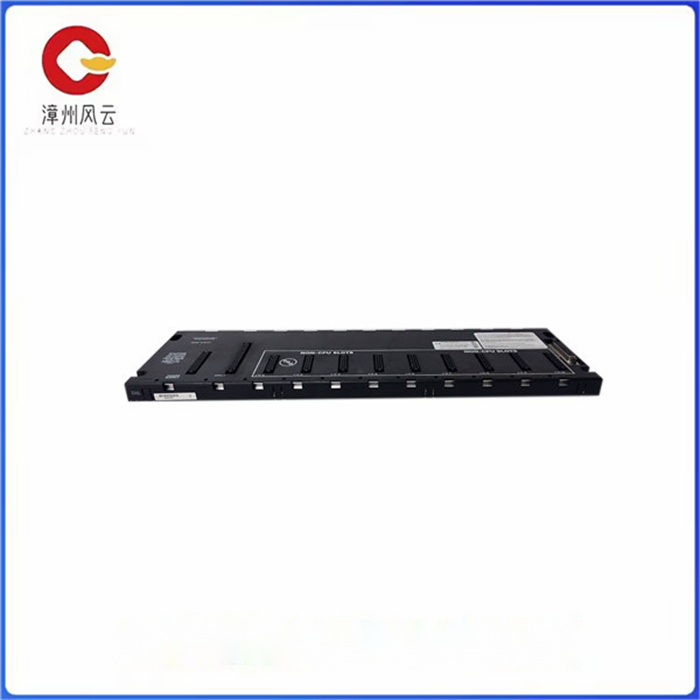

IC693CHS391是模块化CPU底板。该底板是 GE Fanuc 制造的 90-30 系列的一部分。该设备包含连接端口，允许模块化 CPU、I/O 模块和电源模块安装。它共有十 （10） 个插槽，其中一 （1） 个插槽分配给 CPU，九 （9） 个插槽分配给 I/O 模块。电源插槽不包括在插槽计数中，也不包括总线扩展端口。

由于这是一个模块化的 CPU 插槽，因此默认情况下分配的节点地址为 0，可以通过编程软件进行修改。一个系统仅支持一 （1） 个模块化 CPU 插槽。系统中的其他插槽可以是扩展或远程 I/O 底板。

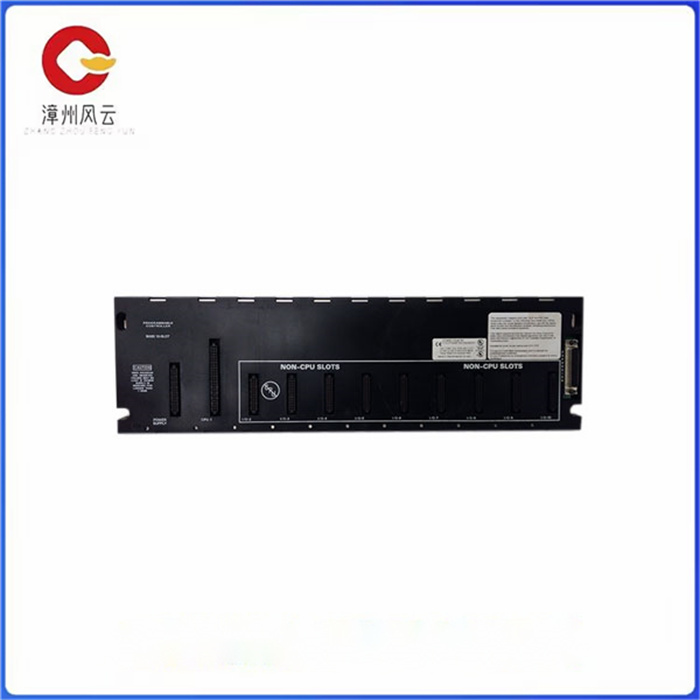

电源安装在最左侧的插槽中，该插槽不包括在插槽计数中，因此该底板可以支持更多的 I/O。CPU 仅安装在插槽 1 上，因为此插槽的大小特别适合 CPU 连接或特殊选项模块，例如 FIP 总线远程 I/O 扫描器。插槽编号 2 及更高，特别适合 I/O 或选件模块。扩展或远程 I/O 底板通过底板最右侧的扩展端口连接。根据 IC693CHS391 托管的 CPU，IC693CHS391 模块化 CPU 底板最多支持四 （4） 或七 （7） 个扩展底板。该底板仅支持面板安装，通过提供的安装孔通过螺钉和垫圈固定。

IC693CHS391底板是GE Fanuc制造的扩展底板，配有十个插槽。它的额定电流为 420 mA，额定电压为 5 伏直流。它配备了一个 DIP 开关。扩展底板与其他模块一起连接到 90-30 系列 PLC。电源模块插入底板的左侧插槽中。IC693CHS391底板采用模块化尺寸，并具有开放式外壳。如果需要额外的功能，它可以很容易地安装和更换或更改为其他类型。板的左侧有一个电源端口，以及用于 CPU 和非 CPU 插槽的连接插槽。它的右侧还有一个 25 针母连接器，用于连接扩展和远程底板。

要与远程底板连接，IC693CHS391扩展底板需要长度小于 700 英尺的电缆。底板不能用作单个图元。它可以连接到PLC设备或使用PCI卡的个人计算机。它一次最多可以连接到 7 个 CPU，具体取决于所使用的 CPU 型号。IC693CHS391底板可以垂直或水平安装，具体取决于 PLC 或 CPU 的布局。环境温度应始终在规定范围内。板应远离溅水和灰尘、污垢和有害化学物质的来源。IC693CHS391底板通过了多项全球环境和工业标准认证。

IC693CHS391 微型主驱动器提供处理能力和通信带宽

IC693CHS391 is a modular CPU mainboard. The baseplate is part of the 90-30 series manufactured by GE Fanuc. The device includes connection ports that allow modular CPU, I/O modules, and power modules to be installed. It has a total of ten (10) slots, of which one (1) slot is allocated to the CPU and nine (9) slots are allocated to the I/O module. Power sockets are not included in the slot count, nor are bus expansion ports.

Since this is a modular CPU slot, the node address assigned by default is 0, which can be modified by programming software. A system supports only one (1) modular CPU slot. Other slots in the system can be expansion or remote I/O backboards.

The power supply is installed in the leftmost slot, which is not included in the slot count, so the baseboard can support more I/O. The CPU is only installed on slot 1 because the size of this slot is particularly suitable for CPU connections or special option modules, such as FIP bus remote I/O scanners. Slot numbers 2 and higher, especially for I/O or option modules. The extension or remote I/O baseboard connects to the extension port on the far right of the baseboard. The IC693CHS391 modular CPU backboards support up to four (4) or seven (7) expansion backboards, depending on the CPU hosted by the IC693CHS391. The baseplate supports panel mounting only and is secured by screws and washers through the provided mounting holes.

The IC693CHS391 baseboard is an expansion baseboard manufactured by GE Fanuc with ten slots. It has a rated current of 420 mA and a rated voltage of 5 volts DC. It is equipped with a DIP switch. The expansion backboard is connected to the 90-30 series PLC along with other modules. The power module is inserted into the left slot of the mainboard. The IC693CHS391 baseplate is modular in size and has an open housing. If additional features are needed, it can be easily installed and replaced or changed to another type. The left side of the board has a power port, as well as connection slots for CPU and non-CPU slots. It also has a 25-pin female connector on the right side for connecting expansion and remote backboards.

To connect to the remote baseboard, the IC693CHS391 expansion baseboard requires a cable less than 700 feet in length. The backplane cannot be used as a single primitive. It can be connected to a PLC device or a personal computer using a PCI card. It can be connected to up to 7 cpus at a time, depending on the CPU model used. The IC693CHS391 backboard can be mounted vertically or horizontally, depending on the layout of the PLC or CPU. The ambient temperature should always be within the specified range. The board should be kept away from splashing water and sources of dust, dirt and harmful chemicals. The IC693CHS391 baseplate is certified to several global environmental and industry standards.
