IC693ALG392 8通道模拟电流/电压输出模块

IC693ALG392 8通道模拟电流/电压输出模块

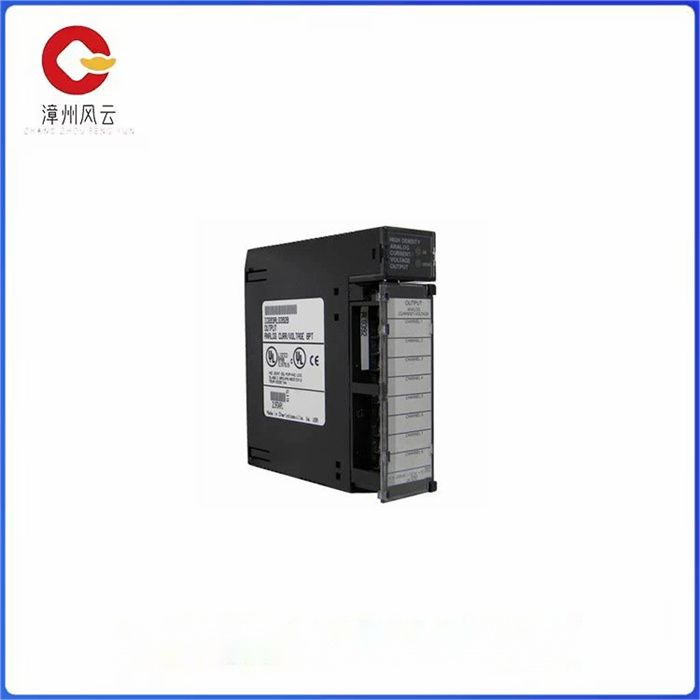

IC693ALG392是 90-30 系列模块。该模块是一个模拟输出模块，通常用于实现仪表或设备的调制控制，例如变频驱动器 （VFD）、控制阀、定位器、转换器和其他类似调制设备。它还可用于将模拟数据重新传输到接收元件，例如记录仪、数据记录器和其他兼容的接收设备。

该IC693ALG392具有八 （8） 个输出通道，可配置分辨率为 15 位或 16 位，具体取决于所选的模拟输出范围。它能够提供电压信号，例如 0 至 +10 伏（单极）/-10 至 +10 伏（双极）电压和 0 至 20 毫安/4 至 20 毫安输出信号。为了能够产生输出模拟信号，该模块需要一个隔离的 24VDC 电源，直接连接到模块的指定接线端子。

该模块已在工厂校准。校准信息包括 0 至 20 mA 时为 .625 μA;0.5 μA（4 至 20 mA）;电压为 .3125 mV（每个计数）。对于4-20 mA，模块的每个通道的更新速率为八（8）毫秒，分辨率为0.5 μA （1 LSB = 0.5 μA）;0-20 mA 时为 0.625 μA （1 LSB = 0.625 μA）;0-10VDC 为 0.3125 mV （1 LSB = 0.3125 mV），-10 至 +10VDC 输出信号为 0.3125 mV （1 LSB = 0.3125 mV）。

该模块可安装在 RX3i 机箱的任何插槽上。每个 RX3i 机架允许的实例数量没有限制。实例数量取决于特定 RX3i 控制器支持的模拟数据数量。

IC693ALG392 8通道模拟电流/电压输出模块

IC693ALG392 is a 90-30 series module. This module is an analog output module that is commonly used to implement modulation control of instruments or devices, such as variable frequency drivers (VFDS), control valves, positioners, converters, and other similar modulation devices. It can also be used to retransmit analog data to receiving elements such as loggers, data loggers and other compatible receiving devices.

The IC693ALG392 has eight (8) output channels and can be configured with a resolution of 15 or 16 bits depending on the analog output range selected. It is capable of providing voltage signals such as 0 to +10 volts (unipolar) /-10 to +10 volts (bipolar) and 0 to 20 mA /4 to 20 mA output signals. In order to be able to generate an output analog signal, the module requires an isolated 24VDC power supply that is directly connected to the specified terminal of the module.

The module has been factory calibrated. Calibration information includes.625 μA for 0 to 20 mA; 0.5 μA (4 to 20 mA); The voltage is.3125 mV (per count). For 4-20 mA, the module has an update rate of eight (8) milliseconds per channel and a resolution of 0.5 μA (1 LSB = 0.5 μA); At 0-20 mA, it is 0.625 μA (1 LSB = 0.625 μA). 0-10VDC is 0.3125 mV (1 LSB = 0.3125 mV), and -10 to +10VDC output signals are 0.3125 mV (1 LSB = 0.3125 mV).

The module can be installed in any slot of the RX3i chassis. There is no limit to the number of instances allowed per RX3i rack. The number of instances depends on the amount of analog data supported by a particular RX3i controller.
