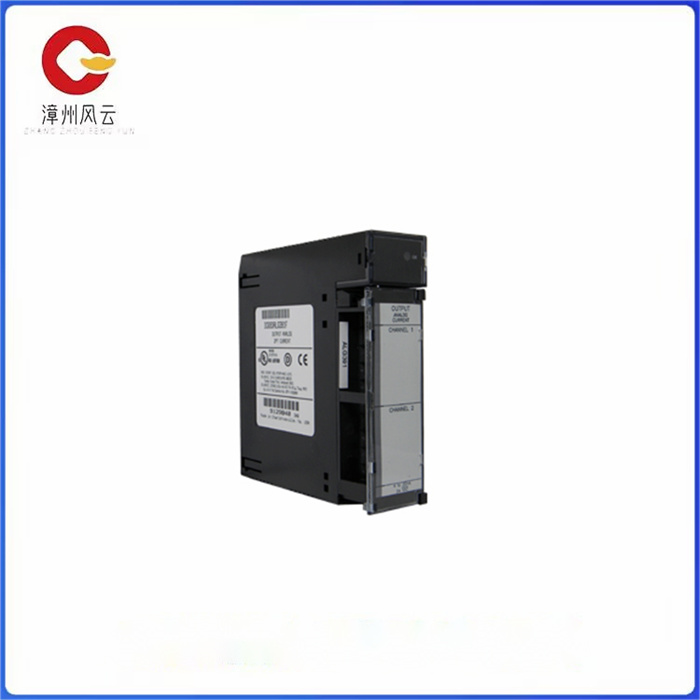

IC693ALG391F 模拟量输出模块 具有两(2)个模拟输出通道

IC693ALG391F 模拟量输出模块 具有两(2)个模拟输出通道

该IC694ALG391是以前由 GE Fanuc Automation 制造的模拟输出模块，现在被 Emerson Automation 收购。该模块是一个单插槽模块，具有两 （2） 个模拟输出通道，可生成电压和电流输出信号，例如 0-20 mA / 4-20 mA 和 1-5VDC / 0-5 VDC 电信号。该模块具有特定的分辨率，特别是在 4-20 mA 时为 4μA （1 LSB = 4μA）;0-20 mA 时为 5μA （1 LSB = 5μA）;1 至 5 VDC 时为 1 mV （1 LSB = 1 mV），0-5 VDC 时为 1.25 mV （1 LSB = 1.25 mV）。该模块特别用于驱动调节控制设备，如控制阀、百叶窗、风门、变频驱动器 （VFD） 和类似设备。它还可用于重新传输信号并与面板仪表、数据记录器和其他接收元件连接。IC694ALG391可安装在 5 插槽和 10 插槽底板的任何 I/O 安装位置。它有一个模块正常状态指示器，用于描述模块的运行状态。当配置为 4 至 20 mA 时，该模块的绝对精度为 8μA，工作温度为 25oC （77oF）;25oC （77oF） 时为 10μA，0 至 20 mA 配置;25oC （77oF） 时为 50 mV（1 至 5 V），25oC （77oF） 时为 50 mV，工作电压为 0 至 5 V。该IC694ALG391采用+5V电源时的内部功耗为30 mA，采用隔离式+24 VDC背板电源或用户提供的电源时，内部功耗为215 mA。

IC693ALG391是 90-30 系列 PLC 模拟量输出模块，提供 0-20 mA / 4-20 mA 电流输出信号和 1-5VDC / 0-5 VDC 电压输出信号。该模块以前由 GE Fanuc Automation 制造，现在隶属于 Emerson Automation。该模块有两 （2） 个模拟输出通道，在 4-20mA 时分辨率为 4μA （1 LSB = 4μA）;0 至 20 mA 时为 5μA （1 LSB = 5μA）;1 至 5 V 时为 1 mV （1 LSB = 1 mV）;0 至 5 V 时为 1.25 mV （1 LSB = 1.25 mV），背板电流消耗为 30 mA（采用 +5V 电源），215 mA 采用隔离式 +24 VDC 背板电源或用户电源供电。

IC693ALG391F 模拟量输出模块 具有两(2)个模拟输出通道

The IC694ALG391 is an analog output module formerly manufactured by GE Fanuc Automation and now acquired by Emerson Automation. The module is a single slot module with two (2) analog output channels that generate voltage and current output signals such as 0-20 mA / 4-20 mA and 1-5VDC / 0-5 VDC electrical signals. The module has a specific resolution, in particular 4μA (1 LSB = 4μA) at 4-20 mA; At 0-20 mA, it is 5μA (1 LSB = 5μA). 1 mV (1 LSB = 1 mV) for 1 to 5 VDC and 1.25 mV (1 LSB = 1.25 mV) for 0-5 VDC. The module is especially used to drive regulating control devices such as control valves, shutters, damper, variable frequency drives (VFDS) and similar devices. It can also be used to retransmit signals and connect to panel meters, data loggers, and other receiving elements. The IC694ALG391 can be installed in any I/O installation position on the 5 - and 10-slot baseboards. It has a module health indicator that describes the operating status of the module. When configured at 4 to 20 mA, the module has an absolute accuracy of 8μA and an operating temperature of 25oC (77oF). 10μA at 25oC (77oF), 0 to 20 mA configuration; 50 mV (1 to 5 V) at 25oC (77oF), 50 mV at 25oC (77oF), operating voltage 0 to 5 V. The IC694ALG391 has an internal power consumption of 30 mA with a +5V power supply and 215 mA with an isolated +24 VDC backplane power supply or user-supplied power supply.

IC693ALG391 is a 90-30 series PLC analog output module that provides 0-20 mA / 4-20 mA current output signal and 1-5VDC / 0-5 VDC voltage output signal. The module was previously manufactured by GE Fanuc Automation and is now part of Emerson Automation. The module has two (2) analog output channels with a resolution of 4μA (1 LSB = 4μA) at 4-20mA; 5μA at 0 to 20 mA (1 LSB = 5μA); 1 mV at 1 to 5 V (1 LSB = 1 mV); 1.25 mV at 0 to 5V (1 LSB = 1.25 mV), backplane current consumption is 30 mA (with +5V power supply), and 215 mA is powered by isolated +24 VDC backplane power supply or user power supply.
