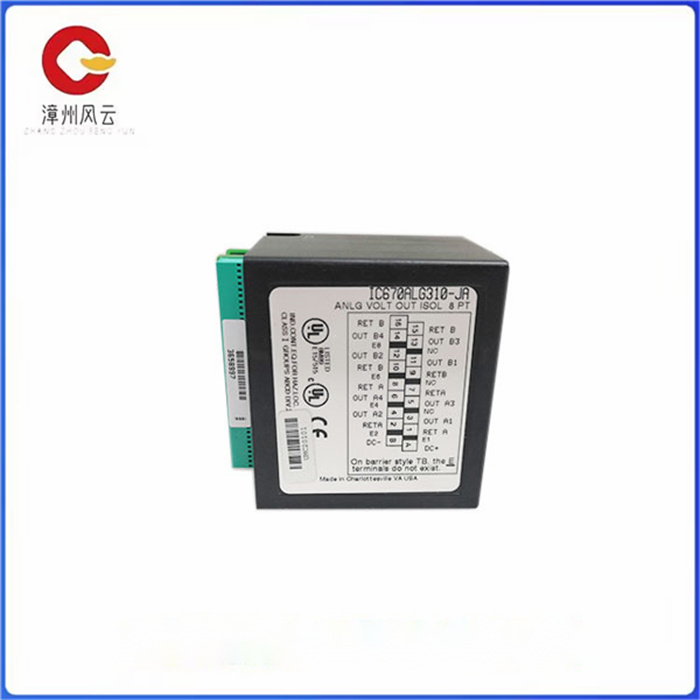

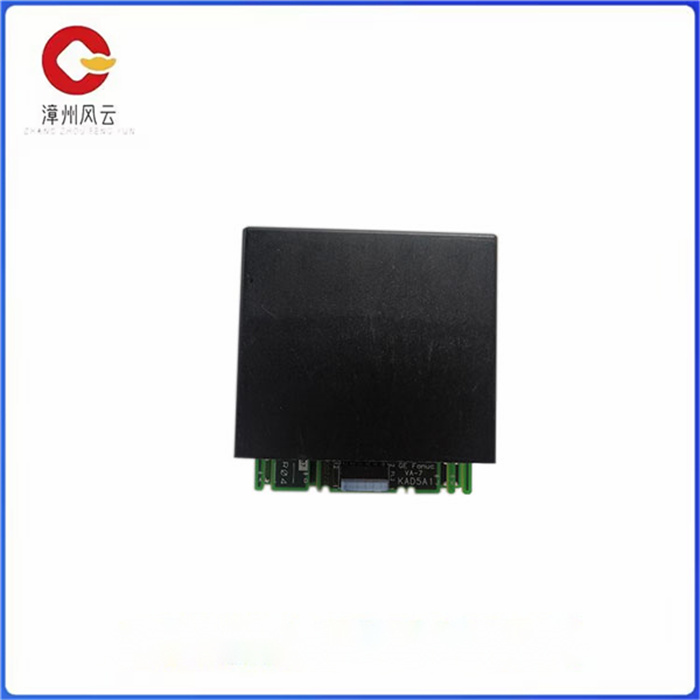

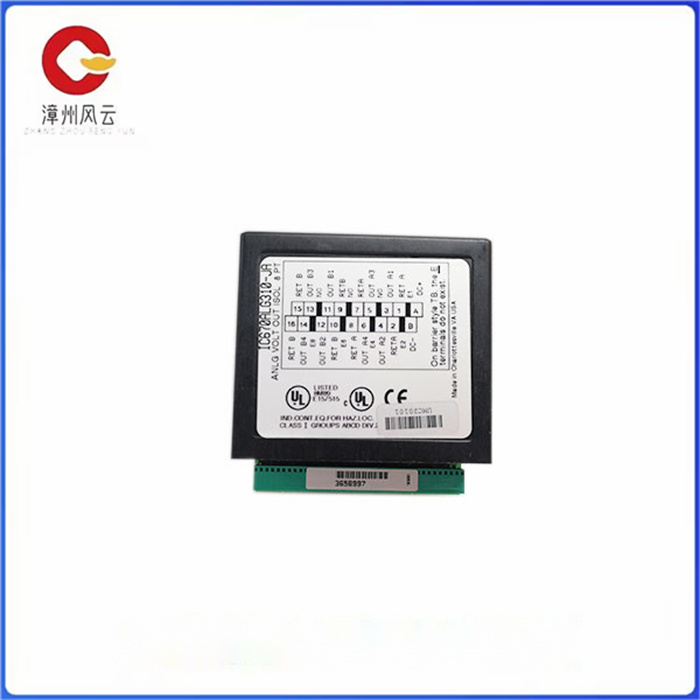

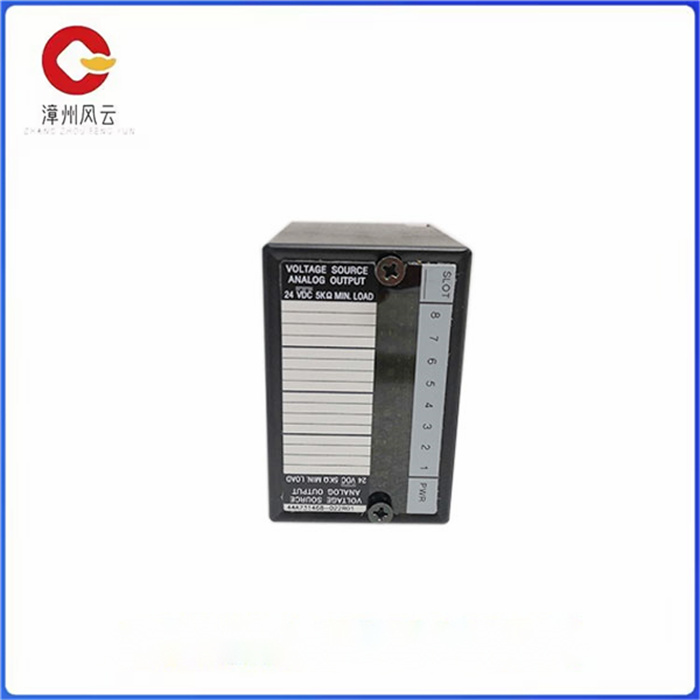

GE IC670ALG310-JA 无线信息访问以太网/IP启用控制器

GE IC670ALG310模块是一款电压源模拟输出模块。它设计有 8 个不同的电压输出通道，可以根据操作员的配置自动缩放。该模块从与其连接的总线接口单元获取输入，增强数据以进行校准，并将数据转换为 -10 至 +10 V 范围内的输出电压。

IC670ALG310输出模块具有增强的诊断功能。它可以轻松检测超量程和下量程情况、用户功率损失和未校准模块。输出模块还具有警报功能，用户可以针对不同的事件设置警报。当输出值不满足模块最大或最小输出设置的 50 毫伏要求时，模块会将输出值视为超出范围和超范围。

IC670ALG310输出模块体积小巧，可安装在狭小空间内。对于输入数据，需要0到8个字的模拟输出数据，0到3个字节的输入数据用于模块和通道状态，0到2字节的输出数据用于清除报警。所有数据交换都在输出模块和总线接口单元之间进行。IC670ALG310输出模块具有“通道活动”功能，允许操作员将单个通道配置为活动或非活动。该模块还具有本地输出默认功能，有助于将数据配置为默认设置或总线接口单元中模块数据的零。该模块从总线接口吸收 170 毫安的电流。模块的分辨率为14位，幅度数据大小为14位。

GE IC670ALG310-JA 无线信息访问以太网/IP启用控制器

The GE IC670ALG310 module is a voltage source analog output module. It is designed with eight different voltage output channels that can be scaled automatically according to the operator's configuration. The module takes inputs from the bus interface unit to which it is connected, enhances the data for calibration, and converts the data to an output voltage in the range -10 to +10 V.

The IC670ALG310 output module has enhanced diagnostic capabilities. It easily detects over - and down-range conditions, user power losses, and uncalibrated modules. The output module also has an alert function where users can set alerts for different events. When the output value does not meet the 50 millivolts requirement of the module's maximum or minimum output setting, the module will treat the output value as out of range and out of range.

The IC670ALG310 output module is compact and can be installed in tight Spaces. For input data, 0 to 8 words of analog output data are required, 0 to 3 bytes of input data is used for module and channel status, and 0 to 2 bytes of output data is used to clear alarms. All data exchange takes place between the output module and the bus interface unit. The IC670ALG310 output module has a "channel activity" function that allows operators to configure individual channels as active or inactive. The module also has a local output default function that helps to configure data to default Settings or zero of the module data in the bus interface unit. The module absorbs 170 mA of current from the bus interface. The resolution of the module is 14 bits and the amplitude data size is 14 bits.
