IC670ALG310 电压源模拟输出模块 8点隔离模拟电压源

IC670ALG310 电压源模拟输出模块 8点隔离模拟电压源

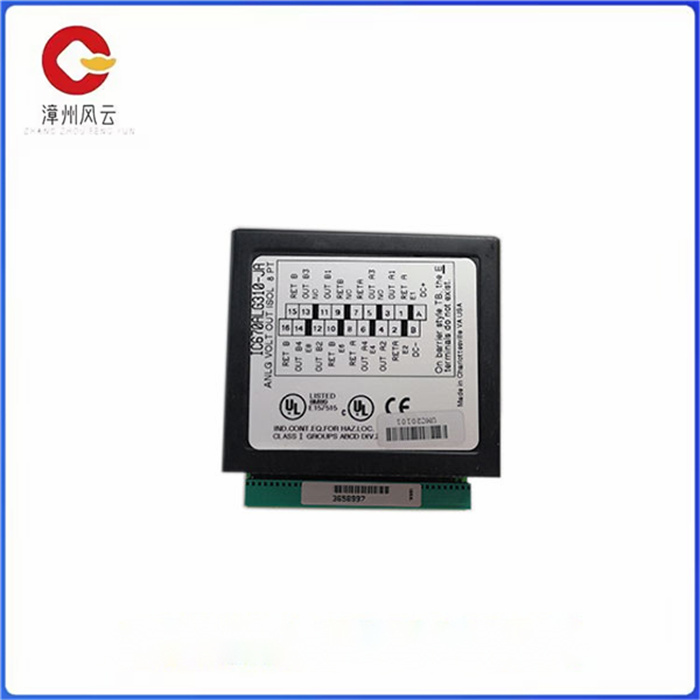

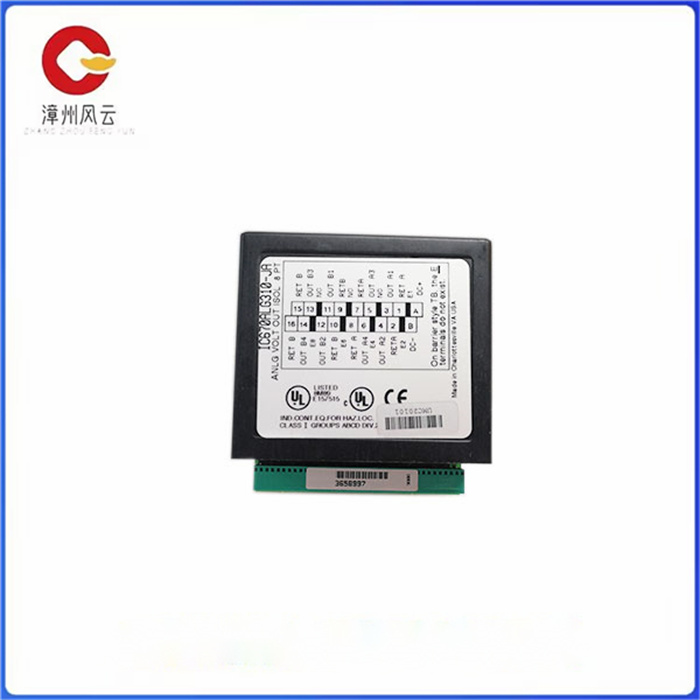

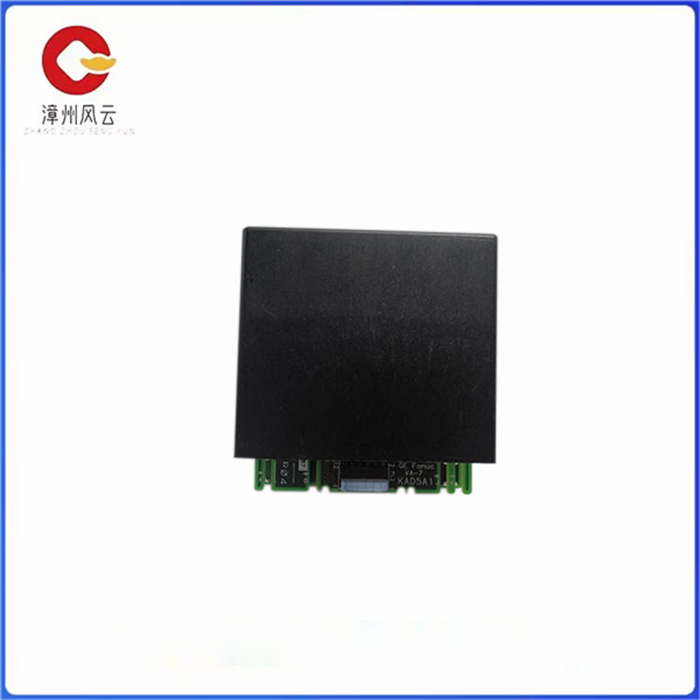

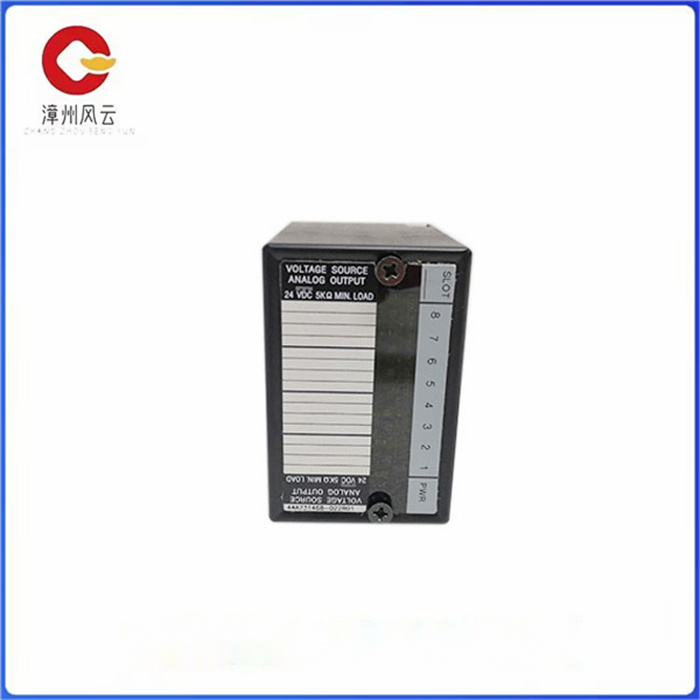

GE IC670ALG310模块是一个电压源模拟输出模块。它设计有8个不同的电压输出通道，可以根据操作员的配置自动调整。该模块从与之相连的总线接口单元获取输入，增强用于校准的数据，并将数据转换为-10至+10伏范围内的输出电压。IC670ALG310输出模块具有增强的诊断功能。它可以轻松检测超量程和欠量程情况、用户断电和未校准模块。输出模块还具有可由用户针对不同事件设置的报警功能。当输出值不符合模块最大或最小输出设置的th 50毫伏要求时，模块将输出值视为欠范围和超范围。

故障清除命令和模拟输出数据。该模块还可以配置为“组数据传输与BIU或与其他智能设备在同-现场控制站。

组数据在总线中描述接口单元用户手  册。  与其他现场控制模块一样，8点隔离模拟电压源输出模块通常从总线接口单元配置，使用兼容的手持式编程器。模块的配置也可以从系统的总线上读  取或写入支持这种配置。

下表总结 了配置选项和默认值。模块将使用默认配置设置启动。的配置说明，请参阅总线接口单元用户手册。

IC670ALG310 电压源模拟输出模块 8点隔离模拟电压源

The GE IC670ALG310 module is a voltage source analog output module. It is designed with 8 different voltage output channels that can be automatically adjusted according to the operator's configuration. The module takes inputs from the bus interface unit connected to it, enhances the data for calibration, and converts the data to an output voltage in the -10 to +10 volt range. The IC670ALG310 output module has enhanced diagnostic capabilities. It can easily detect overrange and underrange conditions, user outages and uncalibrated modules. The output module also has an alarm function that can be set by the user for different events. When the output value does not meet the th 50 millivolts requirement of the module's maximum or minimum output setting, the module regards the output value as under range and out of range.

Troubleshooting commands and analog output data. The module can also be configured to "group data transmission with BIU or with other smart devices in the same - field control station."

Group data describes the interface unit user book in the bus. Like other field control modules, 8-point isolated analog voltage source output modules are typically configured from the bus interface unit, using a compatible handheld programmer. The configuration of the module can also be read or written from the system's bus to support this configuration.

The following table summarizes the configuration options and defaults. The module will start with the default configuration Settings. For configuration instructions, see the Bus Interface Unit User Manual.
