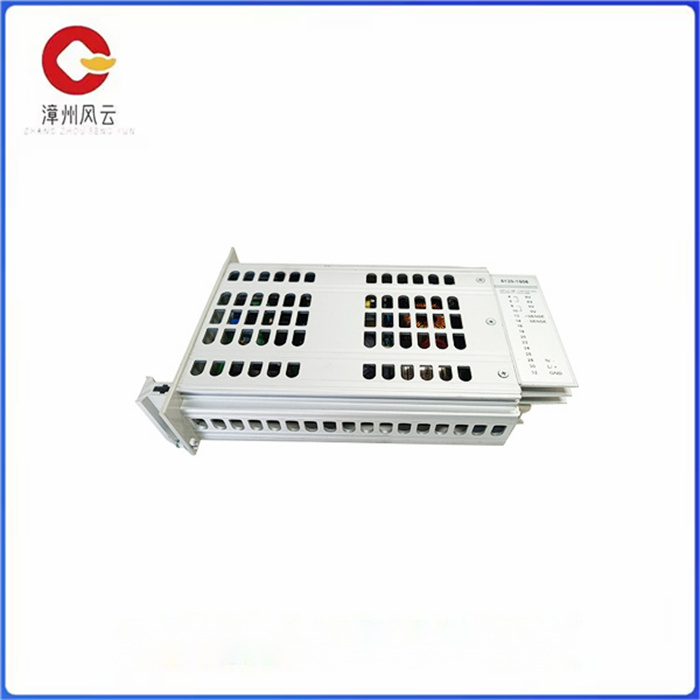

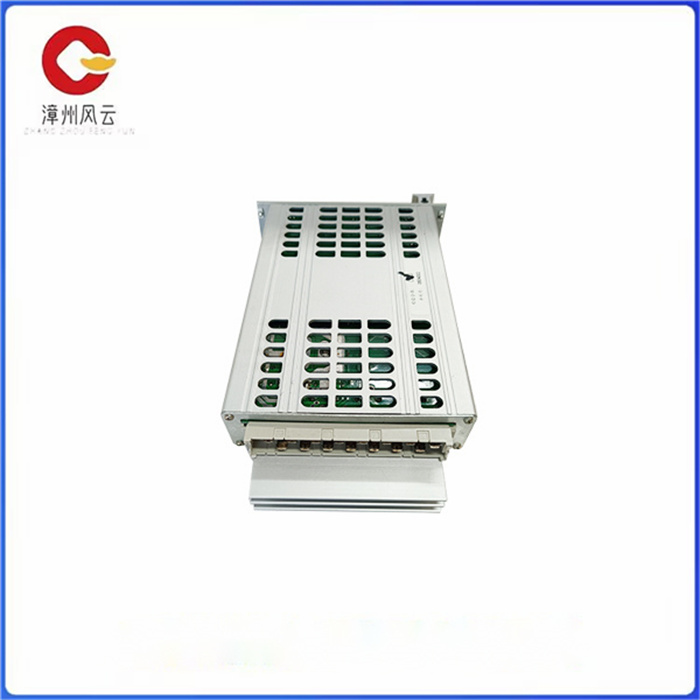

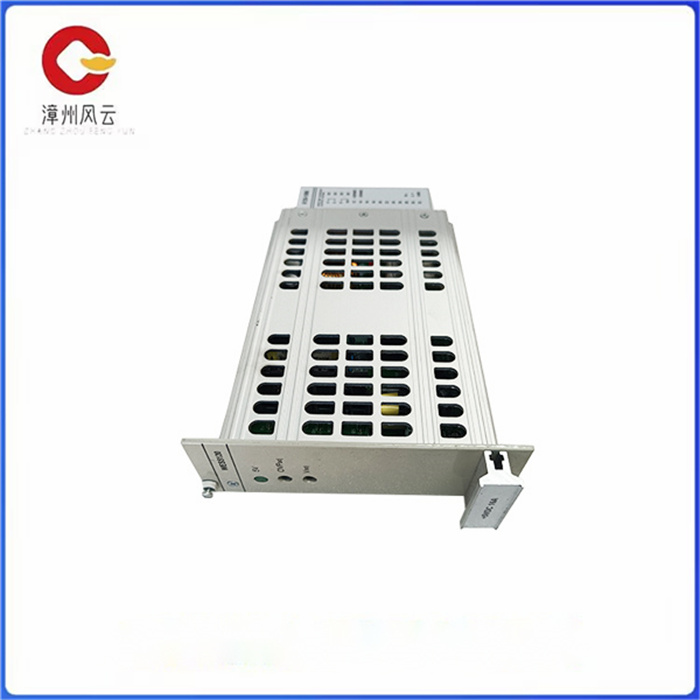

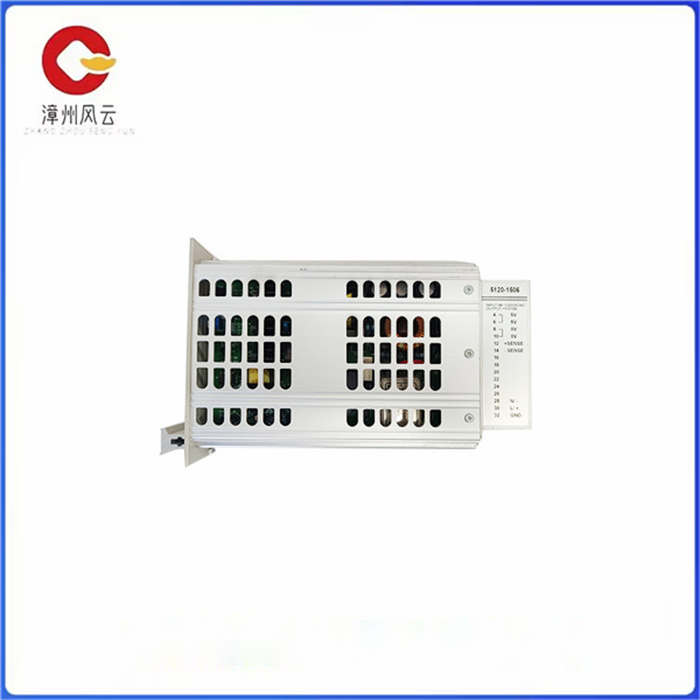

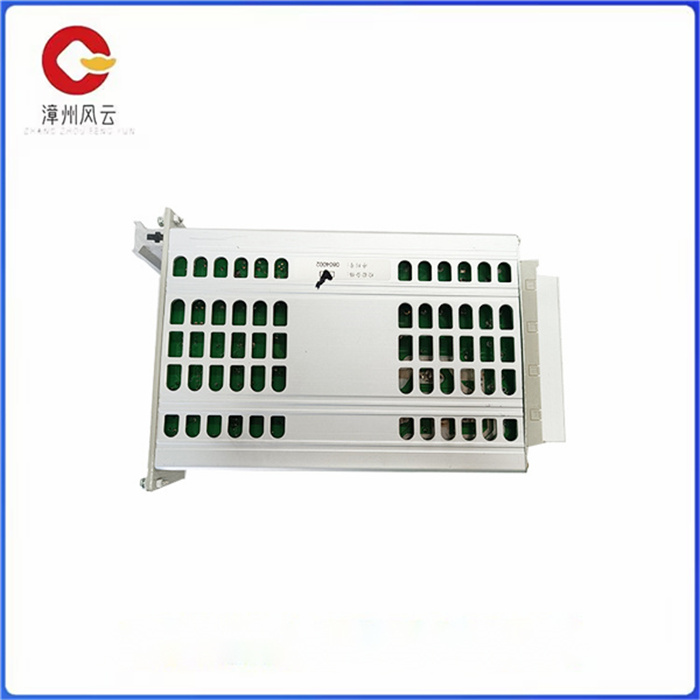

WES5120 5120-1506 现场控制器主单元 端子模块

WES5120 5120-1506 现场控制器主单元 端子模块

适合于ICOT应用程序,并被用作将数据传输到云基服务器的边缘设备。它能够从最多20个HART或通用模拟输入通道和14个数字输入中获取数据,有两个模拟输出和最多12个中继输出,并通过多个通信接口和协议将其数据提供给该系统和所有主要自动化系统。接口和协议包括4-20mAHART、MOBUS/MOBUS贸易协定/IP、PROFIBUS数据处理系统、PROFIN、ProFFIN、以太网/IP、以太网贸易协定/IP、USB、RS-232B/RS485和OPC。

通过所有这些接口,备忘录M与PLCS、SCAD系统、分布式控制系统、历史学家和云基数据结构进行通信。它还有一个嵌入式Web服务器,一旦遵循适当的安全程序,任何网络浏览器都可以通过互联网访问。备忘录M安装在标准的丁轨上,由24VDC或230VAC电源供电,并有IP20保护。设备前部的所有连接都设计为可插入螺丝或弹簧端子,在任何情况下都有反向极性保护。弹簧端子用开槽螺丝刀解锁。它提供256MB符合各种法律指令的内部存储器、32GBSD卡和32GBUSB驱动器的防篡改数据记录。内置软件包括用于可视化、分析、备份和报告的FDM现场数据管理器;与FDA21CFR第11部分一致的审计跟踪软件;以及ITERM特里斯森斯温度传感器校准。

WES5120 5120-1506 现场控制器主单元 端子模块

It is suitable for ICOT applications and is used as an edge device to transfer data to cloud-based servers. It is capable of taking data from up to 20 HART or generic analog input channels and 14 digital inputs, has two analog outputs and up to 12 relay outputs, and feeds its data to this system and all major automation systems through multiple communication interfaces and protocols. Interfaces and protocols include 4-20mAHART, MOBUS/MOBUS Trade Protocol /IP, PROFIBUS Data Processing System, PROFIN, ProFFIN, Ethernet /IP, Ethernet Trade Protocol /IP, USB, RS-232B/RS485, and OPC.

Through all these interfaces, Memo M communicates with PLCS, SCAD systems, distributed control systems, historians, and cloud data structures. It also has an embedded Web server that can be accessed via the Internet by any web browser once proper security procedures are followed. The Memo M is mounted on a standard T-rail, powered by either 24VDC or 230VAC power and is IP20 protected. All connections at the front of the device are designed to be inserted into screw or spring terminals, with reverse polarity protection in any case. Unlock the spring terminal with a slotted screwdriver. It provides tamper-proof data logging of 256MB internal memory, 32GBSD card and 32GBUSB drive compliant with various legal directives. Built-in software includes FDM field Data Manager for visualization, analysis, backup and reporting; Audit trail software consistent with FDA21CFR Part 11; And ITERM Trissens temperature sensor calibration.
