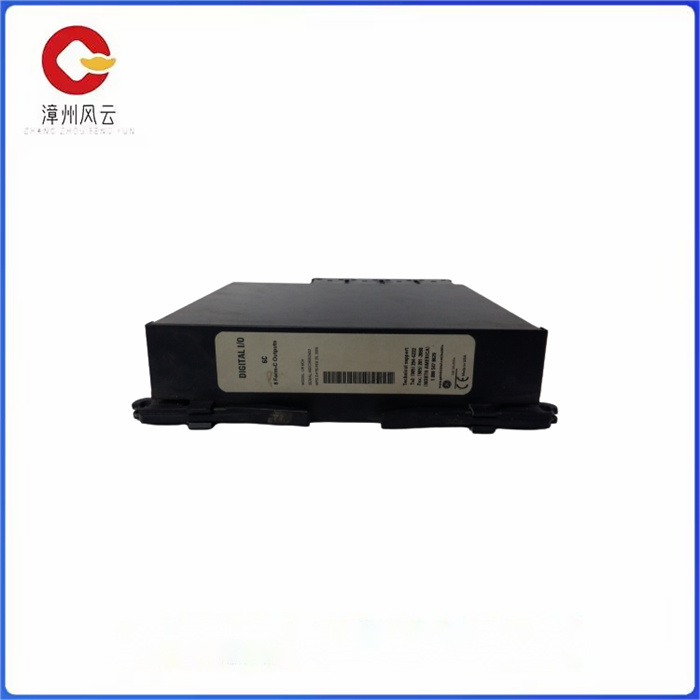

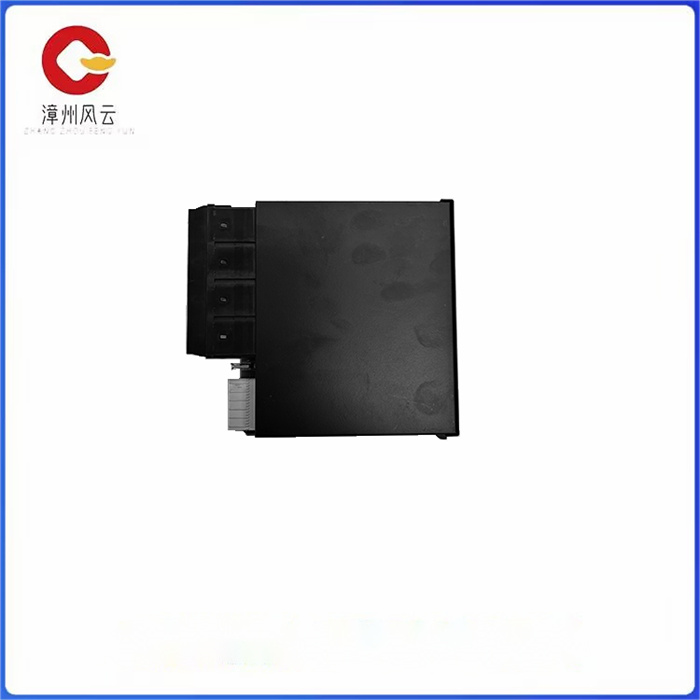

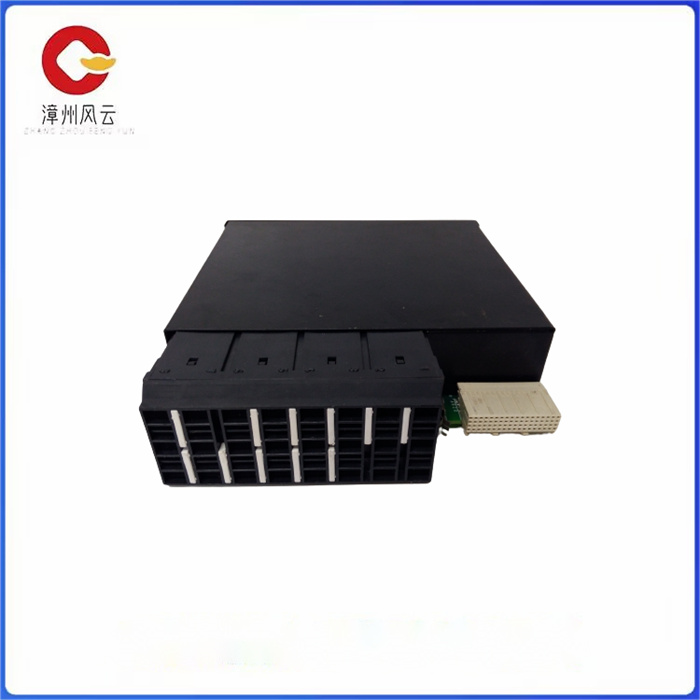

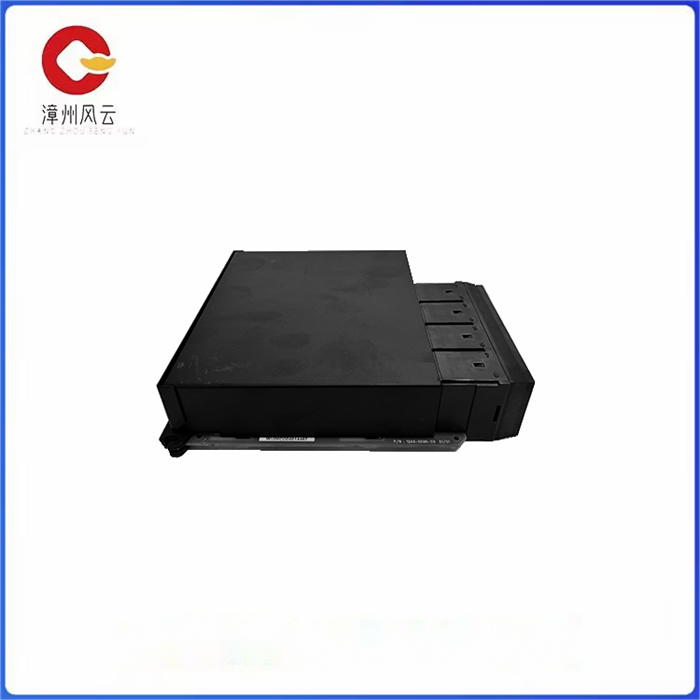

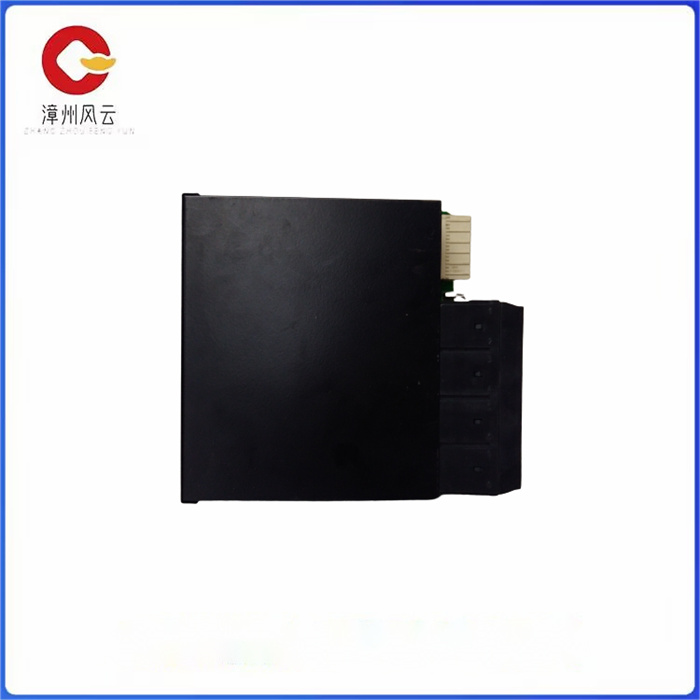

UR6CH 数字I/O模块为通用继电器系列

UR6CH 数字I/O模块为通用继电器系列

UR6CH 是通用电气公司开发的模拟量I/O 模块。它是 Mark VIe Speedtronic 控制系统的一部分。此 I/O 包直接连接到接线板上。I/O 包通过单个 DC-37 针连接器连接到单工端子板。如果只安装一个 I/O 包，则具有 TMR 功能的端子板具有三个 DC-37 针连接器，可以在单工模式下使用。I/O 包直接支持所有这些连接。

功能说明

模拟 I/O 包 (PAIC) 是一种电气接口，可将一个或两个 I/O 以太网网络连接到模拟输入端子板。PAIC 包括一个 BPPx 处理器板以及一个 于模拟 I/O 功能的采集板。

该模块有十个模拟输入 个输入可以设置为 5 V 或 10 V 或 4-20 mA 电流环路输入 后两个输入可以设置为 1 mA 或 4-20 mA 电流输入。

电流回路输入的负载终端电阻位于接线板上，PAIC 检测这些电阻两端的电压。PAICH2 有两个电流环路输出，范围从 0 到 20 mA。它还包括额外的硬件，仅允许 个输出上的 0-200 mA 电流。

I/O 包通过双 RJ-45 以太网连接器接收数据并将数据发送到控制器，并由三针连接器供电。现场设备通过直接连接到相关端子板的 DC-37 针连接器进行通信。LED 指示灯提供视觉诊断。

UR6CH安装

牢固地安装所选的接线板。

将 PAIC I/O 包直接插入接线板连接器。

使用以太网端口附近的双头螺栓以机械方式固定 I/O 包。螺柱适合接线板 的安装支架。支架的位置应确保不会对 I/O 组件和接线板之间的 DC-37 针连接器施加直角力。在产品的使用寿命期间只需要调整一次。

根据系统配置，连接一根或两根以太网电缆。I/O 包将在任一端口上运行。使用双连接时，通常的做法是将 ENET1 连接到与 R 控制器关联的网络。

通过插入包装侧面的连接器，将 I/O 包装连接到电源。由于 I/O 组件具有固有的软启动功能，可控制电源应用中的电流涌入，因此无需在插入电缆之前断开电缆的电源。

使用 ToolboxST 应用程序根据需要配置 I/O 包。

UR6CH 数字I/O模块为通用继电器系列

The UR6CH is an analog I/O module developed by General Electric. It is part of the Mark VIe Speedtronic control system. This I/O packet is connected directly to the patch board. I/O packets are connected to the simplex terminal board via a single DC-37 pin connector. If only one I/O package is installed, the terminal board with TMR features three DC-37 pin connectors that can be used in simplex mode. The I/O package directly supports all of these connections.

Function description

An Analog I/O packet (PAIC) is an electrical interface that connects one or two I/O Ethernet networks to an analog input terminal board. The PAIC consists of a BPPx processor board and a capture board for simulating I/O functions.

The module has ten analog inputs, one of which can be set to 5 V or 10 V or 4-20 mA current loop inputs, and the other two can be set to 1 mA or 4-20 mA current inputs.

The current loop input load terminal resistors are located on the patch board, and the PAIC detects the voltage at both ends of these resistors. PAICH2 has two current loop outputs ranging from 0 to 20 mA. It also includes additional hardware that allows 0-200 mA current on only one output.

I/O packets receive and send data to the controller via dual RJ-45 Ethernet connectors and are powered by a three-pin connector. Field devices communicate via a DC-37 pin connector connected directly to the relevant terminal board. LED indicators provide visual diagnosis.

Install the UR6CH

Securely install the selected patch panel.

Plug the PAIC I/O package directly into the patch board connector.

Use the stud near the Ethernet port to mechanically secure the I/O packet. Studs fit the mounting bracket of the patch board. The bracket should be positioned so that no direct angular force is applied to the DC-37 pin connector between the I/O assembly and the patch board. It only needs to be adjusted once during the service life of the product.

Connect one or two Ethernet cables, depending on the system configuration. The I/O packet will run on either port. When using dual connections, it is common practice to connect ENET1 to the network associated with the R controller.

Connect the I/O package to the power supply by inserting a connector on the side of the package. Because the I/O component has an inherent soft-start function that controls the influx of current in power applications, there is no need to disconnect the power to the cable before inserting it.

Use the ToolboxST application to configure I/O packages as needed.
