H201Ci-1控制单元是一个完整的单通道控制器，与H201Ti智能式传输器一起使用。数字/模拟板处理通讯事务并提供显示、报警和模拟输出功能。

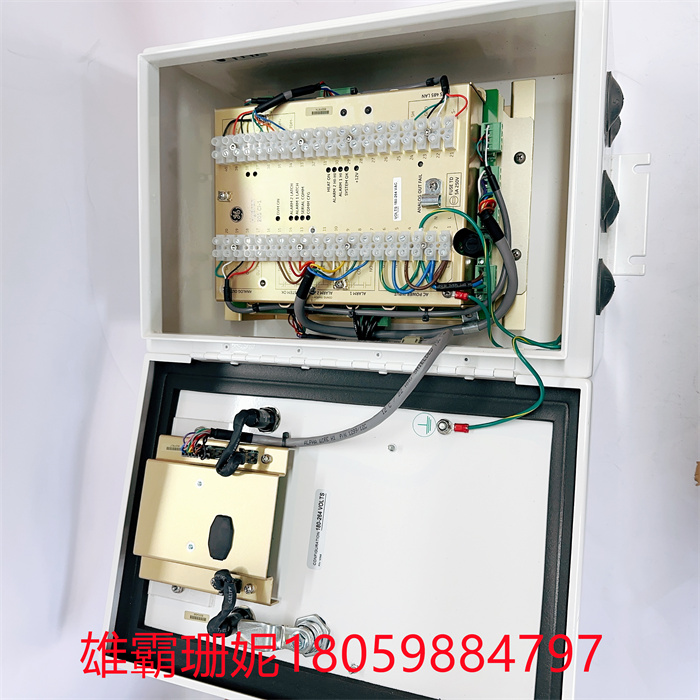

主接线端便于连接：交流电源；报警触点（气体高，气体高-高和系统故障）；

可用跳线配置的非隔离模拟输出（0-1mA，4-20mA，0-1V, 0-10V）及跳线配置的隔离模拟输出。辅助接线端用作对H201Ti智能式传输器的监管联接。用于通讯的连接器：RS-232至电脑或选购的modem，RS-485连接其它H201Ci控制器。

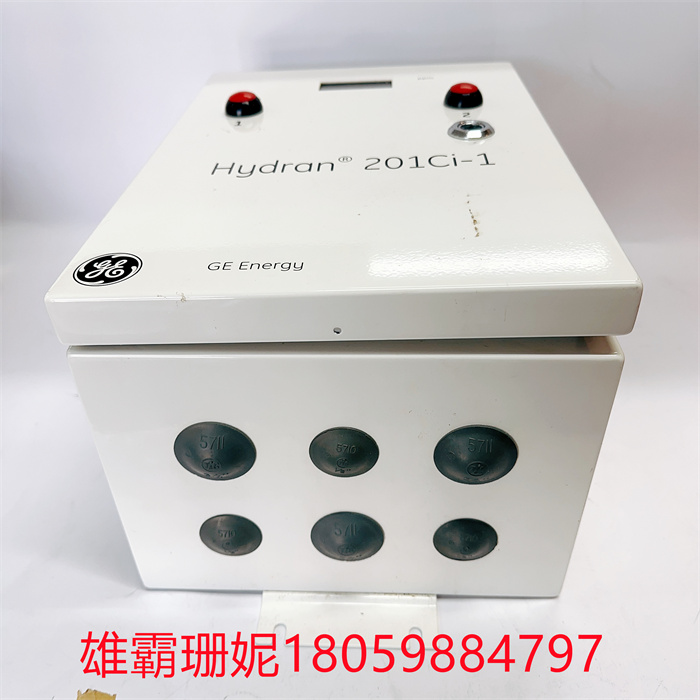

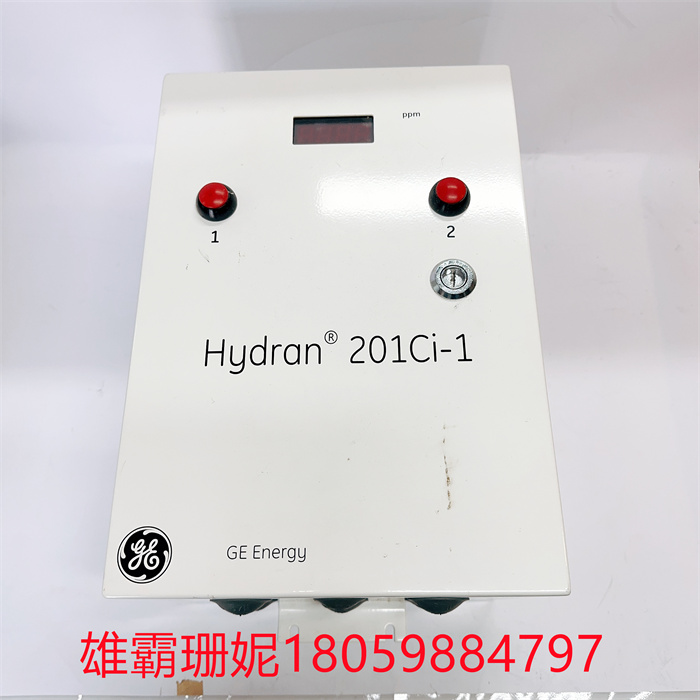

前门安装了发光二极管数字显示屏，显示以ppm为单位的气体含量。还有两个气体报警指示灯。

The H201Ci-1 control unit is a complete single-channel controller that is used with the H201Ti Intelligent transmitter. Digital/analog boards handle communication transactions and provide display, alarm and analog output functions.

The main terminal is easy to connect: AC power supply; Alarm contacts (high gas, high gas - high and system failure);

Non-isolated analog outputs in jumper configurations (0-1mA, 4-20mA, 0-1V, 0-10V) and isolated analog outputs in jumper configurations are available. The auxiliary terminal is used as a supervisory connection to the H201Ti intelligent transmitter. Connectors for communication: RS-232 to computer or optional modem, RS-485 to other H201Ci controllers.

The front door is fitted with a light-emitting diode digital display that displays the gas content in parts per million. There are also two gas alarm lights.
