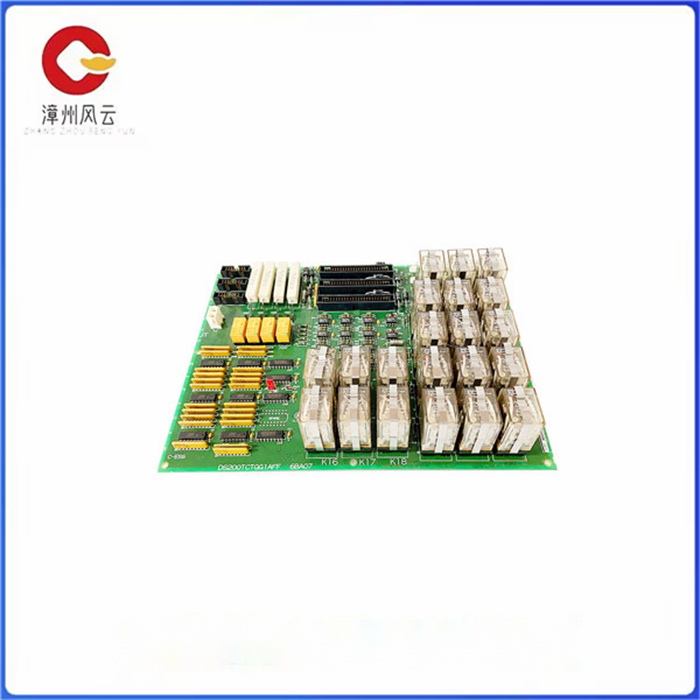

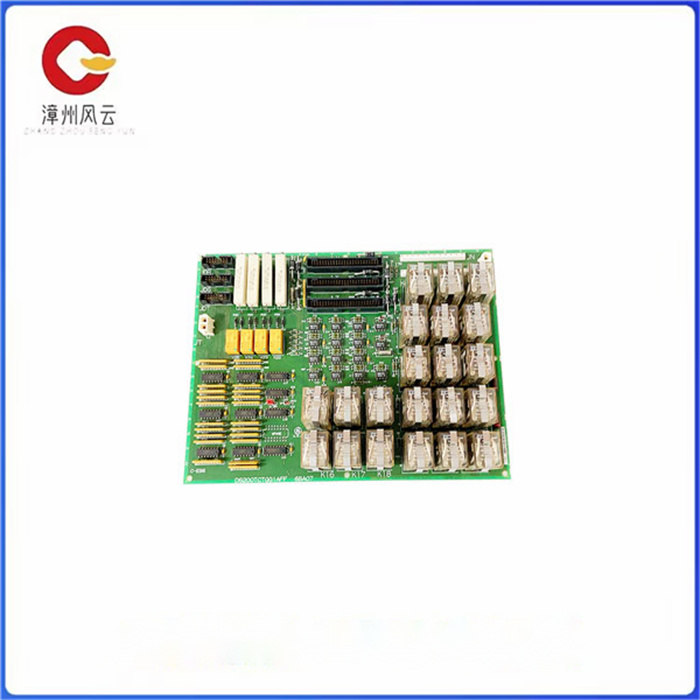

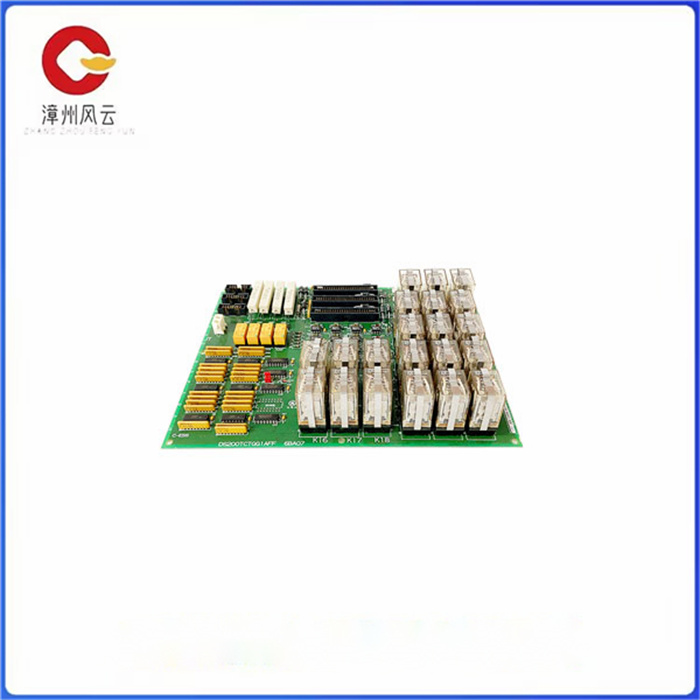

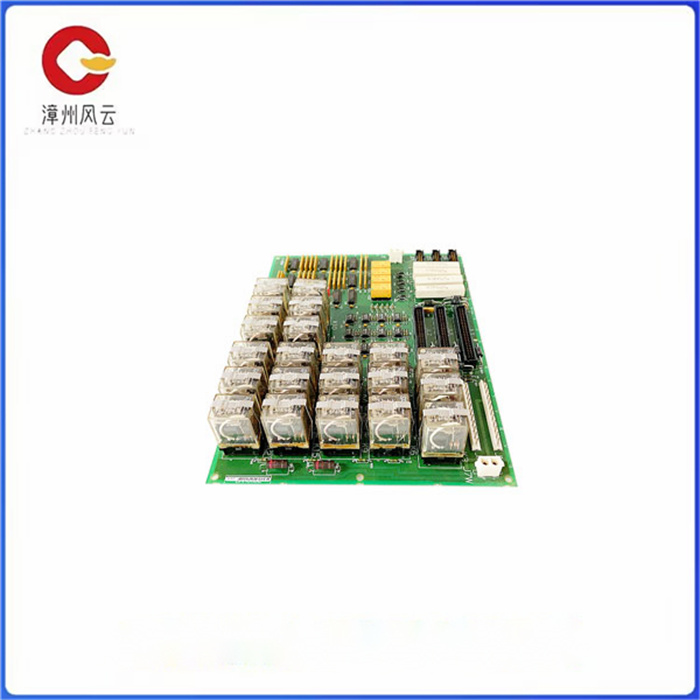

GE Simplex Trip Board DS200TCTGG1AFF装有 21 个插入式继电器。它还具有 3 个 50 针连接器和 2 个 12 针连接器。分配给 50 针连接器的 ID 是 JLY、JLX 和 JLZ。分配给 12 针连接器的 ID 是 JN 和 JM。

21 个插入式继电器的 ID 以 K 为前缀，以数字结尾。数字按顺序从 1 开始。一些 ID 是 K1、K5、K10 和 K21。继电器卡入板上，并用金属带帮助就位。要卸下继电器，请拆下金属带并将继电器从连接器中拉出。要安装继电器，请将其与连接器对齐并将其压入连接器。然后，将金属带的一端夹在连接器上，将金属带排列在继电器的顶部，然后将其夹在连接器的另一侧。

更换继电器时，必须从驱动器上卸下 GE Simplex Trip Board DS200TCTGG1AFF。与熟悉变频器安装并熟悉连接到变频器的电源的工程师或安装人员进行沟通。通过断开保险丝或根据需要以其他方式禁用电源。在继续操作之前，使用测试设备测试驱动器内部的电流。断开电缆与电路板的连接，并绘制电缆的位置图，以便在重新安装电路板时可以将电缆连接到正确的连接器。

DS200TCTGG1AFF 燃机卡模块 具有3个50针连接器

GE simplex stroke board DS200TCTGG1AFF It also features three 50-pin connectors and two 12-pin connectors. jly, jlx. jlz. jlz. 【 Chinese translation 】

1, 0, 0, 0, 0, 0, 0, 0, 0, 0 digits start with 1 in order. k1, k5, k10, k21. The relay snaps into the plate and is helped in place by a metal strap. To remove the relay, remove the metal band and pull the relay out of the connector. To install the relay, align it with the connector and press it into the connector. Then, clip one end of the metal band to the connector, arrange the metal band on top of the relay, and clip it to the other side of the connector.

When replacing the relay, the General board DS200TCTGG1AFF simplex travel must be removed from the drive. Communicate with engineers or installers who are familiar with frequency converter installation and the power supply connected to the frequency converter. Disable the power supply by disconnecting the fuse or otherwise as needed. Test the current inside the drive using a test device before proceeding. Disconnect the cable from the circuit board and map the location of the cable so that the cable can be connected to the correct connector when the circuit board is reinstalled.
