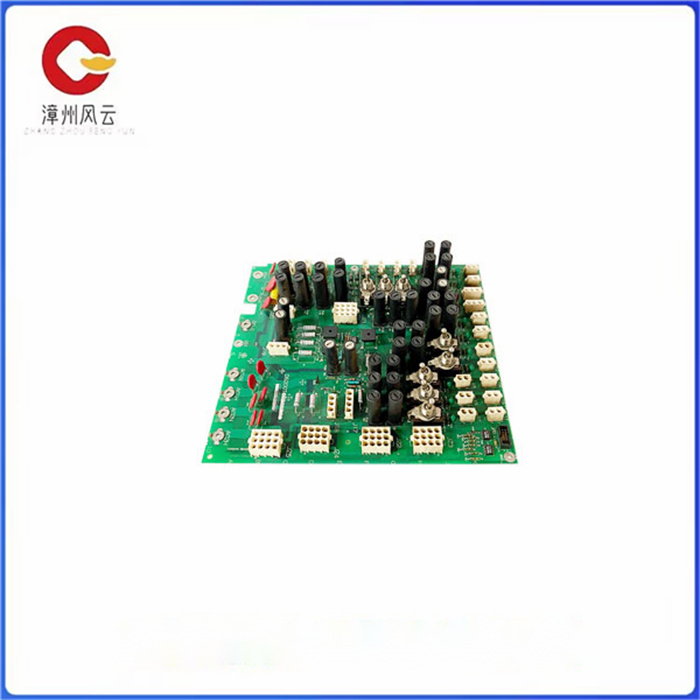

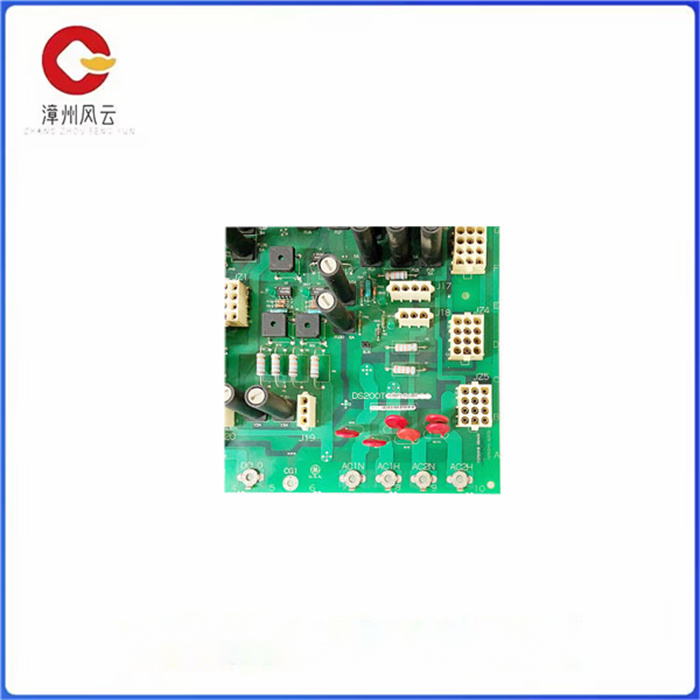

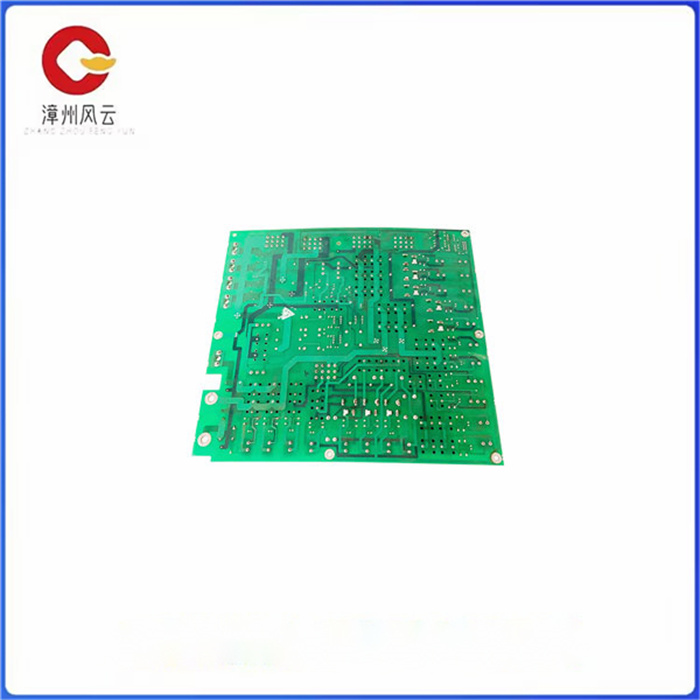

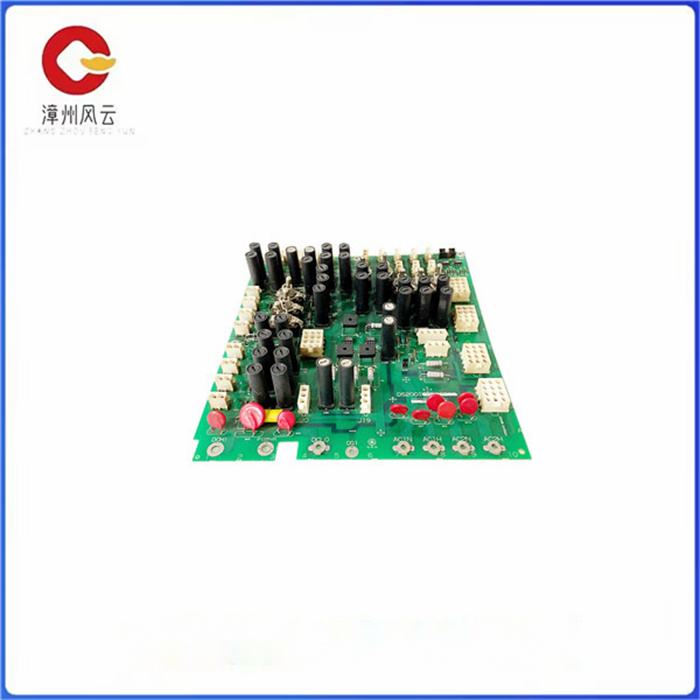

DS200TCPDG1BEC 配电板 装有黑色塑料外壳 36个保险丝

DS200TCPDG1BEC 配电板 装有黑色塑料外壳 36个保险丝

产品描述

GE 配电板 DS200TCPDG1BEC 具有 8 个拨动开关、36 个保险丝和 4 个信号线端子。它还具有 36 个 OK LED 和 1 个 10 针连接器。GE配电板DS200TCPDG1BEC装有黑色塑料外壳，可容纳36个保险丝。保险丝位于罐中的垂直位置，在需要时易于检修和更换。要更换电路板上的保险丝，请扭转容器的顶部将其打开。顶部仍然固定在罐上，以便于使用。用拇指和一根手指从罐中取出保险丝。最佳做法是丢弃熔断的保险丝，以免意外再次插入电路板上的罐中。要安装新的保险丝，请将保险丝与开口对齐并将其放入罐中。保险丝的任一端都可以放入罐中。将顶部放在罐子上并扭动以将其关闭。

要确定保险丝熔断并需要更换，请考虑无法对保险丝进行目视检查，因为保险丝位于罐内。但是，每个保险丝旁边都有一个 LED，指示保险丝正常。点亮时，绿色 LED 表示保险丝中的元件完好无损，并正在保护电路板电路。关闭时，保险丝熔断或电路板未通电。如果所有 LED 都熄灭，您可能会怀疑主板未通电。

DS200TCPDG1BEC 配电板 装有黑色塑料外壳 36个保险丝

Product description

The GE switchboard DS200TCPDG1BEC has 8 toggle switches, 36 fuses, and 4 signal line terminals. It also features 36 OK leds and a 10-pin connector. The GE switchboard DS200TCPDG1BEC is equipped with a black plastic housing and can accommodate 36 fuses. The fuse is located vertically in the tank for easy access and replacement when needed. To replace the fuse on the board, twist the top of the container to open it. The top is still fixed to the can for ease of use. Use your thumb and one finger to remove the fuse from the can. The best practice is to discard blown fuses so as not to accidentally re-insert them into the can on the circuit board. To install a new fuse, align the fuse with the opening and place it in the can. Either end of the fuse can be placed in the tank. Place the top on the jar and twist to close it.

To determine that a fuse is blown and needs to be replaced, consider that a visual inspection of the fuse is not possible because it is located in the tank. However, there is an LED next to each fuse indicating that the fuse is normal. When lit, the green LED indicates that the components in the fuse are intact and are protecting the board circuit. When closed, the fuse is blown or the circuit board is not powered. If all leds are off, you may suspect that the motherboard is not powered on.
