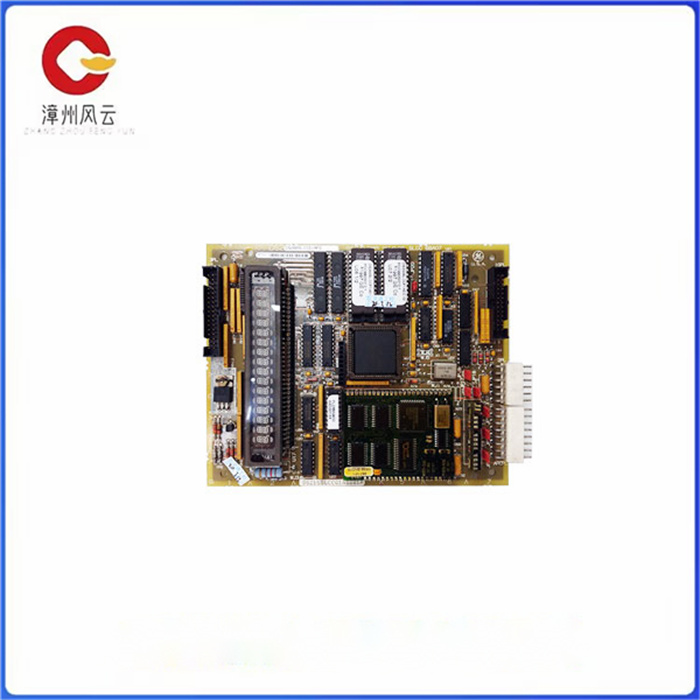

DS200SLCCG1AFG GE燃机卡 通信板 多功能系列DCS系统

DS200SLCCG1AFG GE燃机卡 通信板 多功能系列DCS系统

产品描述

DS200SLCCG1AFG更换的 LAN 通信板只是 AX Control 库存中众多可用版本中的一个。该板设计用于GE的Mark V涡轮机控制系统，旨在控制和管理工业燃气轮机和蒸汽轮机系统。MK V 控制系统可以设置为单工或 TMR（三重模块化冗余）系统。客户必须知道DS200SLCC板通常不包括位于 U6 和 U7 EPROM 中的软件，因为该板出厂时这些插槽是空的。如果您不打算从旧电路板上移除EPROM以转移到新电路板，请订购带有EPROM的替换电路板（DS215级别）。

DS200SLCCG1AFG板安装在SDCC板上的支架上，并通过KPPL连接器与该卡上的键盘连接。

DS200SLCCG1AFG具有平行于一条边的 16 位字母数字显示屏。该显示器的末端附近有四个柱子（ST1 到 ST4），用于保护其玻璃尖端。这些帖子看起来像跳线，但不应与板上其他地方的跳线混淆。可以修改跳线设置以更改RS-422 DLAN驱动器或隔离DLAN电路。此外，J19 跳线用于将晶体连接到处理器。其他跳线设置可在相关手册和用户指南中的表格中找到。

DS200SLCCG1AFG GE燃机卡 通信板 多功能系列DCS系统

Product description

The DS200SLCCG1AFG replacement LAN communication board is just one of many available versions in AX Control's inventory. The board is designed for GE's Mark V turbine control system, which is designed to control and manage industrial gas turbine and steam turbine systems. The MK V control system can be set up as a simplex or TMR (Triple modular Redundancy) system. Customers must be aware that DS200SLCC boards generally do not include software located in the U6 and U7 EPROMs because these slots are empty when the board is shipped. If you do not plan to remove the EPROM from the old board to transfer to the new board, order a replacement board with an EPROM (DS215 level).

The DS200SLCCG1AFG board is mounted on a stand on the SDCC board and is connected to the keyboard on the card via a KPPL connector.

The DS200SLCCG1AFG has a 16-bit alphanumeric display parallel to one side. Near the end of the display are four pillars (ST1 to ST4) that protect its glass tips. These posts look like jumpers, but should not be confused with jumpers elsewhere on the board. You can modify the jumper Settings to change the RS-422 DLAN driver or isolate the DLAN circuit. In addition, the J19 jumper is used to connect the crystal to the processor. Additional jumper Settings can be found in the tables in the relevant manuals and user guides.
