DS200CTBAG1ADD GE MARK V端子板 印刷电路板

DS200CTBAG1ADD GE MARK V端子板 印刷电路板

DS200CTBAG1ADD是专为GE Mark V Speedtronic系统设计的端子板。Speedtronic 系列由通用电气创建，用于控制大型和小型燃气轮机和蒸汽轮机系统。MKV 可以采用单工或 TMR/三重模块化冗余架构进行设计，以满足互联涡轮系统的需求。这些电路板不再由 GE 制造和分销，而是可以通过 AX Control 作为经过全面测试和翻新的型号购买。

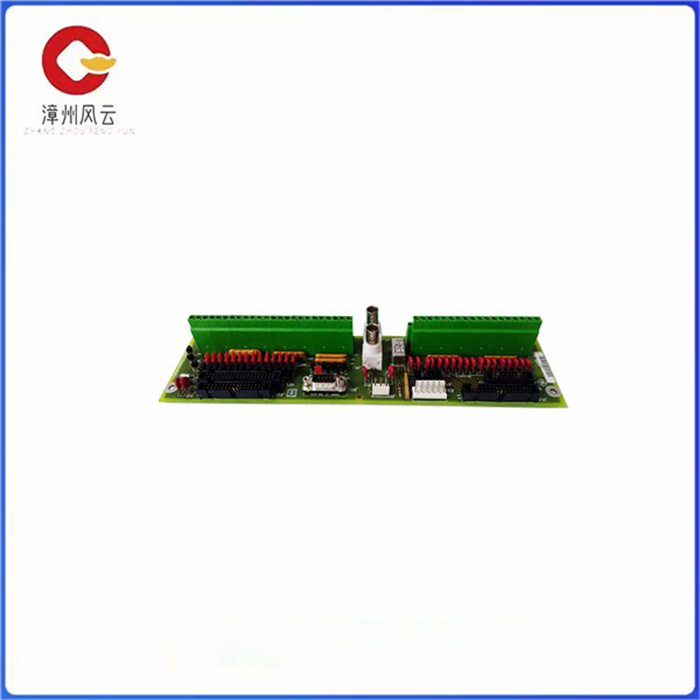

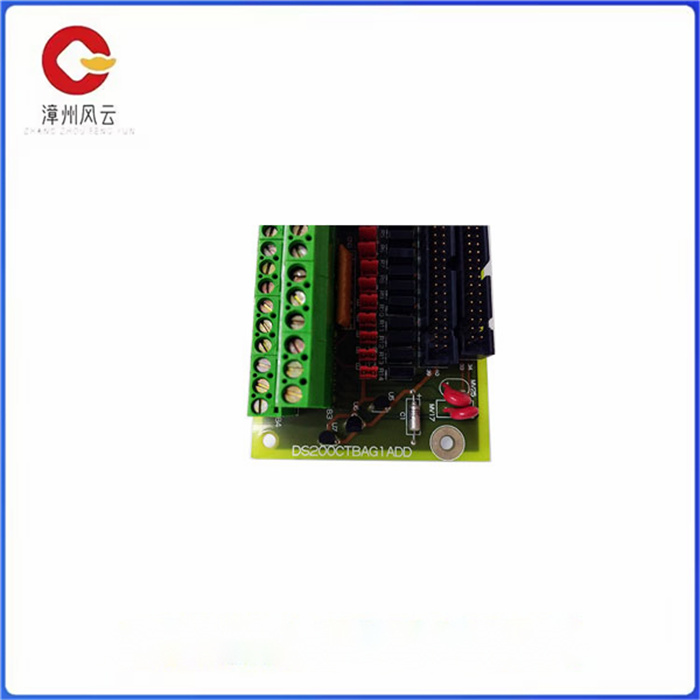

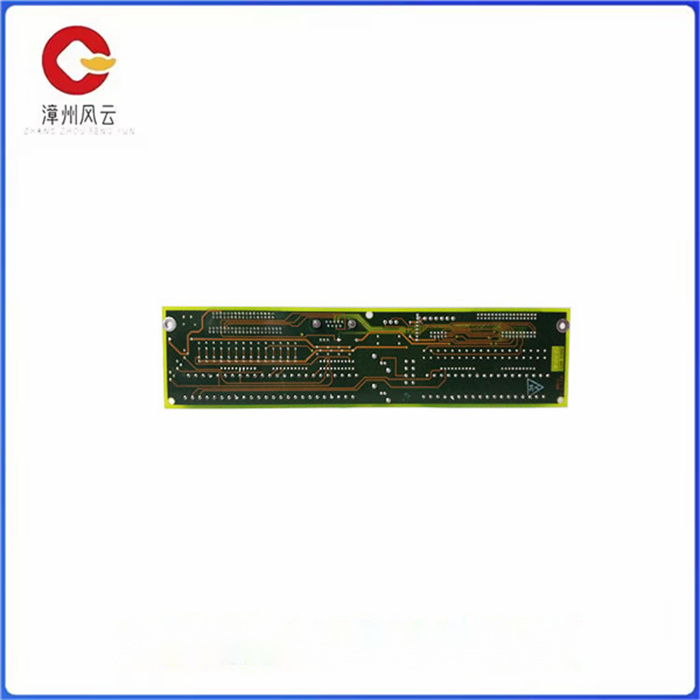

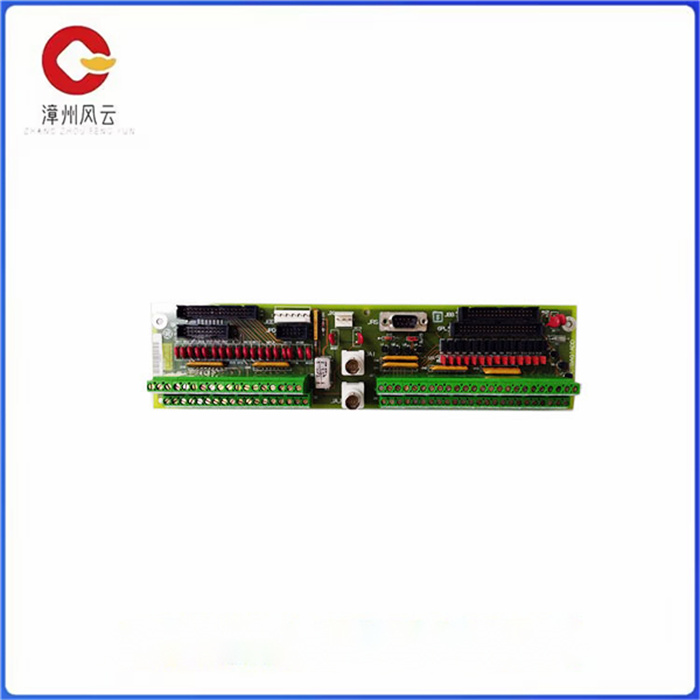

DS200CTBAG1ADD是一个长而窄的电路板，只有几种类型的组件。它在每个角和长边上钻孔，以便安装硬件和其他连接。其中两个钻孔用导电材料环绕。该板上标有识别代码，包括板 ID 号和公司徽标。

DS200CTBAG1ADD是模拟端接模块。它通常位于 <R5> 内核内。该板有多个连接器，包括两个 COREBUS 连接器（JAI 和 JAJ）。该DS200CTBAG1ADD有两个双堆叠端子排，位于一个长板边缘，每个端子排上有多个连接器。有 5 个垂直引脚电缆连接器、2 个垂直引脚接头连接器和一个 9 针公串行连接器。

DS200CTBAG1ADD上的其他组件包括电阻网络阵列、继电器、晶体管、二十多个金属氧化物压敏电阻 （MOV）、十几个跳线开关，以及许多电容器和电阻器。

DS200CTBAG1ADD GE MARK V端子板 印刷电路板

DS200CTBAG1ADD is a terminal board designed for GE Mark V Speedtronic systems. The Speedtronic family was created by General Electric to control large and small gas and steam turbine systems. MKV can be designed with simplex or TMR/ triple modular redundancy architecture to meet the needs of interconnected turbine systems. The boards are no longer manufactured and distributed by GE, but can be purchased as fully tested and refurbished models through AX Control.

The DS200CTBAG1ADD is a long, narrow circuit board with only a few types of components. It drilled holes in each corner and long side to allow for the installation of hardware and other connections. Two of the holes are surrounded by conductive material. The board is marked with an identification code, including the board ID number and the company logo.

DS200CTBAG1ADD is an analog terminal module. It is usually located within the <R5> kernel. The board has multiple connectors, including two COREBUS connectors (JAI and JAJ). The DS200CTBAG1ADD has two double-stacked terminal blocks located at the edge of a longboard with multiple connectors on each terminal block. There are 5 vertical pin cable connectors, 2 vertical pin connector connectors, and a 9-pin male serial connector.

Other components on the DS200CTBAG1ADD include a resistor network array, relays, transistors, more than two dozen metal oxide varistors (MOV), a dozen jumper switches, and many capacitors and resistors.
