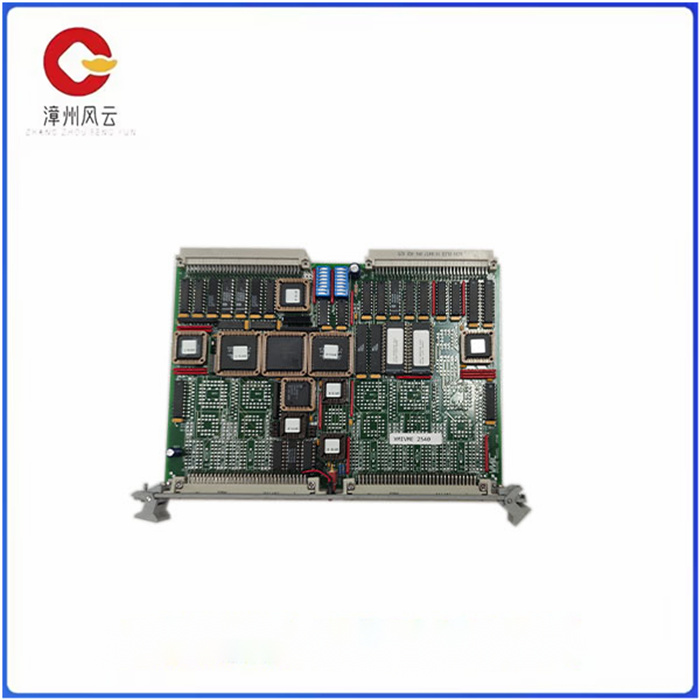

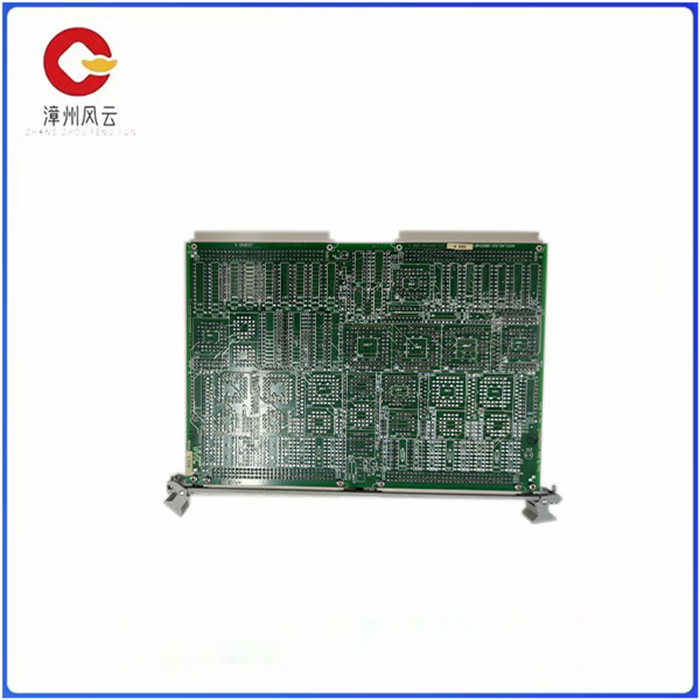

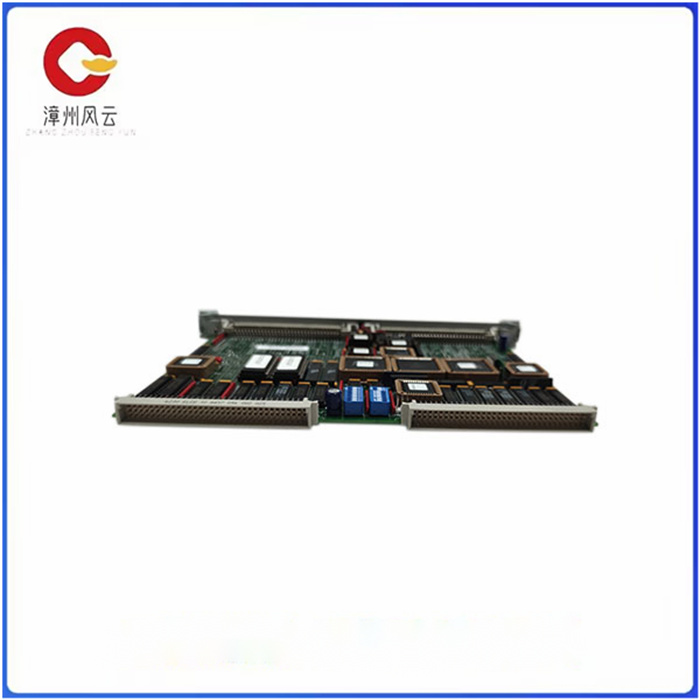

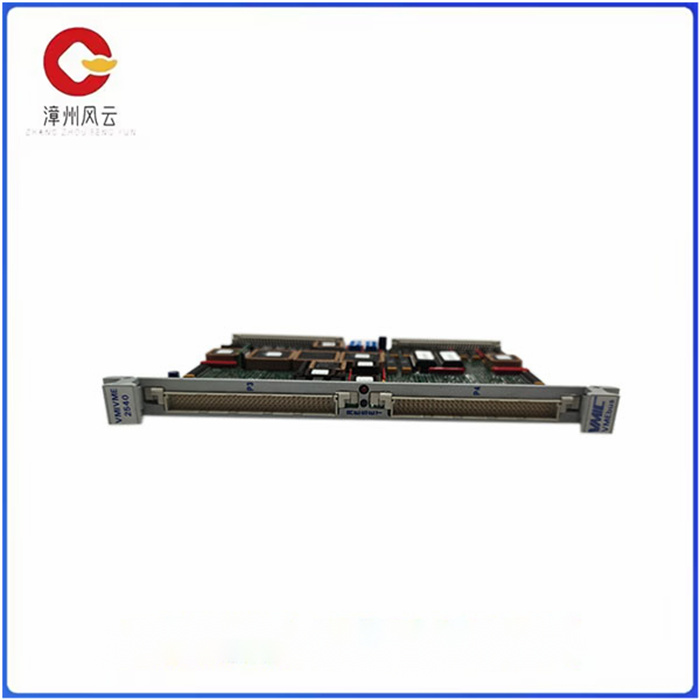

VMIVME-2540 GE 具有作为智能计数器控制器

VMIVME-2540 GE 具有作为智能计数器控制器

VMIVME-2540由通用电气公司的工业自动化生产系列开发和生产。这些模型后来被Abaco系统公司购买。该系列被称为VMIC/通用电气Fanuc板，设计用于工业生产线的多种应用，如CPU管理和输入输出通信。

VMIVME-2540是VMIC/通用电气Fanuc板的特定模块之一，具有作为智能计数器控制器运行的能力。该设备能够计数高达4g的事件。它配备了一系列24个离散输出通道，能够通过各种板载跳线模块选项进行编程。这些跳线能够在很宽的电压范围内工作。

24个输出通道旨在提供12位分辨率。它们能够以+/-10v的速率提供和吸收高达10毫安的电流。

为了使用VMIVME-2540进行离线测试，模拟输入被设计为与外部电路断开。

VMIVME-2540模块设计有一个VMEbus从机接口，能够提供4、8、16或24通道的数字信号测量选项和信号生成功能。这些可能的测量和信号输出功能由集成系统时序控制器阵列以及一系列相关接口逻辑来应用。

AX Control Inc .的工业自动化设备库存中有VMIVME-2540模块。VMIC/通用电气发那科生产线作为修复和完全修复的旧硬件库存。

VMIVME-2540 GE 具有作为智能计数器控制器

The VMIVME-2540 is developed and produced by GE's Industrial Automation production family. These models were later purchased by Abaco Systems. Known as VMIC/ GE Fanuc boards, the series is designed for a variety of applications in industrial production lines, such as CPU management and input/output communication.

The VMIVME-2540 is one of the specific modules of the VMIC/ GE Fanuc board with the ability to operate as an intelligent counter controller. The device is capable of counting up to 4 gigabytes of events. It is equipped with a series of 24 discrete output channels that can be programmed with various onboard jumper module options. These jumpers are capable of operating over a wide voltage range.

The 24 output channels are designed to provide 12-bit resolution. They are capable of delivering and absorbing up to 10 milliamps of current at a rate of +/-10v.

For off-line testing with the VMIVME-2540, the analog input is designed to be disconnected from the external circuit.

The VMIVME-2540 module is designed with a VMEbus slave interface that provides 4, 8, 16 or 24-channel digital signal measurement options and signal generation capabilities. These possible measurement and signal output functions are applied by an integrated system timing controller array and a series of associated interface logic.

AX Control Inc. has VMIVME-2540 modules in its industrial automation equipment inventory. The VMIC/ GE Fanuc production line serves as an inventory of restored and fully restored old hardware.
