IS420UCSBH4A GE  控制器 用于高速应用中的Mark VIe

IS420UCSBH4A GE  控制器 用于高速应用中的Mark VIe

产品说明

控制器IS420UCSBH4A是通用电气公司为Mark VIe系列生产的另一款UCSB控制器。该控制器被描述为能够在1066 MHz EP80579 Intel处理器上运行的EX2100e、LS2100e和Mark VIe系列中工作。EP80579处理器用于帮助要求高可靠性和高速度的应用。除了上面提到的所使用的处理器之外，该型号与以前的UCSB控制器相似，所有控制器都使用相同的处理器类型，但是工作在不同的MHz上。

IS420UCSBH4A控制器类似于Mark VIe系列中的UCSC控制器，两组控制器之间的区别在于硬件，但它们在控制器的优势方面有一些相似之处。这种控制器的一些优点是，它是一个单一的模块，并具有闪存，可以根据用户的需要方便地更新。操作该控制器所需的场所和认证与以前的型号相同，控制器可用于危险和非危险场所，并通过UL E207685和UL德姆科12 ATEX 1114875X认证。关于位置及其所需认证的所有信息可从第112页的GEH-6725马克VIe/VIeS控制设备HazLoc说明指南中获得。

IS420UCSBH4A GE  控制器 用于高速应用中的Mark VIe

Product description

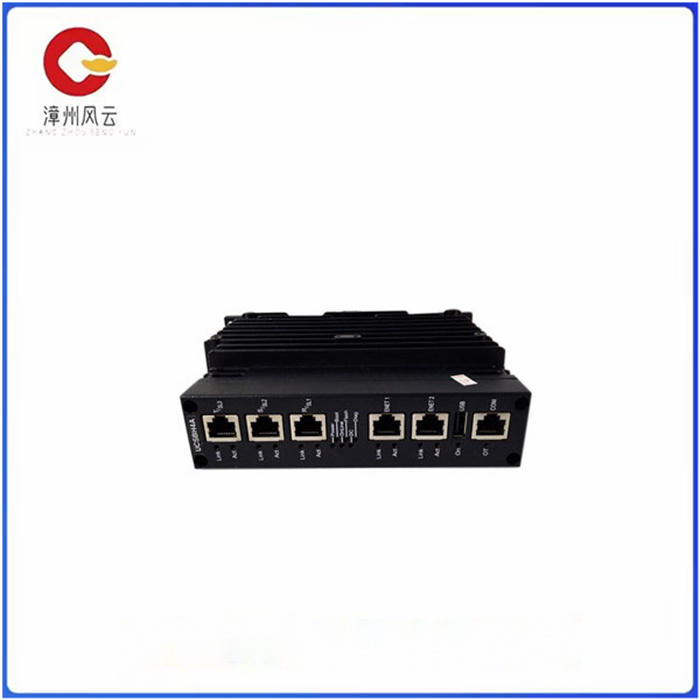

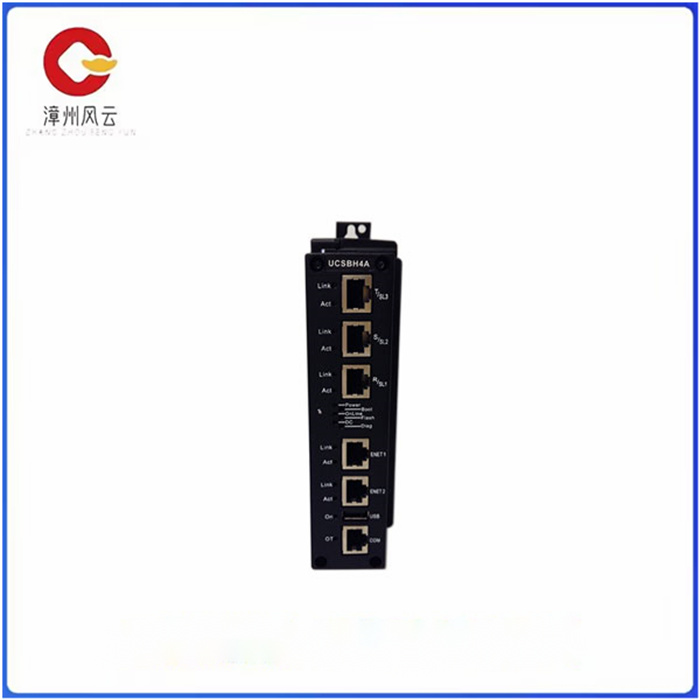

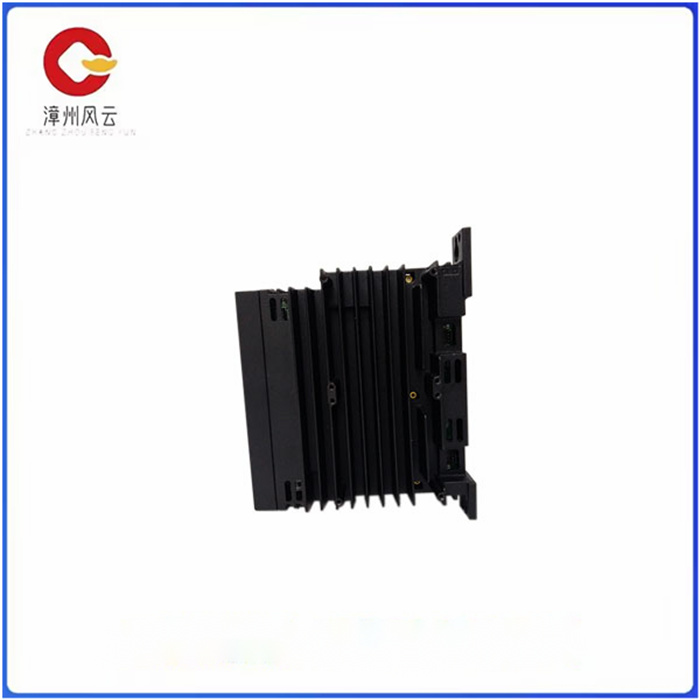

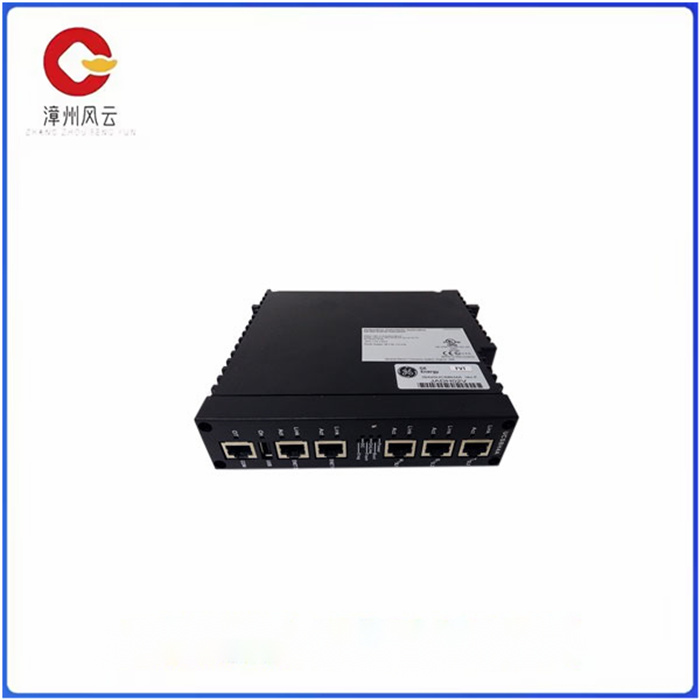

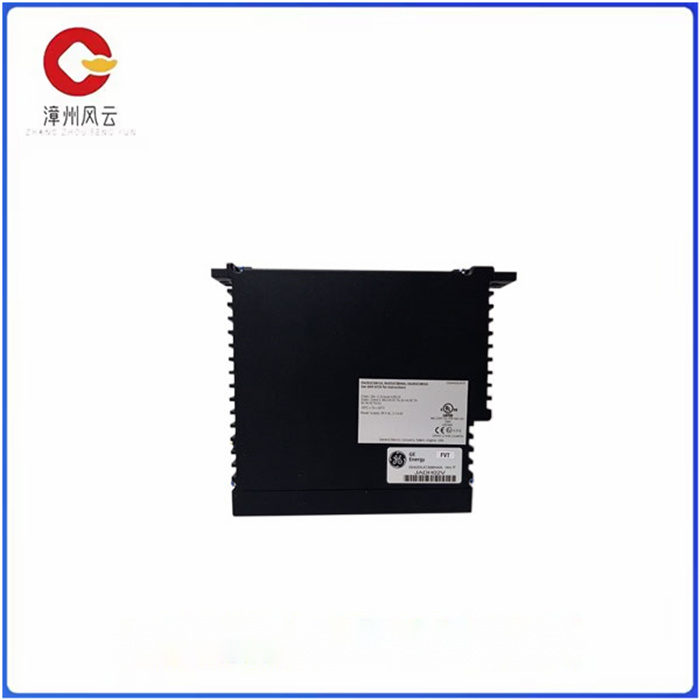

The IS420UCSBH4A controller is another UCSB controller produced by General Electric for the Mark VIe series. The controller is described as being able to work in the EX2100e, LS2100e and Mark VIe series running on 1066 MHz EP80579 Intel processors. The EP80579 processor is designed to help applications that require high reliability and speed. With the exception of the processors used mentioned above, this model is similar to previous UCSB controllers, all of which use the same processor type, but operate on different MHz.

The IS420UCSBH4A controller is similar to the UCSC controller in the Mark VIe series, the difference between the two sets of controllers is in the hardware, but they have some similarities in terms of the advantages of the controller. Some advantages of this controller are that it is a single module and has flash memory that can be easily updated according to the needs of the user. The premises and certifications required to operate this controller are the same as previous models, the controller can be used in hazardous and non-hazardous locations and is certified by UL E207685 and UL Demco 12 ATEX 1114875X. All information on the location and its required certification can be obtained from the GEH-6725 Mark HazLoc Instructions Guide for VIe/VIeS Control devices on page 112.

IS420UCSBH4A GE  控制器 用于高速应用中的Mark VIe
