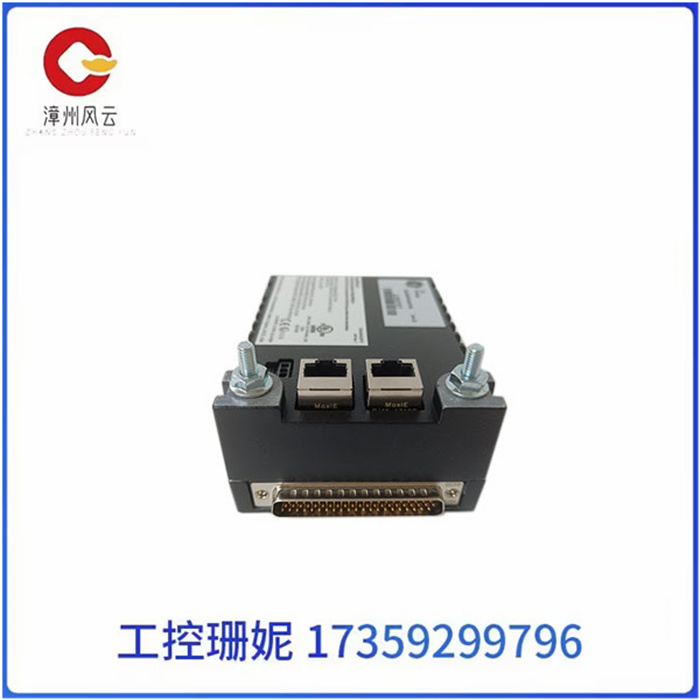

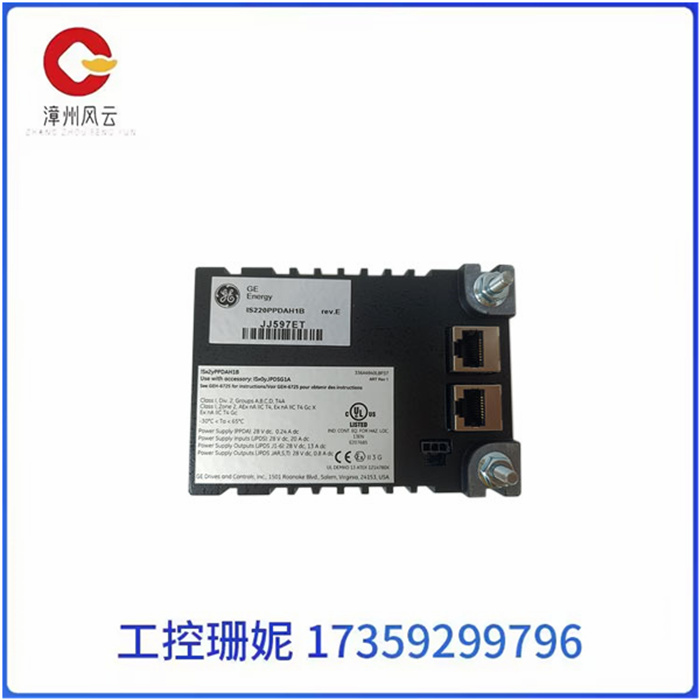

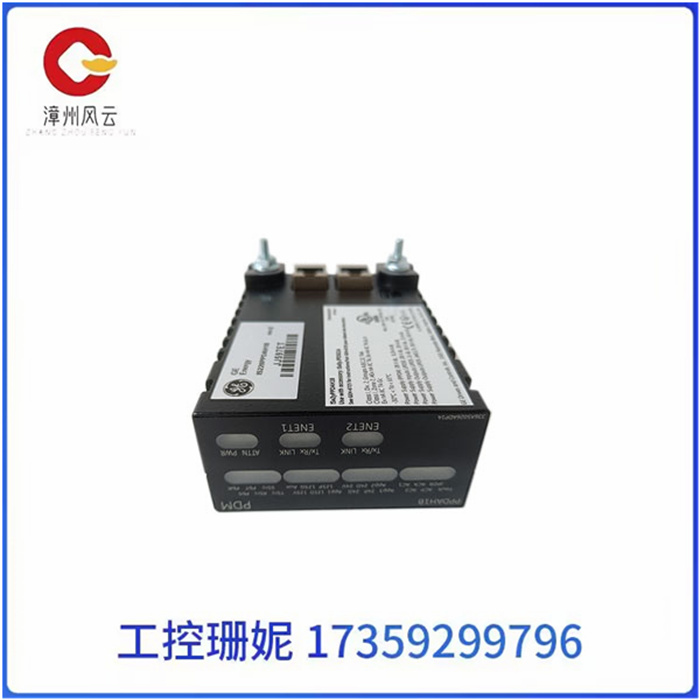

IS220PPDAH1B GE 控制器IO模块CPU处理器模块电源模块

IS220PPDAH1B GE 控制器IO模块CPU处理器模块电源模块

IS220PPDAH1B板是通用电气为Mark VIe系统生产的配电系统反馈模型。该模型用于调节板反馈信号，也可以为附加控制器提供以太网接口。这个包的反馈被安排为即插即用，它将使用它插入的电子id来确定所附电源分布模型的功率。来自功率分布模型的信息将继续用于占用IONet输出，以提供来自连接的正确反馈。

虽然IS220PPDAH1B包兼容JPDC、JPDS、JPDM和JPDG电源板，但它只兼容来自JPDB、JPDF和JPDE板的反馈信号。通常这种PPDA封装安装在以下电路板之一;JPDM、JPDC或JPDS。通过引脚对引脚连接器的接线，使用50引脚带状电缆跳线，该包可以潜在地连接到更多的板。

IS220PPDAH1B GE 控制器IO模块CPU处理器模块电源模块

The IS220PPDAH1B board is a distribution system feedback model produced by General Electric for the Mark VIe system. This model can be used to adjust the feedback signal of the board, and can also provide Ethernet interface for additional controllers. The feedback of this package is arranged as plug and play, which will use the electronic id it plugs in to determine the power of the attached power distribution model. The information from the power distribution model will continue to be used to occupy the IONet output to provide the correct feedback from the connection.

While the IS220PPDAH1B package is compatible with JPDC, JPDS, JPDM, and JPDG power boards, it is only compatible with feedback signals from JPDB, JPDF, and JPDE boards. Typically, this PPDA package is mounted on one of the following boards; JPDM, JPDC, or JPDS. By wiring a pin-to-pin connector, using a 50-pin ribbon cable jumper, the package can potentially be connected to more boards.

IS220PPDAH1B GE 控制器IO模块CPU处理器模块电源模块
