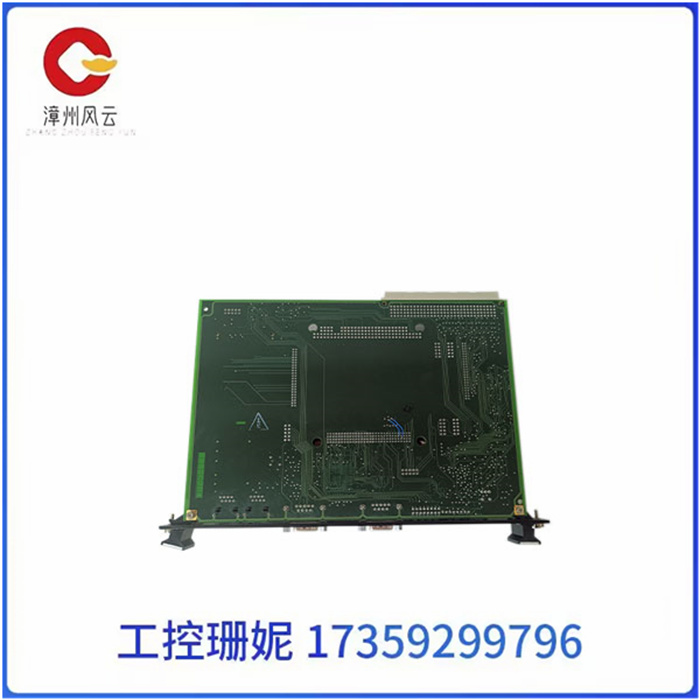

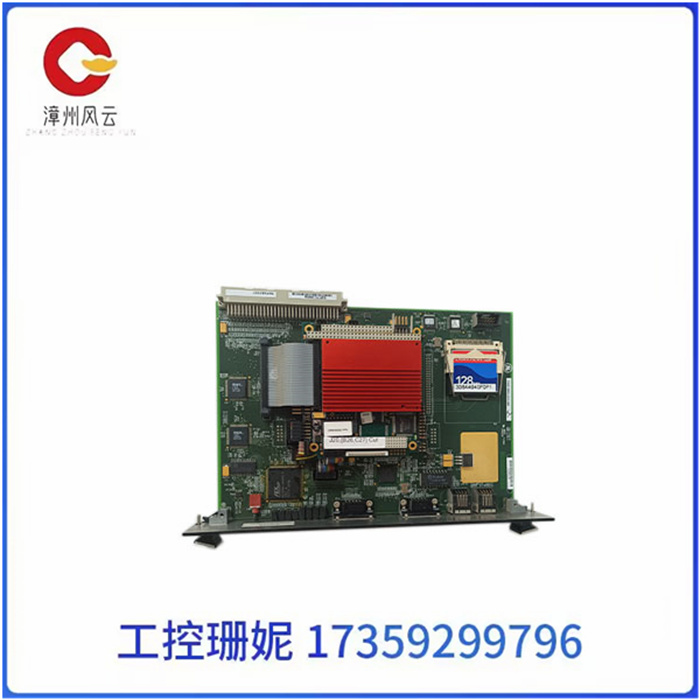

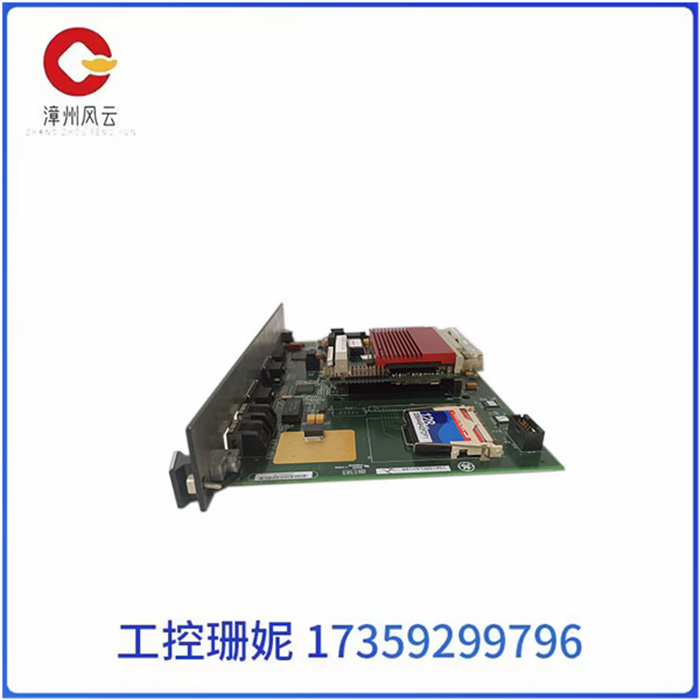

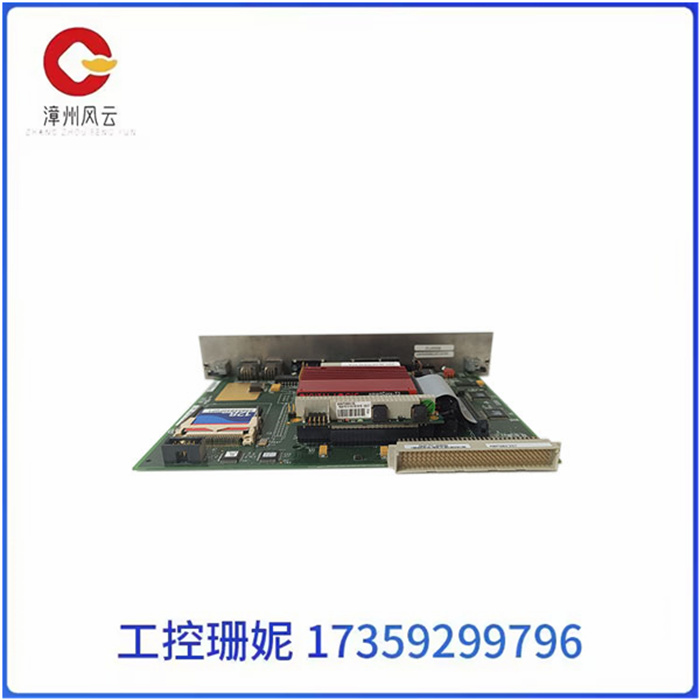

IS215ACLEH1B GE 燃机卡件系统工控模块

IS215ACLEH1B GE 燃机卡件系统工控模块

I/O 点和内部布尔强制

创新系列变频器的应用控制

非易失性闪存

在线应用程序配置加载

控制块

IS215ACLEH1B板使用以太网连接，该连接使用由主板上的 BIOS 功能初始化的 IRQ 5。ACLE 板上的以太网连接是位于 ACL 板前面板的 10baseT 或 RJ45 插孔。作为基于微处理器的控制，该板具有外围组件互连 （PCI） 控制器，该控制器将管理不同的输入和输出、与 PCI 总线之间的配置传输以及管理各种存储器功能。

IS215ACLEH1B型号还具有一个 128 KB 的 L2 缓存，该缓存与 PCI 控制器一起使用并由其控制，该缓存设置为 152 NC 缓存行，该行将填充 L1 和 L2 缓存之间的行。ACLE板的另一个特点是闪存设备，该存储设备位于目标接口的本地总线侧，称为设备1，该设备只能以字节模式访问。

IS215ACLEH1B GE 燃机卡件系统工控模块

I/O points and internal Boolean coercion

Application control of innovative series inverter

Non-volatile flash memory

Online application configuration loading

Control block

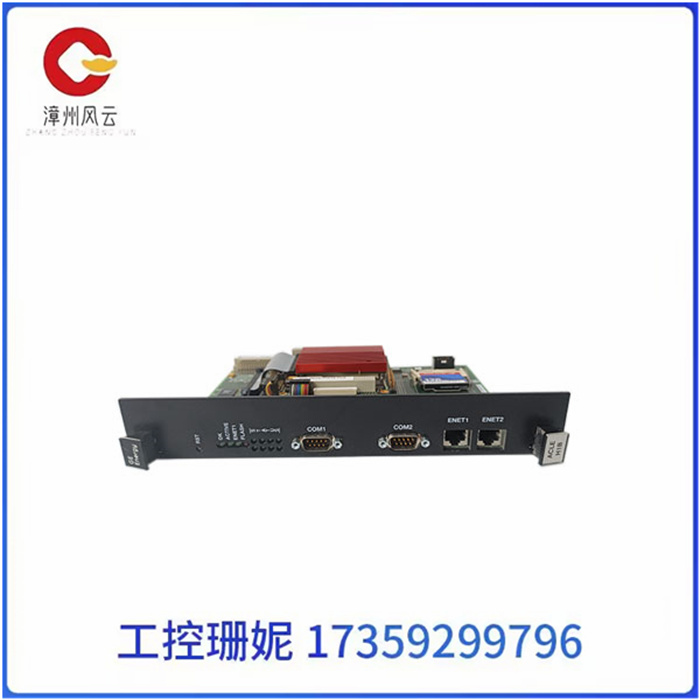

The IS215ACLEH1B board uses an Ethernet connection that uses IRQ 5 initialized by the BIOS function on the motherboard. The Ethernet connection on the ACLE board is a 10baseT or RJ45 jack located on the front panel of the ACL board. As a microprocessor-based control, the board has a Peripheral Component Interconnection (PCI) controller that will manage different inputs and outputs, configuration transfers to and from the PCI bus, and manage various memory functions.

The IS215ACLEH1B model also has a 128 KB L2 cache that is used with and controlled by the PCI controller, which is set to 152 NC cache rows that will fill the rows between the L1 and L2 caches. Another feature of the ACLE board is a flash device, a storage device located on the local bus side of the target interface called Device 1, which can only be accessed in byte mode.

IS215ACLEH1B GE 燃机卡件系统工控模块
