IS200VVIBH1CAC GE 工控应用电气DCS/PLC系统通讯模块

IS200VVIBH1CAC GE 工控应用电气DCS/PLC系统通讯模块

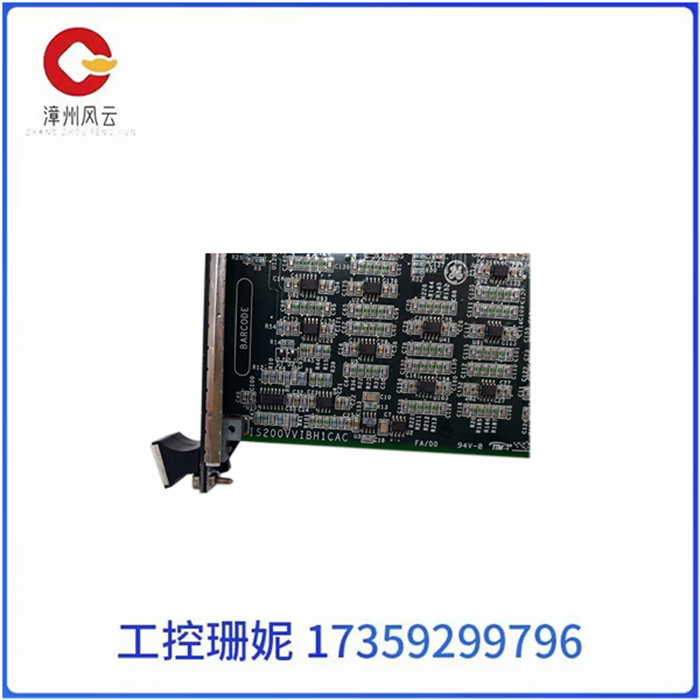

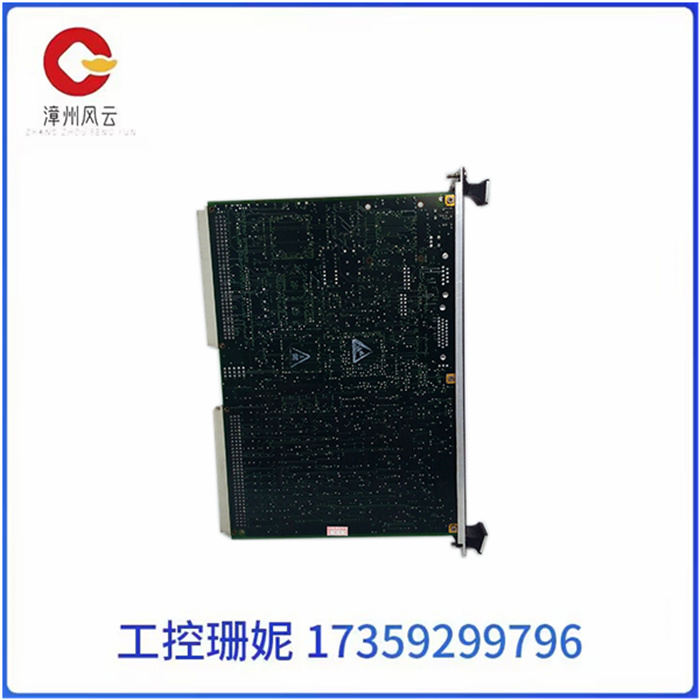

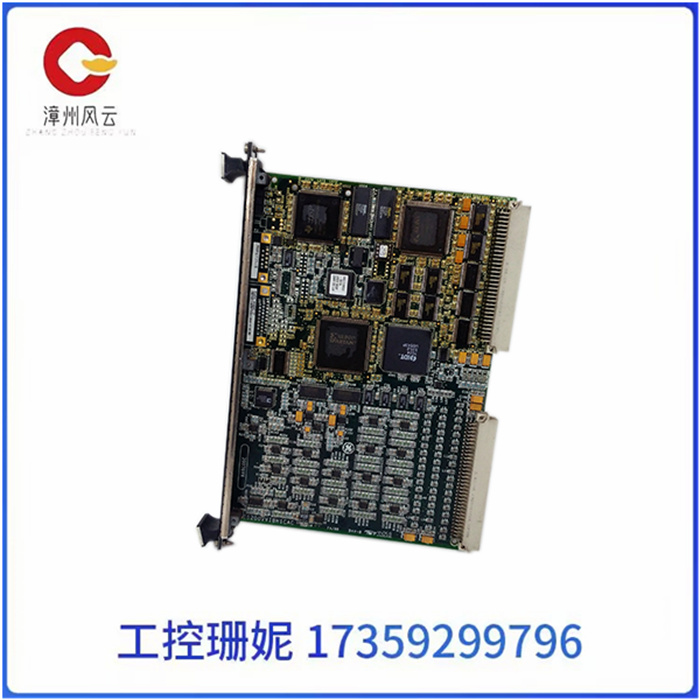

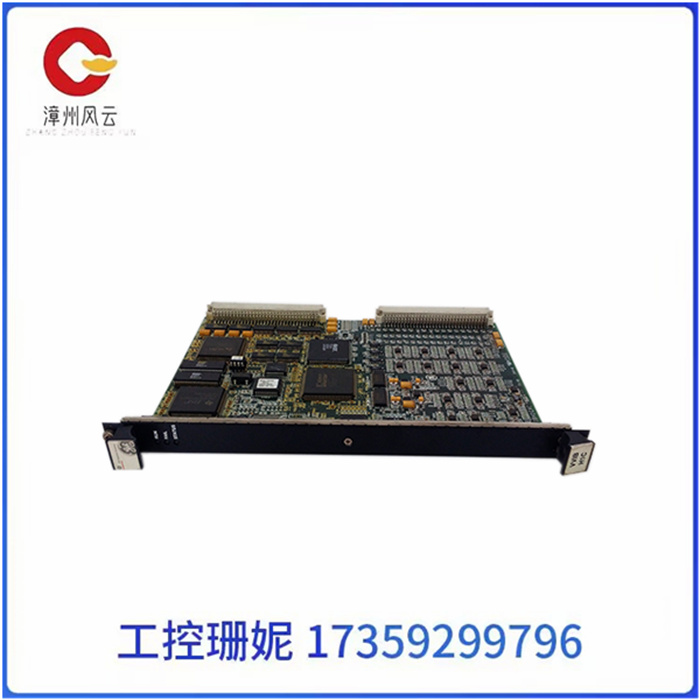

IS200VVIBH1CAC是为Mark VI系统制造的GE印刷电路板。Mark VI是通用电气以“Speedtronic”名称发布的燃气轮机和蒸汽轮机管理系统之一。

IS200VVIBH1CAC用作振动监测板。该PCB处理来自DVIB或TVIB端子板的振动探针信号。这些探针直接连接到接线板。多达14个探针可以连接到一个板。IS200VVIBH1CAC将这些信号数字化，并通过VME总线将其发送至控制器。振动探头用于四种保护功能，包括：振动转子偏心度。胀差。转子轴向位置连接到IS200VVIBH1CAC的端子板支持Bently Nevada提供的地震、Proximitor、Velomitor和加速计探头。在Simplex或TMR模式下，这些探头的电源均来自IS200VVIBH1CAC板。

IS200VVIBH1CAC GE 工控应用电气DCS/PLC系统通讯模块

The IS200VVIBH1CAC is a GE printed circuit board manufactured for the Mark VI system. Mark VI is one of the gas turbine and steam turbine management systems released by General Electric under the name "Speedtronic".

The IS200VVIBH1CAC is used as a vibration monitoring board. The PCB processes vibration probe signals from DVIB or TVIB terminal boards. These probes are connected directly to the patch board. Up to 14 probes can be attached to a single board. The IS200VVIBH1CAC digitizes these signals and sends them to the controller via the VME bus. The vibration probe is used for four protection functions, including: vibration rotor eccentricity. Differential expansion. The terminal board connected to the IS200VVIBH1CAC in the axial position of the rotor supports seismic, Proximitor, Velomitor and accelerometer probes provided by Bently Nevada. In Simplex or TMR mode, these probes are powered by the IS200VVIBH1CAC board.

IS200VVIBH1CAC GE 工控应用电气DCS/PLC系统通讯模块
