IS200VSVOH1B GE 三相驱动器

IS200VSVOH1B GE 三相驱动器

IS200VSVOH1B 用作伺服控制板。该板通过控制四个电动液压伺服阀来驱动燃料/蒸汽阀。该板还提供脉速流量输入、LVDT 激励和 LVDT 位置反馈。IS200VSVOH1B可用于三重冗余系统和单工系统。

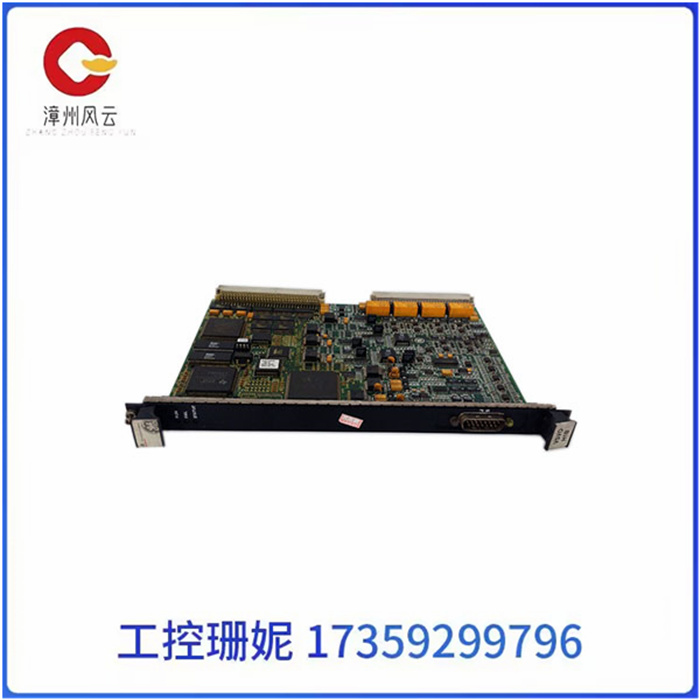

IS200VSVOH1B有一个连接到PCB的单插槽前面板。此面板包括电缆连接器 （J5） 以及用于状态信息的 LED 指示灯。前面板上的三个 LED 包括一个 RUN 指示灯（绿色）、一个故障指示灯（红色）和一个状态指示灯。状态指示灯通常未通电。但是，如果存在报警条件，此 LED 将通电并显示为稳定的橙色。

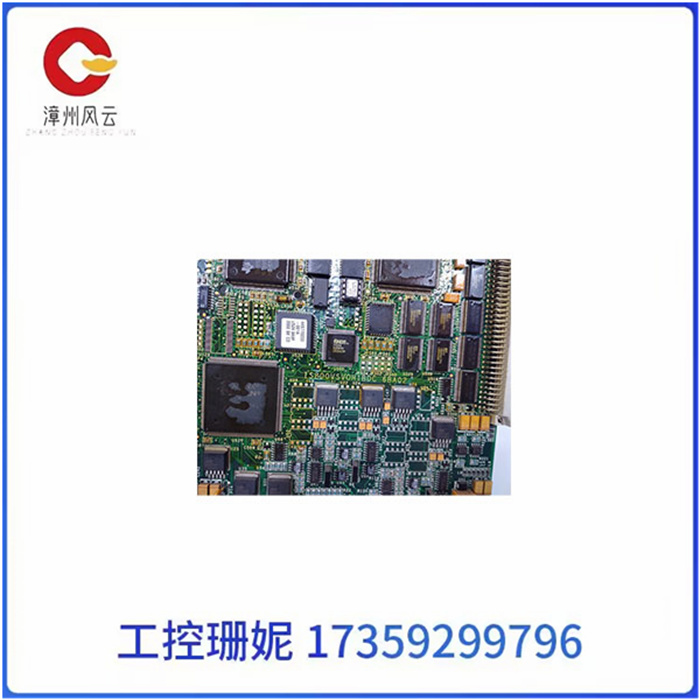

IS200VSVOH1B 有六个连接器，包括两个背板 （P1/P2） 和四个由导电走线制成的连接器（P3 到 P6）。该板包括四个继电器（K1 到 K4）。这些组件中的每一个在其顶面上都有一个打印的图表。该板装有电阻器、电容器和TP测试点。它还具有电感磁珠（L1-L10）。该板有七十多个集成电路。

IS200VSVOH1B GE 三相驱动器

IS200VSVOH1B is used as servo control board. The board drives the fuel/steam valve by controlling four electro-hydraulic servo valves. The board also provides pulse velocity flow input, LVDT excitation, and LVDT position feedback. The IS200VSVOH1B can be used in triple redundant systems and simplex systems.

The IS200VSVOH1B has a single slot front panel connected to the PCB. This panel includes a cable connector (J5) and an LED indicator for status information. The three leds on the front panel include a RUN indicator (green), a fault indicator (red), and a status indicator. The status indicator is usually not powered on. However, if an alarm condition is present, this LED will be powered on and display as a stable orange color.

The IS200VSVOH1B has six connectors, including two backplanes (P1/P2) and four connectors made of conductive wires (P3 to P6). The board includes four relays (K1 to K4). Each of these components has a printed chart on its top surface. The board is equipped with a resistor, capacitor and TP test point. It also has an inductive magnetic bead (L1-L10). The board has more than seventy integrated circuits.

IS200VSVOH1B GE 三相驱动器
