IS200VCRCH1B GE 通信模块

IS200VCRCH1B GE 通信模块

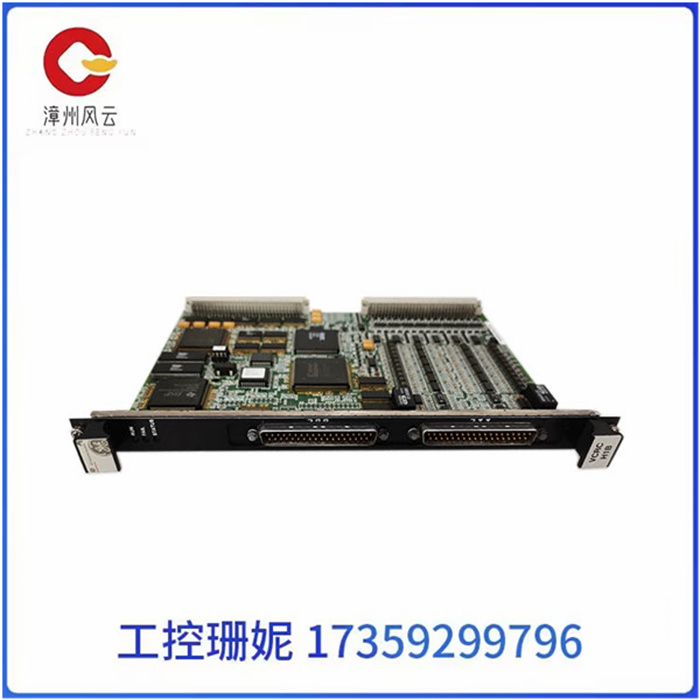

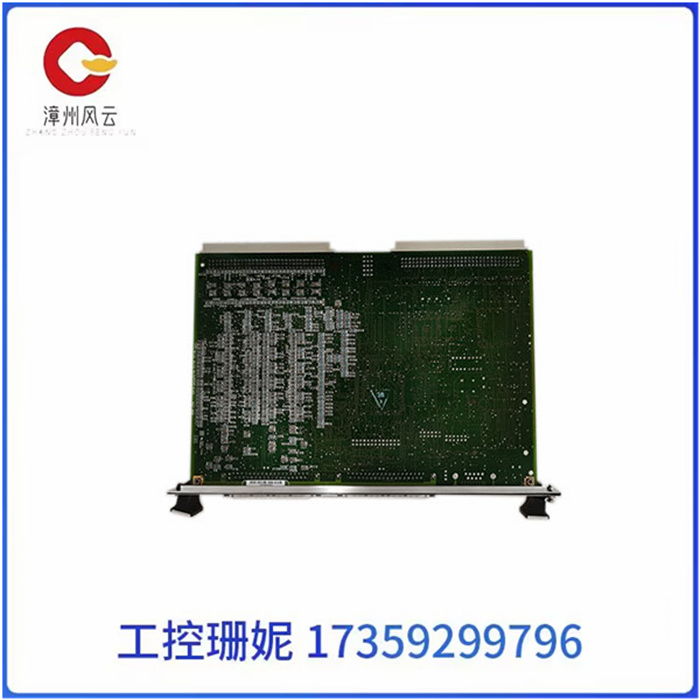

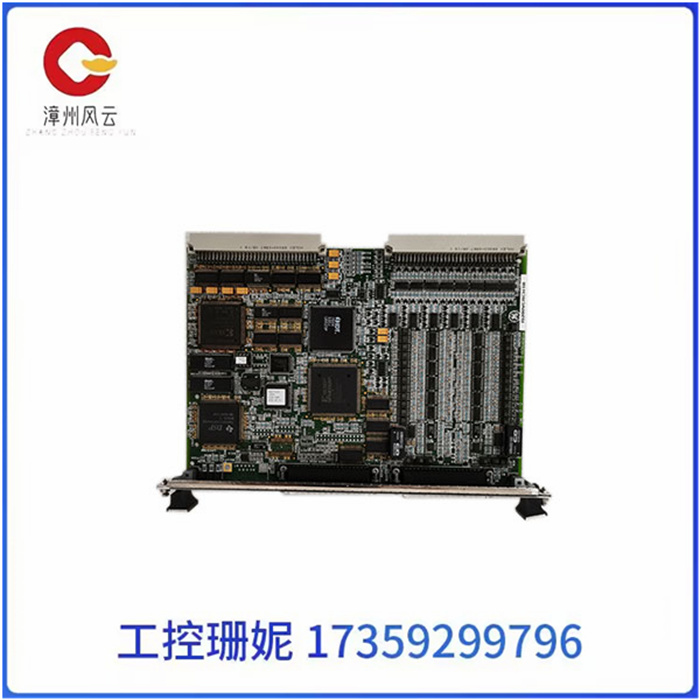

燃气轮机控制系统中使用的Mark VI 系列的一部分。触点输入/继电器输出板接受 48 个离散输入，并通过其随附的子板管理来自总共四端子板的 24 个继电器输出。双宽 VCCC 模块安装在 VME I/O 机架中。该机架中提供了两组 J3/J4 连接，用于连接到 TBCI 和 TRLY 端子板。

接点输入

触点输入端子板 (TBCI) 用于前 24 个干触点输入；输入 25-48 需要第二个端子板。触点提供直流电源。端子板通过带有模制插头的电缆连接到装有 VCCC 处理器板的 VME 机架。对于监控关键涡轮机变量的输入，可以进行每秒 1 毫秒的高速扫描和记录。事件序列 (SOE) 记录器可报告低至 6 ms 的接触颤动和脉冲宽度，以及时间分辨率为 1 ms 的所有接触打开和关闭。

继电器输出

TRLYH1B 中存储有 12 个插入式磁继电器。跳线可用于设置前 6 个继电器电路，用于驱动外部螺线管或干式 C 型触点输出。对于现场电磁阀电源，可以提供标准 125 V 直流或 115 V 交流电源以及可选的 24 V 直流电源，并配有单独的跳线可选熔断器和板载抑制。随后的五个继电器 (7-11) 具有未通电的独立 C 型触点。输出 12 使用隔离的 C 型触点，用于点火变压器等特殊应用。

IS200VCRCH1B GE 通信模块

Part of the Mark VI series used in gas turbine control systems. The contact input/relay output board accepts 48 discrete inputs and manages 24 relay outputs from a total of four terminal boards through its accompanying subboards. The double-width VCCC module is installed in the VME I/O rack. Two sets of J3/J4 connections are provided in the rack for connection to TBCI and TRLY terminal boards.

Contact input

Contact input terminal board (TBCI) for the first 24 dry contact inputs; Input 25-48 requires a second terminal board. Contact provides DC power. The terminal board is connected to the VME rack containing the VCCC processor board by a cable with a molded plug. For inputs that monitor key turbine variables, high-speed scanning and recording at 1 millisecond per second can be performed. Event Sequence (SOE) recorders report contact flutter and pulse widths as low as 6 ms, as well as all contact openings and closures with a time resolution of 1 ms.

Relay output

Twelve plug-in magnetic relays are stored in the TRLYH1B. Jumpers can be used to set up the first 6 relay circuits for driving external solenoids or dry C-contact outputs. For field solenoid power supplies, standard 125 V DC or 115 V AC power and optional 24 V DC power are available with individual jumper selectable fuses and on-board suppression. The five subsequent relays (7-11) have unenergized independent C-contacts. Output 12 Uses isolated C-contacts for special applications such as ignition transformers.
