IS200TREGH1B  GE 全新进口原装自动化设备

IS200TREGH1B  GE 跳闸紧急终端板 自动化设备

通用电气或通用电气创建了IS200TREGH1B作为跳闸紧急终端板。这是一种为Mark VI系列制造的印刷电路板或PCB。Mark VI是通用电气Mark系列的最新系列。这些系列是为蒸汽和燃气轮机的运行和自动化而设计的。

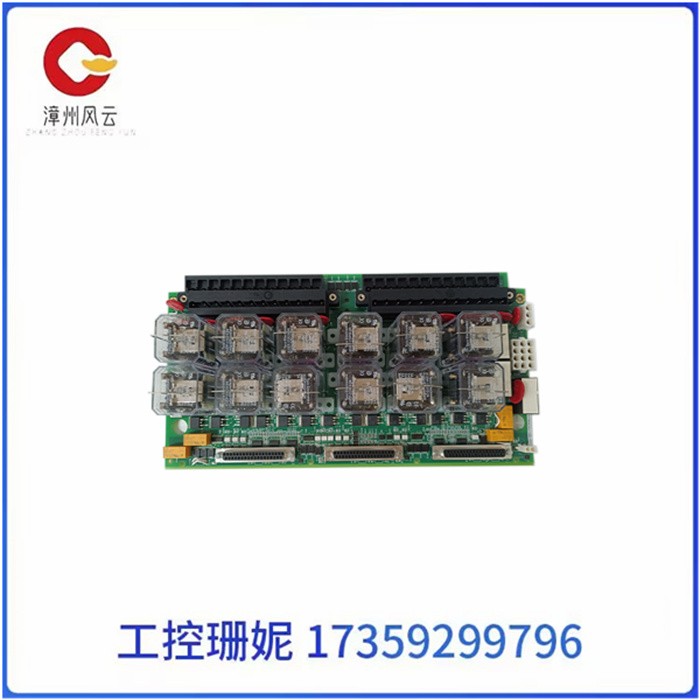

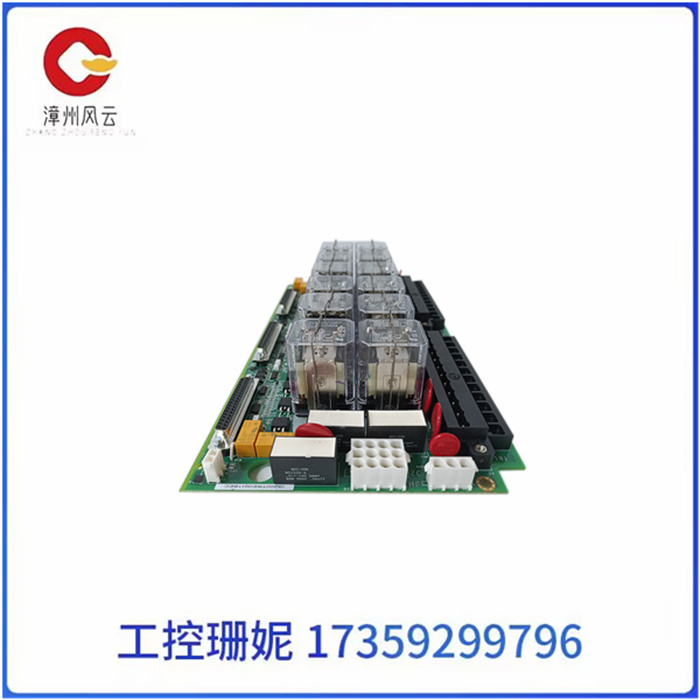

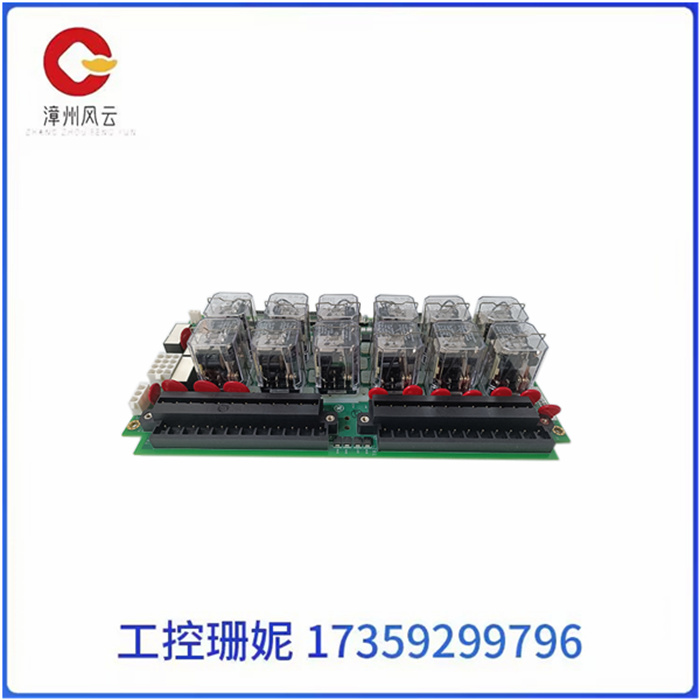

该设备上最引人注目的组件是一系列方形的变压器。这些变压器由透明塑料和银线覆盖。这些涵盖了有关组件的功能信息，例如部件号和电压。IS12TREGH200B上有十二（1）个这样的变压器，每条垂直线六（6）个变压器。两 （2） 个大的黑色接线端子占据了 IS200TREGH1B 左边缘的空间。接线端子共包含四十八 （48） 个由银金属制成的端子。这些端子在两 （2） 个端子块之间平均分配，每个端子块分配二十四 （24） 个。

IS200TREGH1B包含许多称为金属氧化物压敏电阻或MOV的组件。这些 MOV 是圆形和纯红色的。它们被放置在IS200TREGH1B的边缘。三 （3） 个白色跳线端口已放置在 IS200TREGH1B 的顶部边缘。这些端口之间共有十七 （17） 个端口。左侧的连接器具有三个端口，标识为 JH1。中间的连接器包含十二个标识为 J2 的端口，右侧的最后一个连接器具有两 （2） 个标识为 J1 的端口。

IS200TREGH1B  GE 跳闸紧急终端板 自动化设备

Ge or General Electric created the IS200TREGH1B as a trip emergency terminal board. This is a printed circuit board or PCB manufactured for the Mark VI series. The Mark VI is the latest in the General Electric Mark series. These series are designed for the operation and automation of steam and gas turbines.

The most striking component on the device is a series of square transformers. These transformers are covered with transparent plastic and silver wire. These cover functional information about the component, such as part number and voltage. There are twelve (1) such transformers on the IS12TREGH200B, six (6) transformers per vertical line. Two (2) large black terminals occupy the space on the left edge of the IS200TREGH1B. The terminal consists of forty-eight (48) terminals made of silver metal. These terminals are evenly distributed between two (2) terminal blocks, with twenty-four (24) allocated to each terminal block.

The IS200TREGH1B contains a number of components called metal oxide varistors or MOV. These MOV are round and solid red. They are placed on the edge of IS200TREGH1B. Three (3) white jumper ports have been placed on the top edge of the IS200TREGH1B. There are seventeen (17) ports between these ports. The connector on the left has three ports, identified as JH1. The middle connector contains twelve ports identified as J2, and the last connector on the right has two (2) ports identified as J1.

IS200TREGH1B  GE 跳闸紧急终端板 自动化设备
