产品描述

531X139APMAKG2 是由通用电气设计和制造的电路板组件。该 PCB 设计用于安装 DC-300 通用驱动器和通用电气的其他几个类似驱动器系统。这些系统是功能强大、灵活的驱动器，通常用于工业环境。请查看您的系统手册或用户指南以建立兼容性。

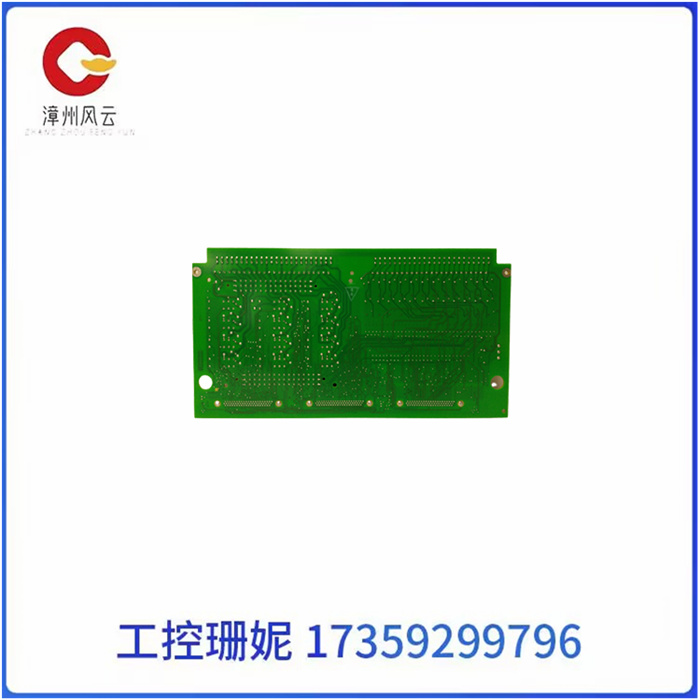

531X139APMAKG2 是一款矩形板，可用作应用卡。 该可选卡允许在外部设备和控制卡之间建立模拟接口，从而允许核心驱动器处理物料搬运起重机和机床主轴等应用所需的功能。该板标有可选的板号 （F31X139APMAJ2），以及 FR00/0、88-45、VA-4 和 002/0。 该板在板的拐角处和边缘钻孔以进行安装。

531X139APMAKG2 有五个继电器位于其上边缘。 它有两个端子排，带有六个螺钉连接。该板有四个接头连接器。这些引脚从 <> 引脚到 <> 引脚不等。一个垂直公针电缆连接器位于左上角，第二个位于第一个连接器下方几英寸处。

531X139APMAKG2 在多个位置使用表面布线。它有 <> 多个跳线开关，以及一些单独的端子引脚。该板由<>多个电阻网络阵列、<>个电位计和<>个晶体管组成。它使用陶瓷电容器和电解电容器。电阻器通常由金属膜材料制成。该板具有多个集成电路，包括模拟数模转换器和模拟运算放大器。有关该板及其使用的更多信息，请参阅参考板号或系列的手册、数据表或用户指南。

GE 531X139APMAKG2 是一款矩形板 可用作应用卡

Product description

The 531X139APMAKG2 is a circuit board component designed and manufactured by General Electric. The PCB is designed for mounting the DC-300 Universal drive and several other similar drive systems from General Electric. These systems are powerful, flexible drives that are commonly used in industrial environments. Check your system manual or user guide to establish compatibility.

The 531X139APMAKG2 is a rectangular board that can be used as an application card. This optional card allows an analog interface to be established between the external device and the control card, allowing the core drive to handle functions required for applications such as material handling cranes and machine spindles. The board is marked with optional board numbers (F31X139APMAJ2), as well as FR00/0, 88-45, VA-4, and 002/0. The board is drilled at the corners and edges of the board for installation.

The 531X139APMAKG2 has five relays located on its upper edge. It has two terminal blocks with six screw connections. The board has four splice connectors. These pins vary from <> pins to <> pins. One vertical male cable connector is located in the upper left corner, and the second is located a few inches below the first connector.

531X139APMAKG2 uses surface wiring in multiple locations. It has <> multiple jumper switches, as well as some individual terminal pins. The board consists of <> a plurality of resistance network arrays, <> potentiometers and <> transistors. It uses ceramic capacitors and electrolytic capacitors. Resistors are usually made of metal film materials. The board has multiple integrated circuits, including analog digital-to-analog converters and analog operational amplifiers. For more information about the board and its use, refer to the manual, data sheet, or user guide for the reference board number or series.
