产品描述

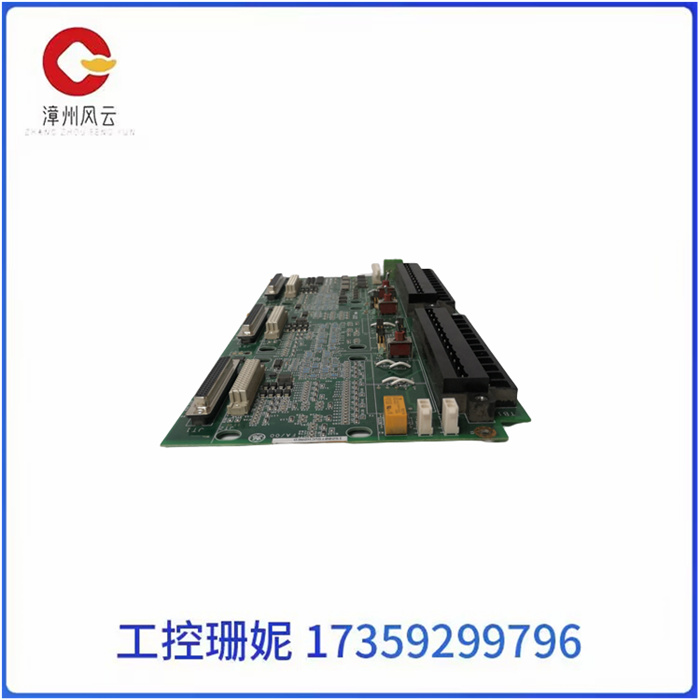

531X207LCSAMG1 板是作为局域网 （LAN） 电流源板开发的。制造商通用电气为531X替换系列驱动板设计了此卡。由于它是驱动柜的标准组件，因此该卡可以安装在GE品牌的驱动器和励磁器的多台机器上。该电流源板在安装时为 LAN 板提供 5 VDC 和 15 VDC 的额定电源。保险丝保护的 115 VAC 输入电源为电路板提供必要的电力。

LAN通信板所需的电源由此卡提供。电路板上的跳线 （J1） 允许用户在提供的两个电源之间进行选择。如果调整这些电平，用户必须相应地调整输出。卡上的电位计允许输出配置。531X207LCSAMG1 还具有受保护的保险丝以及 12 点端子板。端子板中继发送到卡和从卡发送的所有信号。

在进行电路板安装之前，应检查必要的安装参数。满足提供的参数将有助于降低损坏电路板、驱动器或用户的风险。531X207LCSAMG1 板上包含电路，因此仅允许经过培训的用户安装此卡。该系列手册以及设备数据表包含全面的安装和接线指南。整个 531X 系列的技术支持最初由通用电气提供。

GE 531X207LCSAMG1 作为局域网 电流源板开发

Product description

The 531X207LCSAMG1 board was developed as a local area network (LAN) current source board. Manufacturer General Electric designed the card for the 531X replacement series driver board. Since it is a standard component of the drive cabinet, the card can be installed on multiple machines with GE branded drives and exciters. The current source board provides 5 VDC and 15 VDC rated power to the LAN board when installed. A fusion-protected 115 VAC input power supply provides the necessary power to the board.

The power required for the LAN communication board is provided by this card. A jumper (J1) on the board allows the user to choose between the two power supplies provided. If these levels are adjusted, the user must adjust the output accordingly. The potentiometer on the card allows output configuration. The 531X207LCSAMG1 also has a protected fuse and a 12-point terminal board. All signals sent to and from the card are secondary in the terminal board.

Before installing the board, check the necessary installation parameters. Meeting the provided parameters will help reduce the risk of damage to the board, driver or user. The 531X207LCSAMG1 board contains circuitry, so only trained users are allowed to install the card. This series of manuals and equipment data sheets contain comprehensive installation and wiring guidelines. Technical support for the entire 531X series was initially provided by General Electric.
