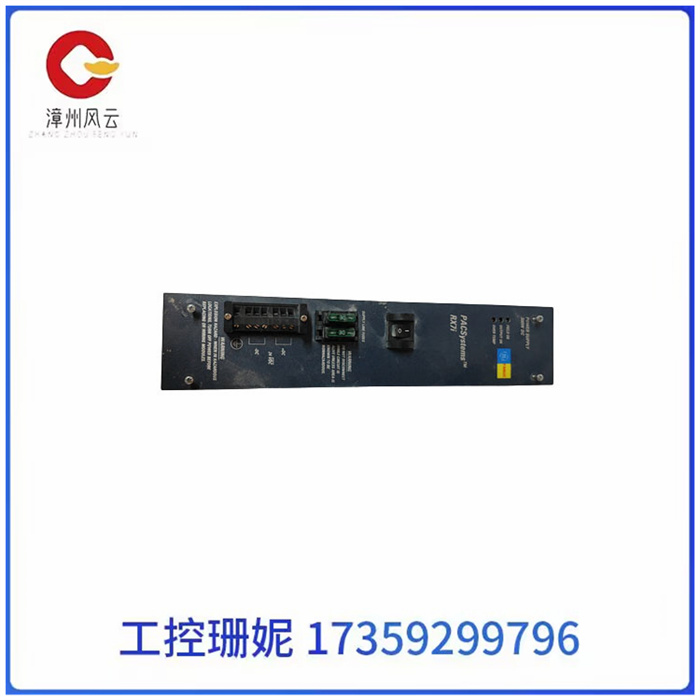

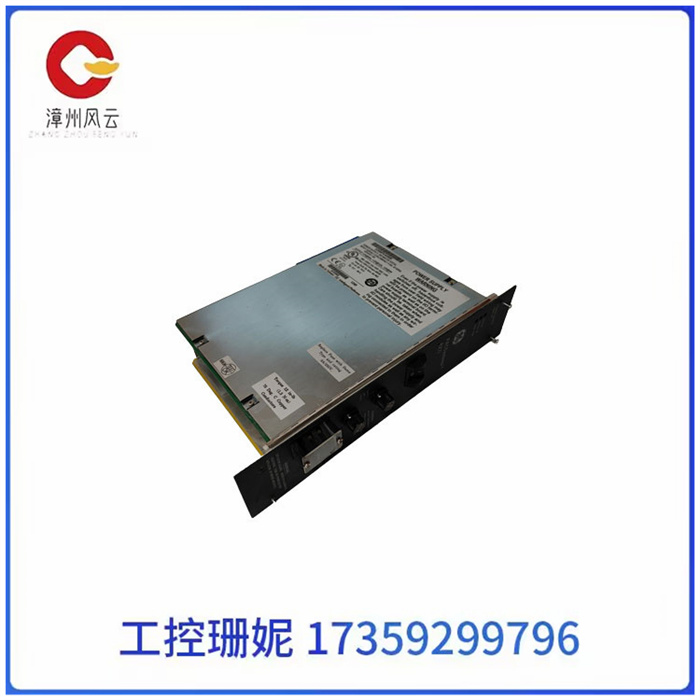

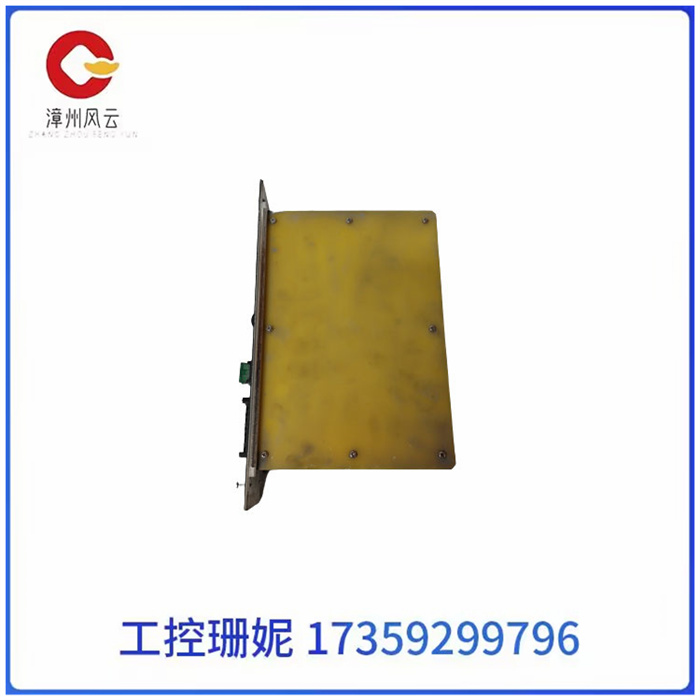

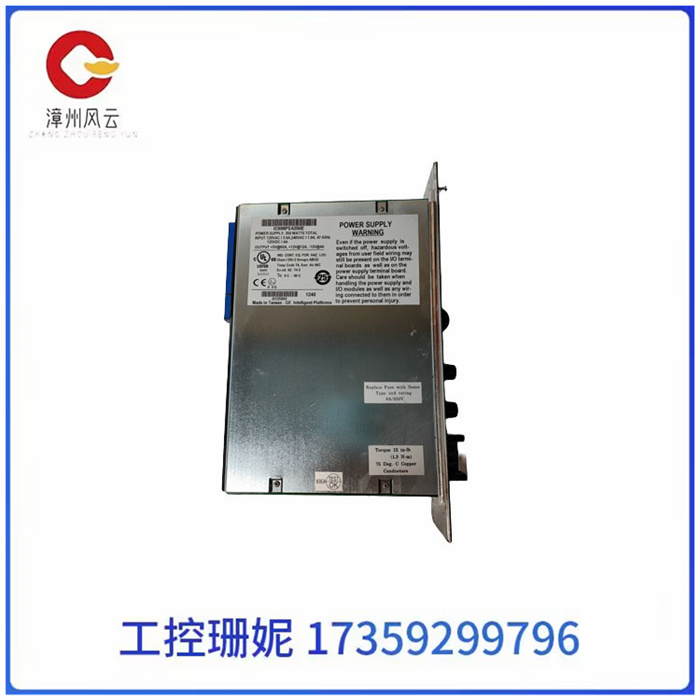

IC698PSA350是一款PAC系统GEFanuc为RX7i系列生产的电源模块。该模块提供+5伏直流电、+12伏直流电和-12伏直流电。此外，它还向背板上的模块发送逻辑电平序列信号。该模块插入主机架的插槽0。

IC698PSA350模块的在保持输出功率的同时，电源输出可能会丢失一个交流输入线路周期。除电子短路保护外，还提供过流和过压故障保护。该模块在0至60°C的环境温度下允许100瓦的总输出功率，无需强制空气冷却。

输出电压如下:+5VDC输出至60安培，+12VDC输出至12安培，以及-12VDC输出至4安培。

IC698PSA350的更多显著特性模块包括85至264伏交流电或100至150伏直流电。该模块配有交流操作功率因数校正和简易滑入式机架安装结构。

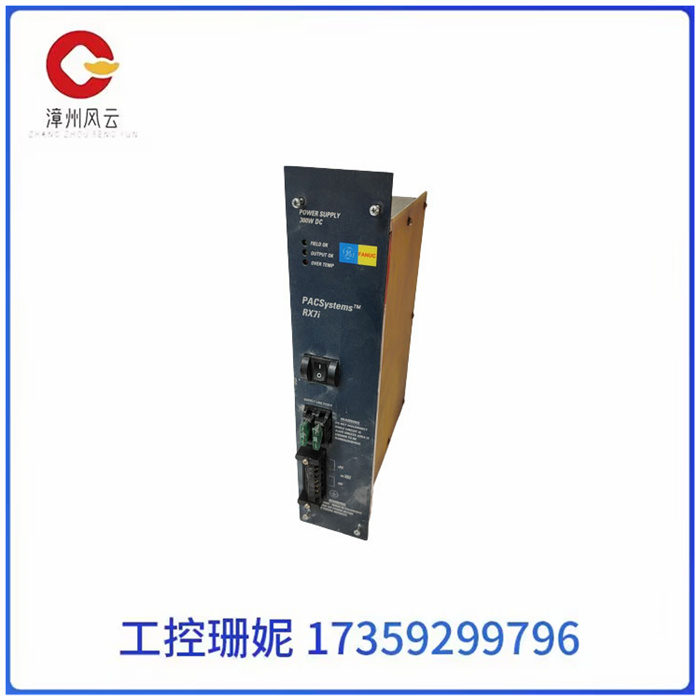

两位开/关逻辑电平开关可在前面板上找到。它能够启用或禁用输出通道，不会干扰交流线路输入。重要警告:当输入电源存在时，模块内存在致命电压。

上的绿色LED指示灯IC698PSA350组件监控现场和输出的状态。当在可接受的范围内施加电源并且DC输出通道正常工作时，这些指示灯将会亮起。如果临界供应温度过高或气流有问题，该模块专用的红色LED将提醒用户。

IC698PSA350E GE 应用于RX7i备板电源模块通讯配置

The IC698PSA350 is a power module produced by PAC System GEFanuc for the RX7i series. The module offers +5 volts DC, +12 volts DC and -12 volts DC. In addition, it sends logic level sequence signals to the modules on the backplane. The module is inserted into slot 0 of the host frame.

The power output of the IC698PSA350 module may lose one AC input line cycle while maintaining the output power. In addition to electronic short-circuit protection, it also provides over-current and over-voltage fault protection. The module allows a total output power of 100 watts at ambient temperatures of 0 to 60°C without forced air cooling.

The output voltage is as follows :+5VDC output to 60 amps, +12VDC output to 12 amps, and -12VDC output to 4 amps.

More notable feature modules for the IC698PSA350 include 85 to 264 volts AC or 100 to 150 volts DC. The module is equipped with AC operation power factor correction and an easy slide-in rack mount structure.

The two-position on/off logic level switch can be found on the front panel. It enables or disables the output channel without interfering with the AC line input. Important warning: There is a fatal voltage in the module when the input power is present.

The green LED indicator on the IC698PSA350 component monitors the status of the field and output. These indicators will light up when power is applied within an acceptable range and the DC output channel is working properly. If the critical supply temperature is too high or there is a problem with airflow, the module's dedicated red LED will alert the user.
