IC698CHS009A GE模块 可编程控制DCS系统通用电气

IC698CHS009A GE模块 可编程控制DCS系统通用电气

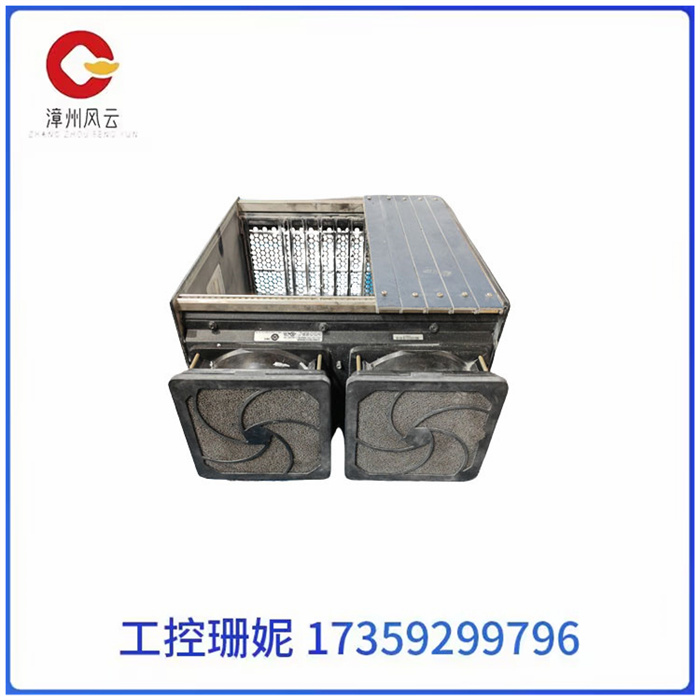

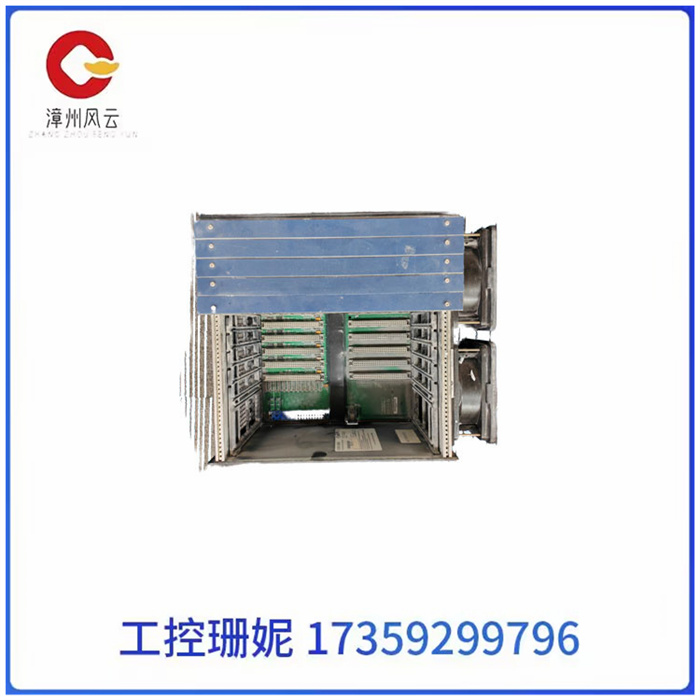

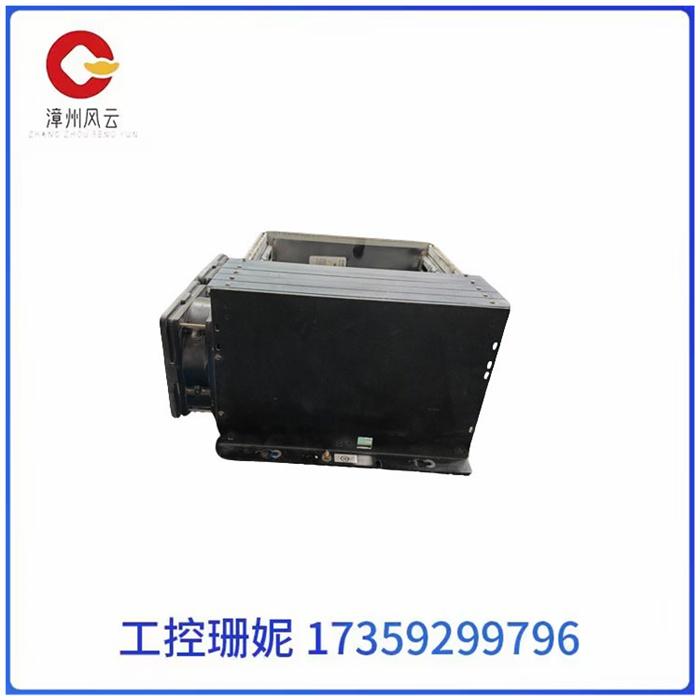

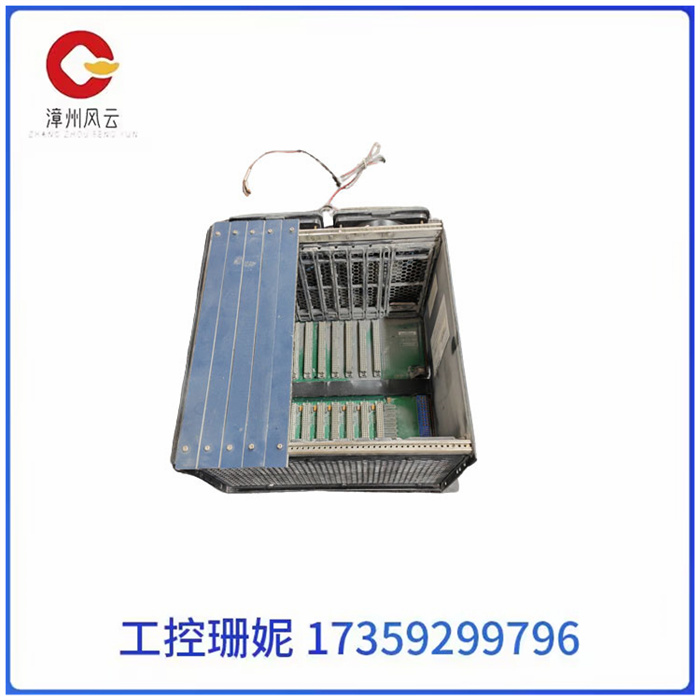

GE Fanuc IC698CHS009 Rx7i I/O Rack是一款用于Rx7i pac系统系列的9槽位I/O Rack。这个后置I/O机架与所有Rx7i cpu和I/O设备、90-70系列I/O和VME模块兼容。IC698CHS009机架具有插槽感应能力，它支持软件配置，无需拨码开关或跳线进行I/O寻址。IC698CHS009机架还提供中断确认和总线授予信号的自动菊花链，消除了对槽跳线的需要，并且它支持Rx7i电源插件。IC698CHS009 Rack提供9个I/O槽位，可安装Rx7i处理器、I/O模块和电源模块。1 ~ 8号槽位宽度为20mm，只支持单槽位模块。9号槽位宽度为40.6毫米，支持双宽模块。槽位1为cpu专用，槽位0为电源模块专用，槽位宽度为61毫米。

IC698CHS009机架支持100瓦和350瓦额定电源。使用100瓦电源时，IC698CHS009 Rack在5伏直流时的最大额定电流为20安培，在-12伏直流时的最大额定电流为1安培，使用350瓦电源时，在5伏直流时的最大额定电流为60安培，在-12伏直流时的最大额定电流为4安培。IC698CHS009机架支持软件配置。使用Machine Edition Logic Developer-PLC软件实现I/O插槽寻址。IC698CHS009机架支持使用可选的风扇组件，如IC698CPE020/CRE020组件，以增强冷却。IC698CHS009机架是一种开放式设计器件，需要标准的IP 54外壳，以便在任何工厂车间进行保护。它的工作温度范围为0到60摄氏度，总尺寸为283 x 320 x 190毫米。

IC698CHS009A GE模块 可编程控制DCS系统通用电气

The GE Fanuc IC698CHS009 Rx7i I/O Rack is a 9-slot I/O Rack for the Rx7i pac system family. This rear I/O rack is compatible with all Rx7i cpus and I/O devices, as well as the 90-70 series I/O and VME modules. The IC698CHS009 rack has slot sensing capability, which supports software configuration and requires no dip switches or jumpers for I/O addressing. The IC698CHS009 rack also provides an automatic daisy-chain of interrupt acknowledgement and bus grant signals, eliminating the need for slot jumppers, and it supports Rx7i power plugins. The IC698CHS009 Rack provides nine I/O slots for installing Rx7i processors, I/O modules, and power modules. The width of slots 1 to 8 is 20mm. Only single-slot modules are supported. Slot 9 is 40.6 mm wide and supports dual-width modules. Slot 1 is dedicated to cpus and slot 0 is dedicated to power modules. The width of the slot is 61 mm.

The IC698CHS009 rack supports 100 watt and 350 Watt power ratings. The IC698CHS009 Rack has a maximum rated current of 20 amps at 5 volts DC when using a 100 watt supply, 1 amp at -12 volts DC, 60 amps at 5 volts DC when using a 350 Watt supply, and 4 amps at -12 volts DC. The IC698CHS009 rack supports software configuration. The I/O slot is addressed using Machine Edition Logic Developer-PLC software. The IC698CHS009 rack supports the use of optional fan components such as the IC698CPE020/CRE020 components for enhanced cooling. The IC698CHS009 rack is an open design device that requires a standard IP 54 housing for protection on any factory floor. It operates in a temperature range of 0 to 60 degrees Celsius and has a total size of 283 x 320 x 190 mm.

IC698CHS009A GE模块 可编程控制DCS系统通用电气
