产品描述

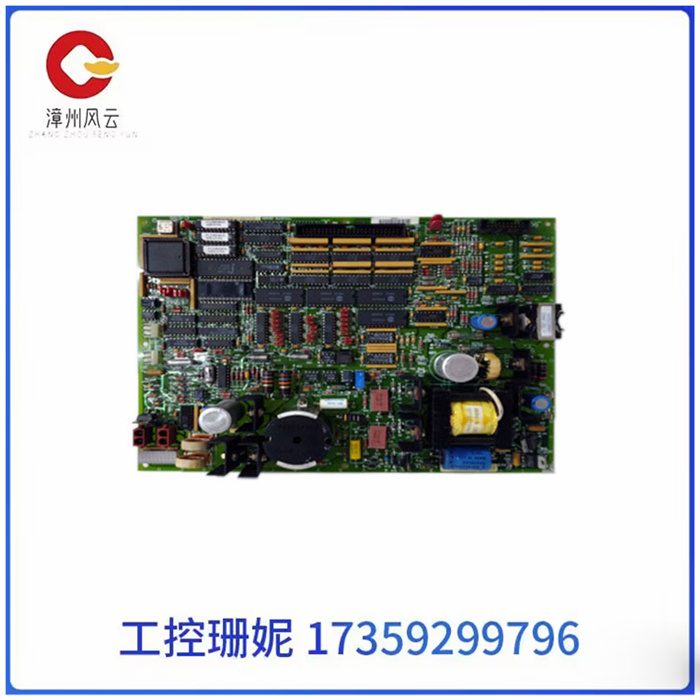

531X300CCHAFM5 是 GE 为 DC-300 驱动器和其他 GE 通用驱动器系统制造的 PCB 组件。 GE通用变频器是功能强大、灵活、易于使用的系统，根据其尺寸，通常适用于轻工业或重工业应用。请查看系统的用户指南或手册，了解与 531x 系列主板的兼容性。

531X300CCHAFM5 用作驱动系统控制卡。 该板的每个角都经过工厂钻孔，以便安装。它还配有多个支架，以便安装可选的辅助板。卡通过这些支架的顶部用螺钉固定在电路板上。从辅助设备到主板的通信是通过位于CCHA板表面的垂直引脚（公）连接器实现的。该板标有代码 F31X300CCHALG2、006/03、002/02 和 CCi-0 9407。

531X300CCHAFM5 配有 <> 个 LED 指示灯。 它们被放置在电路板左上象限的一条线上。该电路板上使用了几个表面布线示例，通常位于电路板底部附近。

531X300CCHAFM5 上的组件包括电位计、电阻网络阵列、稳压器、晶体管和 TP 测试点。该板还具有两个开关组件。电路板表面有 28 个跳线开关，以及 <> 个垂直引脚电缆连接器和 <> 个接头连接器。该板由电阻器、电容器和二极管组成。电路板表面有三十多种不同设计的集成电路。制造商的用户指南和手册将提供更多信息。

GE 531X300CCHAFM5 用作驱动系统控制卡

Product description

The 531X300CCHAFM5 is a PCB component manufactured by GE for DC-300 drives and other GE universal drive systems. GE Universal Drives are powerful, flexible, and easy to use systems that, depending on their size, are typically suitable for light or heavy industrial applications. Check your system's user guide or manual for compatibility with the 531x series motherboard.

The 531X300CCHAFM5 is used as a drive system control card. Each corner of the board is drilled through the factory for installation. It also comes with multiple brackets for mounting optional auxiliary plates. The card is secured to the board with screws through the top of these brackets. Communication from the auxiliary device to the motherboard is achieved through a vertical pin (male) connector located on the surface of the CCHA board. The board is marked with the codes F31X300CCHALG2, 006/03, 002/02 and CCi-0 9407.

The 531X300CCHAFM5 is equipped with <> LED indicator. They are placed on a line in the upper left quadrant of the board. Several examples of surface wiring are used on this board, usually near the bottom of the board.

Components on the 531X300CCHAFM5 include potentiometers, resistance network arrays, regulators, transistors, and TP test points. The board also has two switching assemblies. There are 28 jumper switches on the board surface, as well as <> vertical pin cable connectors and <> splice connectors. The board consists of a resistor, a capacitor and a diode. There are more than thirty different designs of integrated circuits on the board surface. The manufacturer's user guide and manual will provide more information.
