产品描述

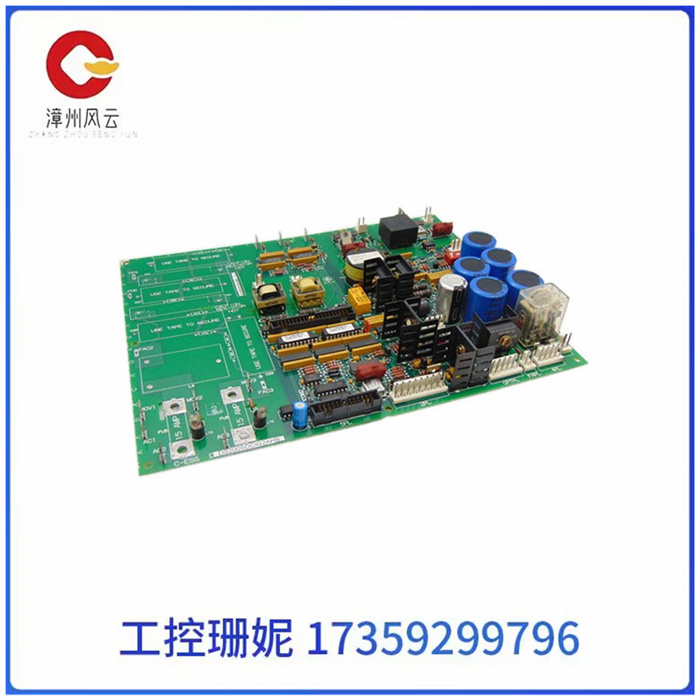

531X300CCHAMM3 是 GE 制造的板组件，是 DC-300 驱动器的一部分。该部件还可用作GE制造和发布的其他几种通用驱动系统的一部分。这些系统通常用于工业应用。您的手册将有助于提供有关您的系统是否与该系列主板兼容的信息。

531X300CCHAMM3 印有 VA-4、CT 88-42 和 FR00/0 等代码。备用电路板编号F31X300CCHAFG1也会显示在电路板表面上。该板用作控制板。

531X300CCHAMM3 有六个 LED 指示灯。这些发光二极管按顺序编号（1/2/4/8/16/32）。 该板具有额外的二极管，以及由金属膜制成的电阻器，以及电解材料、聚酯乙烯基和陶瓷材料的电容器。它有 <> 个电位计，以及 <> 多个电阻网络阵列。

531X300CCHAMM3 板上的其他组件包括 <> 个支架。这些支架以四块为一组放置在主板中，旨在支撑两块可选辅助板，并使用螺钉连接将这些可选板连接到主板。主板还具有一个按钮开关、十多个晶体管、电感器和刺接连接器。该板有 <> 多个跳线开关、几个单针端子引脚、表面布线和 <> 个连接器，其中包括 <> 个接头连接器和 <> 个垂直引脚电缆连接器。如果需要有关安全或处理程序、安装信息或有关电路板操作的一般信息或有关特定电路板组件的信息的更多信息，请参阅参考此电路板编号的手册、数据表或用户指南。

GE 531X300CCHAMM3  该板具有额外的二极管

Product description

The 531X300CCHAMM3 is a board assembly manufactured by GE and is part of the DC-300 driver. The part can also be used as part of several other general-purpose drive systems manufactured and released by GE. These systems are often used in industrial applications. Your manual will help provide information about whether your system is compatible with this series of motherboards.

The 531X300CCHAMM3 is printed with codes VA-4, CT-88-42, and FR00/0. The alternate board number F31X300CCHAFG1 is also displayed on the board surface. The board is used as a control board.

The 531X300CCHAMM3 has six LED indicators. These leds are numbered sequentially (1/2/4/8/16/32). The board has additional diodes, as well as resistors made of metal films, and capacitors made of electrolytic materials, polyester vinyl, and ceramic materials. It has <> potentiometers, and <> multiple resistance network arrays.

Other components on the 531X300CCHAMM3 board include <> brackets. These brackets are placed in groups of four in the motherboard and are designed to support two optional auxiliary boards and connect these optional boards to the motherboard using screw connections. The motherboard also has a push-button switch, more than a dozen transistors, inductors, and splice connectors. The board has <> multiple jumper switches, several single pin terminal pins, surface wiring, and <> connectors, including <> a splice connector and <> a vertical pin cable connector. If you need more information about safety or handling procedures, installation information, or general information about board operation, or information about specific board components, please refer to the manual, data sheet, or user guide that refers to this board number.
