产品描述

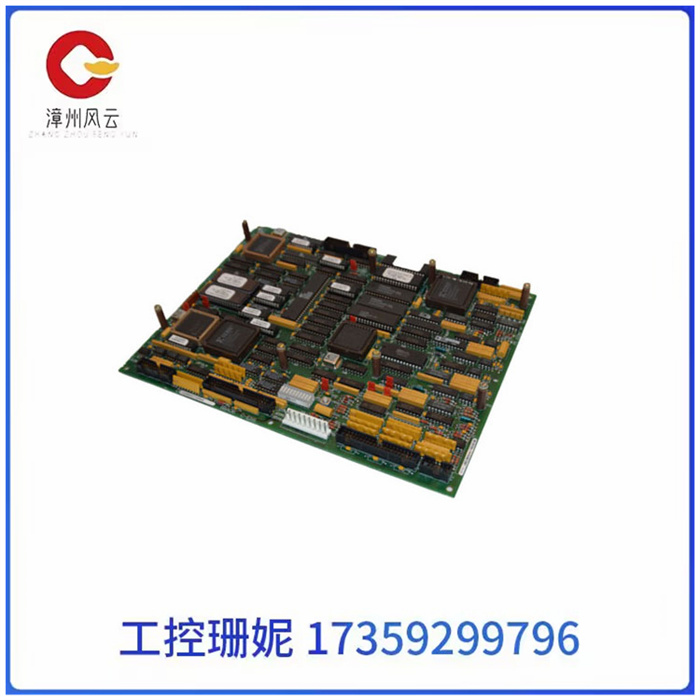

531X300CCHAXM3 是 GE 制造的 PCB 组件，用于设计用于通用的几种旧驱动系统。 其中包括 DC-300 驱动器和类似的驱动器。这些较旧的驱动器现在有时已经过时，但最初被设计为复杂、灵活的系统，用于各种工业应用。

531X300CCHAXM3 是作为 531X 系列板的一部分发布的几款控制卡之一。 该 PCB 标有 003/0、004/0、ctb 89-29、005/0、VA-4 和 FR00/0 等代码。它还带有主板的备用主板编号、F31X300CCHAXM3和制造商徽标。

531X300CCHAXM3 在电路板表面内置了 531 个支座。这些支座接受螺钉连接，并允许两个辅助板连接到板表面。六个公头垂直插针电缆连接器散布在电路板表面;其中一些将用于允许辅助板和主板之间的通信。300X3CCHAXM<> 还具有两个刺接式连接器和多个单端子引脚连接器。

放置在 531X300CCHAXM3 表面上的其他组件包括 <> 个电位计、一个按钮开关、跳线开关和电阻网络阵列。 该板有六个红色 LED 指示灯。它有<>个晶体管和数十个集成电路，包括振荡芯片和运算放大器。电路板的大部分表面被陶瓷或聚酯乙烯基电容器、二极管和金属膜电阻器覆盖。该板还具有电感器，并在多个位置使用表面布线。有关该板的更多信息，请访问GE出版物，如系列用户指南和数据表。请遵循所有安全和处理建议。

GE 531X300CCHAXM3 用于设计用于通用的几种旧驱动系统

Product description

The 531X300CCHAXM3 is a PCB component manufactured by GE for several older drive systems designed for general use. These include DC-300 drives and similar drives. These older drives are now sometimes obsolete, but were originally designed as complex, flexible systems for a variety of industrial applications.

The 531X300CCHAXM3 is one of several control cards released as part of the 531X series board. The PCB is labeled with codes such as 003/0, 004/0, ctb 89-29, 005/0, VA-4, and FR00/0. It also carries the board's spare board number, F31X300CCHAXM3, and the manufacturer's logo.

The 531X300CCHAXM3 has 531 supports built into the board surface. These supports accept screw connections and allow two auxiliary plates to be connected to the plate surface. Six male vertical pin cable connectors are scattered on the board surface; Some of these will be used to allow communication between the auxiliary board and the motherboard. The 300X3CCHAXM<> also has two spline connectors and multiple single-terminal pin connectors.

Other components placed on the 531X300CCHAXM3 surface include <> potentiometers, a pushbutton switch, a jumper switch, and a resistance network array. The board has six red LED indicators. It has <> transistors and dozens of integrated circuits, including oscillating chips and operational amplifiers. Most of the surface of the circuit board is covered by ceramic or polyester vinyl capacitors, diodes, and metal film resistors. The board also has inductors and uses surface wiring in multiple locations. For more information about the board, visit GE publications such as series user guides and data sheets. Please follow all safety and handling recommendations.
