产品描述

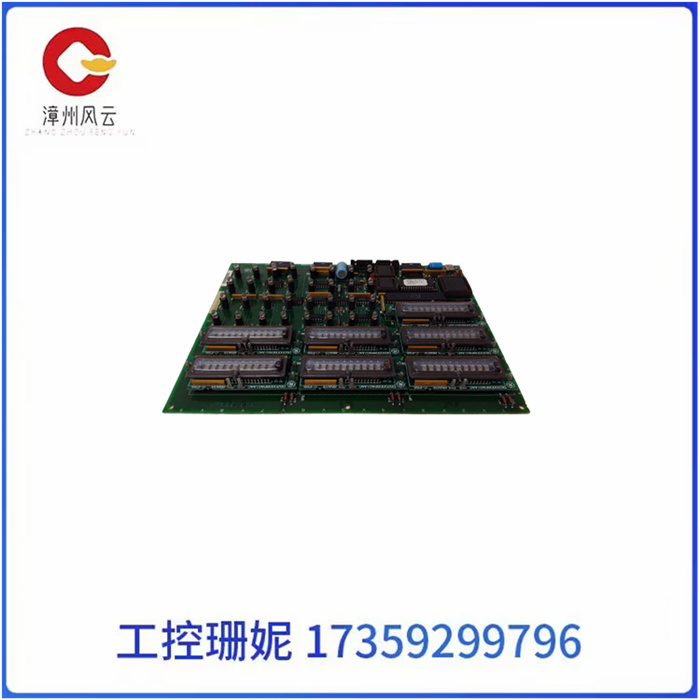

531X305NTBAMG1是通用电机和工业系统的替代部件。它通常用于GE驱动器或GE励磁机柜内。该板用作接口板，包括多个用于输入和输出的端子排。

531X305NTBAMG1 旨在为连接的控制设备提供多个外部信号电平输入和输出。这包括稳压和非稳压功率输出，以及用于驱动数字编码器的噪声滤波。它还具有一个差分 A 四 B 编码器接口（光隔离），可以连接到驱动器。这可以通过位于电路板表面的跳线开关配置为+5V或+/-15V编码器。

531X305NTBAMG1 还具有通过电路板表面的四个电位计进行低电平模拟 I/O 缩放。还有数字控制输入。它们使用跳线将未连接的输入偏置到 +/-24 VDC，具体取决于使用的是正逻辑还是负逻辑。最后，该板包括 RS-232C 和 RS-422 接口以及多个继电器输出。它还在电路板表面设有测试点，用于测试关键信号路径。除上述跳线和电位计外，其他可配置硬件仅限于 DIP 开关。有关其设置的信息可以在 GEI-10020B 中找到。

GE 531X305NTBAMG1  通用电机和工业系统的替代部件

Product description

The 531X305NTBAMG1 is an alternative component for general purpose motors and industrial systems. It is usually used in GE drives or GE exciter cabinets. The board serves as an interface board and includes a plurality of terminal blocks for input and output.

The 531X305NTBAMG1 is designed to provide multiple external signal level inputs and outputs to the connected control device. This includes both regulated and unregulated power outputs, as well as noise filtering for driving digital encoders. It also has A differential A quad-b encoder interface (optical isolation) that can be connected to the driver. This can be configured as a +5V or +/-15V encoder via a jumper switch located on the board surface.

The 531X305NTBAMG1 also features low-level analog I/O scaling via four potentiometers on the board surface. There are also digital control inputs. They use jumpers to bias unconnected inputs to +/-24 VDC, depending on whether positive or negative logic is used. Finally, the board includes RS-232C and RS-422 interfaces and multiple relay outputs. It also has test points on the board surface for testing critical signal paths. Other than the jumpers and potentiometers mentioned above, other configurable hardware is limited to DIP switches. Information about its Settings can be found in GEI-10020B.
