产品描述

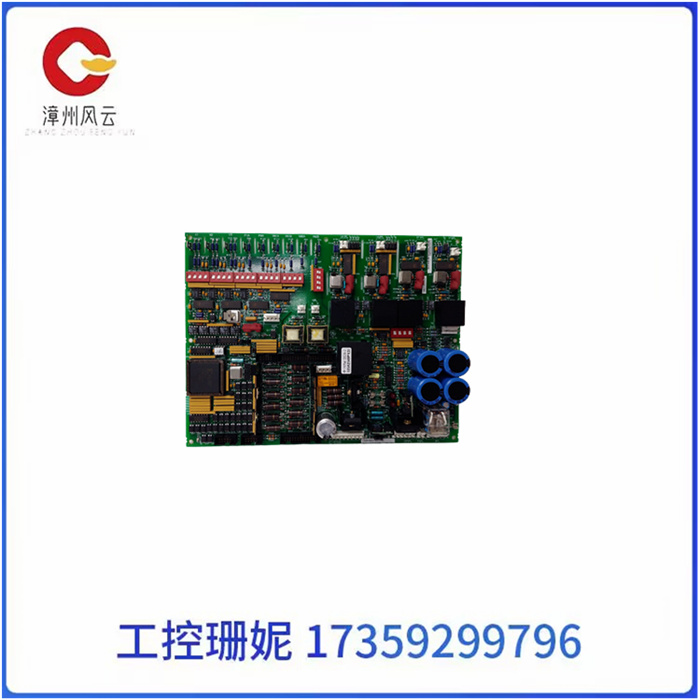

通用电气 531X309SPCAFG1 板是信号处理器卡。作为 531X 系列的一员，该处理器卡可以安装在许多 GE 品牌驱动器或激励器的机柜中。该板通过处理发送到 LAN 控制板以及发送到驱动器控制板的 I/O 来运行。

该信号处理器板内置了许多功能。该板提供卡与编码器或转速计之间的接口功能。这些通信可以向驱动器的控制板提供速度反馈。该卡将三个电流参考信号和一个电压电平信号转换为电压参考信号。然后，531X309SPCAFG1 将这些信号中继到控制板。RS-422 串行信号由该卡处理，并发送到驱动器的板载电机控制处理器。许多开关、跳线和电位器允许用户改变信号滤波、增益和硬件配置。

应满足主板制造商提供的任何安装参数。 遵循这些提供的准则将防止对主板和驱动器造成任何意外损坏。只有经过培训的合格人员才能安装驱动板，才能操作 531X309SPCAFG1。该信号处理器卡的接线说明可在该板的数据表和手册中找到。

GE 531X309SPCAFG1 通用继电器模块 CPU模块

Product description

The GE 531X309SPCAFG1 board is a signal processor card. As a member of the 531X series, the processor card can be installed in the cabinet of many GE branded drives or exciters. The board operates by handling I/O sent to the LAN board as well as to the drive board.

Many functions are built into the signal processor board. The board provides the interface function between the card and the encoder or tachometer. These communications can provide speed feedback to the driver's control board. The card converts three current reference signals and a voltage level signal into a voltage reference signal. The 531X309SPCAFG1 then relays these signals to the control board. The RS-422 serial signal is processed by the card and sent to the driver's on-board motor control processor. Many switches, jumpers, and potentiometers allow users to vary signal filtering, gain, and hardware configuration.

Any installation parameters provided by the motherboard manufacturer should be met. Following these provided guidelines will prevent any accidental damage to the motherboard and drive. Only trained and qualified personnel can install the driver board and operate the 531X309SPCAFG1. Wiring instructions for the signal processor card can be found in the board's data sheet and manual.
