GE IS2020RKPSG2A VME电源模块 一个独立的模块

GE IS2020RKPSG2A VME电源模块 一个独立的模块

产品描述

IS2020RKPSG2A是一个VME电源模块，是Mark VI系统的一部分。VME 机架电源的缩写是 RKPS。有关此电源的信息可在 GE Industrial Systems 手册 GEH-6421E 中找到。

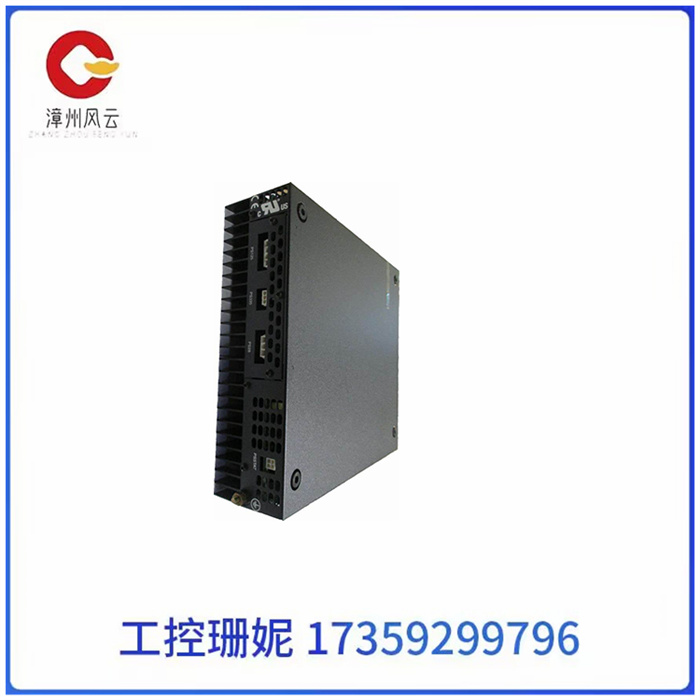

该IS2020RKPSG2A设计为独立模块。它有一个前面板，包括三个 LED（黄色、红色、绿色）和一个开关组件。面板上标有“电源”，并且还有一个位置可以记录修订号、GE 目录号和序列号，以便于参考。模块的侧面设计有许多金属鳍片。模块的这一侧用作大型散热器组件。模块的顶部边缘有两个连接器（PSA 和 PSB），底部有四个附加连接器（PS125 或 PS24、PS335、PS28 和 PSSTAT）。

需要注意的是，VME机架电源有七个主要变化。IS2020RKPSG2A的输入电压为125VDC，输出额定值为400 W。 输出（如上所述）包括28路+28V输出、335路+<>V远程输出、<>路PS<>输出和<>路状态ID输出。

GE IS2020RKPSG2A VME电源模块 一个独立的模块

Product description

The IS2020RKPSG2A is a VME power module that is part of the Mark VI system. VME stands for RKPS. Information about this power supply can be found in the GE Industrial Systems manual GEH-6421E.

The IS2020RKPSG2A is designed as a standalone module. It has a front panel that includes three leds (yellow, red, green) and a switch assembly. The panel is labeled "Power Supply," and there is also a place to record the revision number, GE catalog number, and serial number for easy reference. The side of the module is designed with a number of metal fins. This side of the module is used as a large radiator assembly. The top edge of the module has two connectors (PSA and PSB) and the bottom has four additional connectors (PS125 or PS24, PS335, PS28 and PSSTAT).

It is important to note that there are seven major changes to the VME rack power supply. The IS2020RKPSG2A has an input voltage of 125VDC and an output rating of 400 W. The outputs (as described above) include 28 +28V outputs, 335 +<>V remote outputs, <> PS<> outputs, and <> path status ID outputs.
