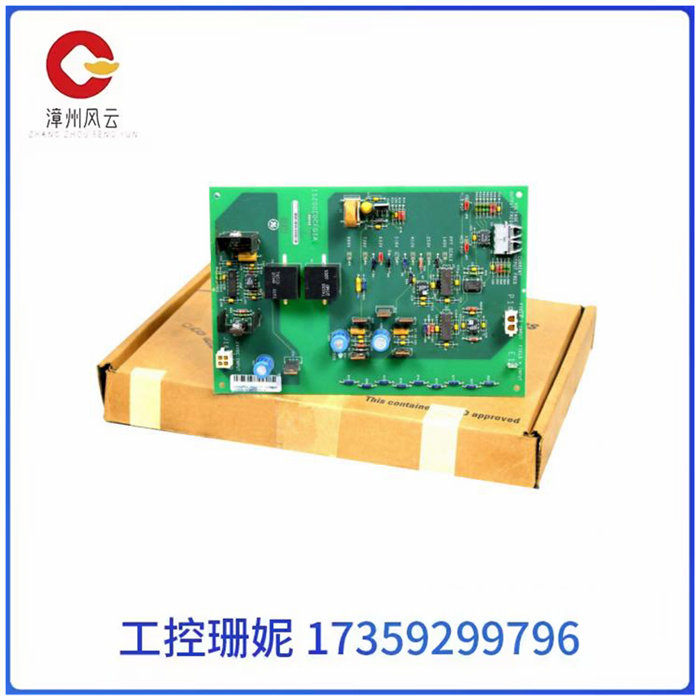

IS210BAPAH1A 汽轮机控制卡 结构简单

IS210BAPAH1A 汽轮机控制卡 结构简单

S210BAPAH1A具有模拟处理器模块的功能。它是Mark VI或Mark VIe系统的一个组件。这两个系统都来自通用电气，设计用于管理蒸汽或燃气轮机。Mark VI采用中央控制设计，系统的核心是带有13或21插槽VME卡架的中央控制模块。

该平台可用于功率岛的集成和电厂控制的平衡。相反，Mark VIe是一个分布式控制系统，其控制处理通过节点分布在整个系统中。然后，这些节点被保持在中央调度器的控制之下。

IS210BAPAH1A与SAMB端子板一起构成了一个声学监测输入包。该软件包支持6/7/9号机架燃气轮机的动态特性。IS210BAPAH1A内置在一个狭窄的黑色外壳中，顶部和底部都有开口，以允许空气流动。后表面包括顶部和底部法兰，其表面上切割有安装孔。

IS210BAPAH1A 汽轮机控制卡 结构简单

The S210BAPAH1A has the function of emulating the processor module. It is a component of the Mark VI or Mark VIe system. Both systems come from General Electric and are designed to manage steam or gas turbines. The Mark VI has a central control design, and the core of the system is a central control module with a 13 - or 21-slot VME tray.

The platform can be used for power island integration and power plant control balance. In contrast, Mark VIe is a distributed control system whose control processing is distributed through nodes throughout the system. These nodes are then kept under the control of a central scheduler.

The IS210BAPAH1A, together with the SAMB terminal board, forms an acoustic monitoring input package. The package supports the dynamic characteristics of the 6/7/9 rack gas turbine. The IS210BAPAH1A is built into a narrow black housing with openings at the top and bottom to allow air flow. The rear surface includes a top and bottom flange on which mounting holes are cut.

IS210BAPAH1A 汽轮机控制卡 结构简单
