Product description

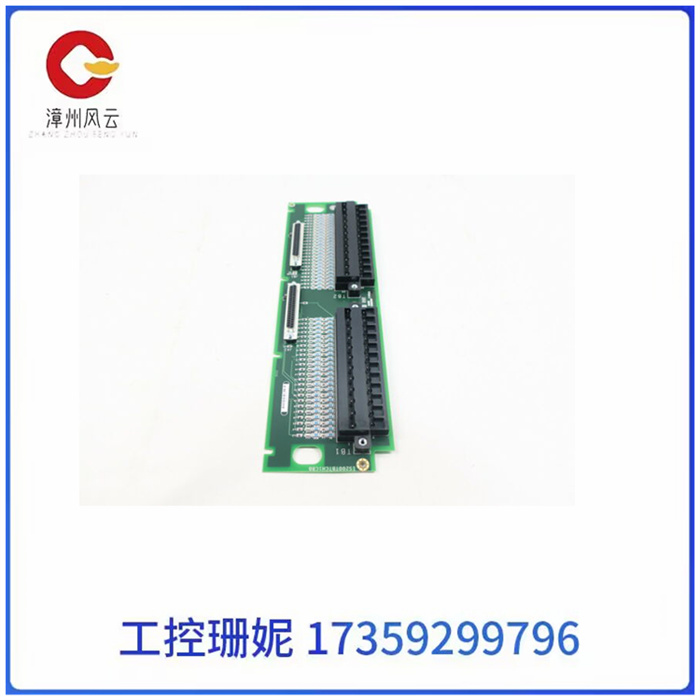

The Thermocouple Input (TBTC) terminal board IS200TBTCH1C is part of the Mark VIe series produced by General Electric. The board will accept T, S, K, J, and E main 2-inch thermocouple inputs. If the board is used with a PTCCH200 board in a simplex system, the board can accept three additional thermocouple inputs labeled R, B, and N. There are two TBTC models, the model is IS1TBTCH<>C meaning it has two DC type connectors and is only used for simplex applications. The board will use two PTCC packages, thus allowing <> input.

When connecting the IS200TBTCH1C board as part of the Mark VIe series, the I/O packages used will be corrected directly into the TBTC Type J connector, and the cables required will also depend on the level of redundancy required for the board. A feature of the board is that the thermocouple input on the board can be ungrounded or grounded. The input is up to <> feet from the turbine control panel. The connected I/O processor on this device performs analog-digital linearization and conversion of the individual thermocouple inputs.

The thermocouple input of the IS200TBTCH1C board can support a wide input range from negative <> volts to a positive input range of up to <> volts. The plate has a cold end and its operating range is negative <> degrees to <> degrees Fahrenheit. Cold end or CJ signals can be monitored by entering the signal space.
