产品描述

该IS200JPDMG1A是通用电气制造的PCB组件，用于Mark VI系统。 Mark VI 是 Speedtronic 燃气轮机和蒸汽轮机管理系列的一部分，该系列已经使用了几十年。MKVI 是该系列中最先进的产品之一，包括以太网通信、控制模块中的三重冗余控制配置以及围绕在 Windows 平台上运行的 PC 构建的 HMI 操作员界面等功能。

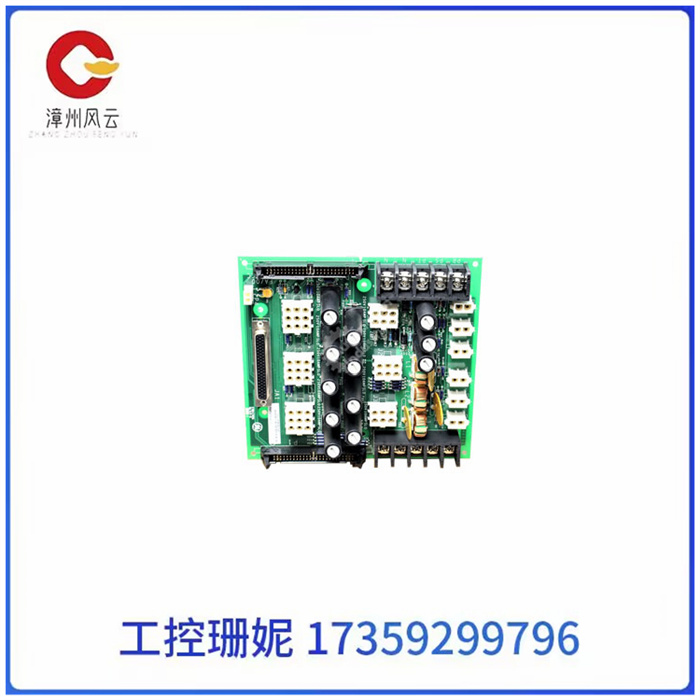

IS200JPDMG1A是配电板。该板内置两个 50 引脚连接器 （P1/P2）。它有十二个保险丝，分为三条线。该板有一个 DC62 母连接器 （JA1），用于连接到 PPDA I/O 包。

该板有两个接线端子，分别放置在 PCB 的相对两侧。这些接线端子提供对三条电源总线的访问。位于接线端子上的每个螺钉的最大输入为 35 安培。IS200JPDMG1A共有 9 个插头，包括 2 个 6 位插头、<> 个 <> 位插头和 <> 个 <> 位插头。该板还包括四个压敏电阻、三个电感线圈、晶体管、电阻器和电容器。

IS200JPDMG1A GE 该板内置两个 50 引脚连接器

Product description

The IS200JPDMG1A is a PCB component manufactured by General Electric for use in Mark VI systems. The Mark VI is part of the Speedtronic gas turbine and steam turbine management series, which has been in use for decades. The MKVI is one of the most advanced products in the family and includes features such as Ethernet communication, triple redundant control configurations in the control module, and an HMI operator interface built around PCS running on the Windows platform.

The IS200JPDMG1A is a power distribution board. Two 50-pin connectors (P1/P2) are built into the board. It has twelve fuses, divided into three lines. The board has a DC62 female connector (JA1) for connecting to PPDA I/O packages.

The board has two terminals, which are placed on opposite sides of the PCB. These terminals provide access to three power buses. The maximum input for each screw located on the terminal is 35 amps. The IS200JPDMG1A has a total of 9 plugs, including 2 6-bit plugs, <> <> bit plugs and <> <> bit plugs. The board also includes four varistors, three inductors, transistors, resistors, and capacitors.
