产品描述

IS200JPDLG1A是为Mark VI系统创建的GE组件。Mark VI 是 GE 作为 Speedtronic 系列的一部分发布的最后一批燃气轮机和蒸汽轮机管理系统之一。这一系列涡轮机管理系统已经由通用电气研究、开发并成功发布了三十年。Mark VI包括这些早期系统的一些最佳部分（例如，三重冗余控制），并在发布时具有技术进步，例如以太网通信功能和用作HMI（操作员界面）的Windows平台PC。

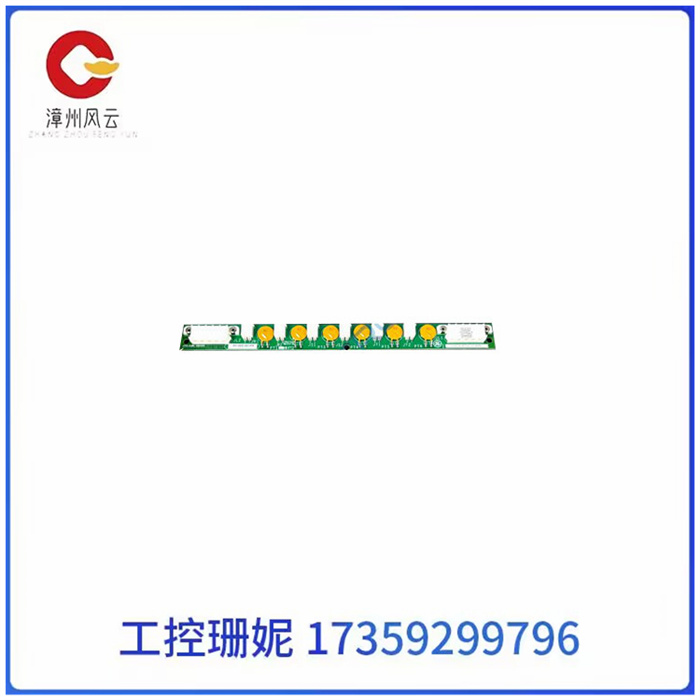

IS200JPDLG1A是配电板。JPDL板由于其尺寸，有时被称为“Skinny”板。IS200JPDLG1A在控制电源（通常是 JPDS 或 JPDP 板）和多个 I/O 包之间提供直流电源分配。IS200JPDLG1A板可以菊花链连接在一起。该板用于通过为 TMR 系统提供隔离配电电路来提供有组织的控制电源分离。

该IS200JPDLG1A板上安装了六个压敏电阻，与六个 I/O 连接器交替使用。这些连接器是 Mate-n-Lock 连接器，标记为 JR1/JR2、JS1/JS2 和 JT1/JT2。在电路板的两端，有两个较大的 5 针 Mate-N-Lock 连接器。JL1 连接器是输入，JL2 是输出。输入功率通常为 28 VDC。

IS200JPDLG1A GE 机架接口模块 数据采集

Product description

The IS200JPDLG1A is a GE component created for the Mark VI system. The Mark VI is one of the last gas turbine and steam turbine management systems released by GE as part of the Speedtronic family. This series of turbine management systems has been researched, developed and successfully released by GE for three decades. The Mark VI includes some of the best parts of these early systems (e.g., triple redundancy control) and was released with technological advancements such as Ethernet communication capabilities and a Windows platform PC used as an HMI (operator interface).

The IS200JPDLG1A is a switchboard. JPDL boards are sometimes referred to as "Skinny" boards because of their size. The IS200JPDLG1A provides DC power distribution between the control power supply (usually a JPDS or JPDP board) and multiple I/O packages. The IS200JPDLG1A boards can be Daisy chained together. The board is used to provide organized control power separation by providing isolated distribution circuits for the TMR system.

The IS200JPDLG1A board is equipped with six varistors, which are interchangeable with six I/O connectors. These connectors are Mate-n-Lock connectors, labeled JR1/JR2, JS1/JS2, and JT1/JT2. At both ends of the board, there are two larger 5-pin Mate-N-Lock connectors. The JL1 connector is the input and JL2 is the output. The input power is usually 28 VDC.
