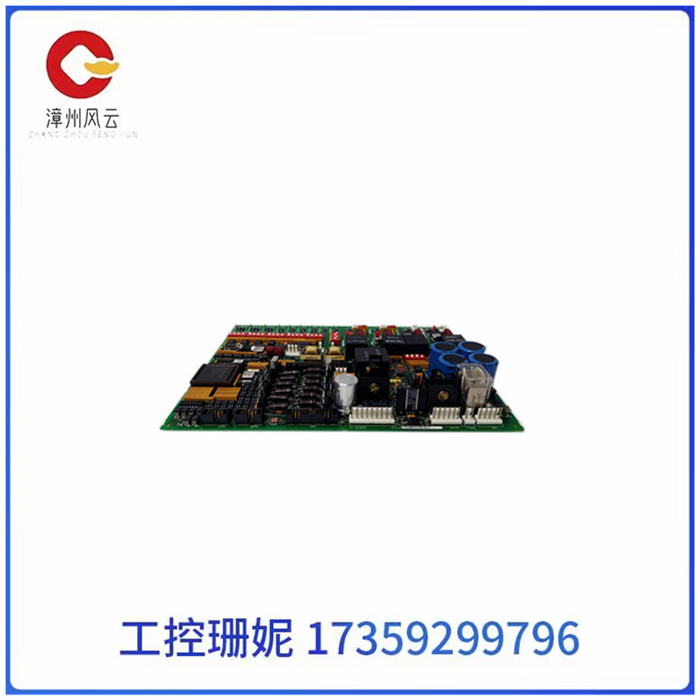

GE DS200PTCTG2BAA  信号调理器板

GE DS200PTCTG2BAA  信号调理器板

产品描述

GE信号调理器板DS200PTCTG2BAA具有1个接线端子，带有用于72根信号线的端子。它还包含 1 个 50 针连接器。接线端子上的端子 ID 包括 OUT2、OUT1、COM1、COM2、P15、SO21 和 L23。当原厂板在出厂时安装时，安装指南会描述每个端子，并提供有关连接到它们的信号线的信息。电路板接收一些信号进行处理。其他信号被传输到其他板。确保从信号线上去除大约半英寸的绝缘层以与端子接触。

该板还包含用于 6 根信号线的端子。端子用电路板表面的螺钉固定到位。使用一字螺丝刀打开端子。但是，必须注意不要用螺丝刀的刀片划伤电路板的表面。用一只手将螺丝刀的刀片引导到螺丝上，用另一只手转动螺丝刀。将信号线缠绕在端子上并拧紧螺丝。防止螺丝刀划伤电路板表面。终端与一个 3 个字符的 ID 相关联。第一个字符是一个数字。第二个和第三个字符是 TB。例如，某些终端 ID 为 1TB、2TB 和 3TB。

GE信号调理器板DS200PTCTG2BAA装有2个隔离放大器和多个扁平线电感器。这些组件直接嵌入在电路板上。

GE DS200PTCTG2BAA  信号调理器板

Product description

The GE signal conditioner board DS200PTCTG2BAA has one terminal with terminals for 72 signal wires. It also includes a 50-pin connector. The terminal ID on the wiring terminal can be OUT2, OUT1, COM1, COM2, P15, SO21, and L23. When the original board is installed at the factory, the installation guide describes each terminal and provides information about the signal wires connected to them. The board receives some signals for processing. Other signals are transmitted to other boards. Make sure to remove about half an inch of insulation from the signal line to make contact with the terminal.

The board also contains terminals for six signal wires. The terminals are secured in place with screws on the circuit board surface. Use a flat-head screwdriver to open the terminal. However, care must be taken not to scratch the surface of the circuit board with the blade of the screwdriver. Guide the blade of the screwdriver to the screw with one hand and turn the screwdriver with the other hand. Wrap the signal cable around the terminal and tighten the screws. Prevent the screwdriver from scratching the circuit board surface. The terminal is associated with a 3-character ID. The first character is a number. The second and third characters are TB. For example, some terminal ids are 1TB, 2TB, and 3TB.

The GE signal conditioning board DS200PTCTG2BAA is equipped with 2 isolation amplifiers and multiple flat line inductors. These components are embedded directly on the circuit board.

GE DS200PTCTG2BAA  信号调理器板
