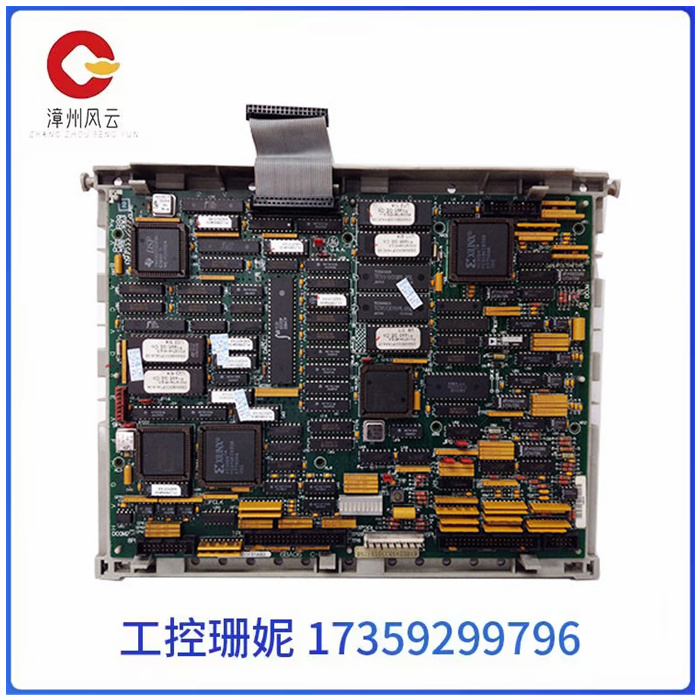

GE DS200SDCCF0AAA  涡轮机控制单元

GE DS200SDCCF0AAA  涡轮机控制单元

产品描述

该模块是涡轮机控制单元的 Speedtronic Mark V 设备的一部分。它被设计为一个组件，旨在内部安装并安装到驱动器中。该装置是 DS200 印刷电路板之一，可用于为通用电气系列提供多种必要的功能和能力。

DS200SDCCF0AAAPCB 设计用作电源连接板。它为 Speedtronic Mark V 提供了控制电路和涡轮机 SCR 功率桥之间的稳定接口。

DS200SDCCF0AAA 电源连接电路板配备利用脉冲变压器节点，允许栅极驱动到达 SCR 桥。它还集成了一组缓冲电路，以控制交流线路尖峰以及直流总线和栅极驱动器上的尖峰。

GE DS200SDCCF0AAA  涡轮机控制单元

Product description

The module is part of the Speedtronic Mark V device for the turbine control unit. It is designed as a component that is intended to be installed internally and installed into the drive. The device is one of the DS200 printed circuit boards that can be used to provide a variety of essential functions and capabilities for the GE family.

The DS200SDCCF0AAAPCB is designed to be used as a power connector. It provides the Speedtronic Mark V with a stable interface between the control circuit and the turbine SCR power bridge.

The DS200SDCCF0AAA power connection board is equipped with a pulse transformer node that allows the gate drive to reach the SCR bridge. It also integrates a set of buffer circuits to control AC line spikes as well as spikes on the DC bus and gate drivers.
