GE DS200STCAG1ABA 印刷电路板用作涡轮机通信卡

GE DS200STCAG1ABA 印刷电路板用作涡轮机通信卡

产品描述

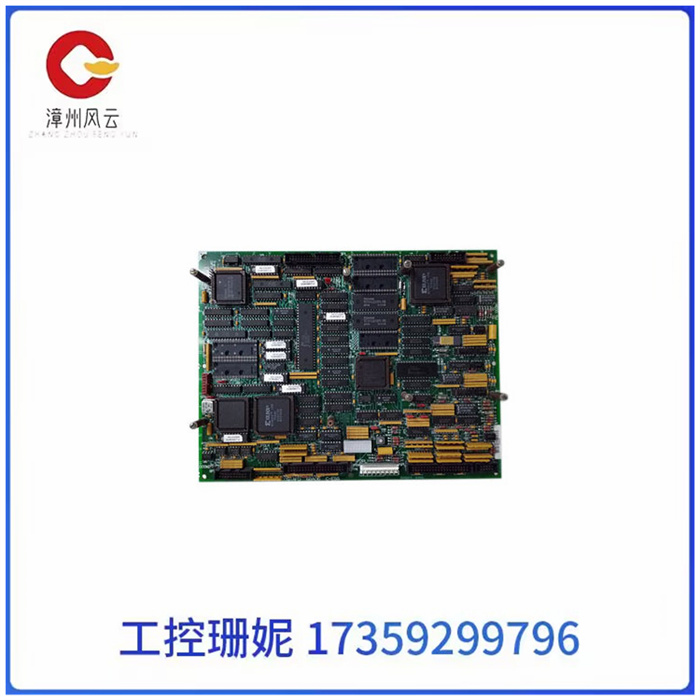

DS200STCAG1ABA印刷电路板用作涡轮机通信卡。 该PCB由通用电气创建和销售，作为其Mark V LM系列的替换部件。但是，由于主板在 OEM 中处于遗留状态，因此更换产品可能更难获得。AX Control 努力维护此零件和其他 Speedtronic 更换零件 （MK1-MK6） 的现有库存，以便我们能够更好地满足全球客户的需求。

该DS200STCAG1ABA可用作 Mark V 系统<R>内核中 I/O 的 IONET 特定主站。每个 I/O 内核必须配备 STCA 板。发送到电路板的信号通过许多不同的连接器进入，在那里它们被调理，然后写入UCPB子板上的I/O引擎。

该板采用可配置硬件设计，包括 JP2 跳线，允许对板进行工厂测试。此外，JP4 跳线为用户提供电压选择，以满足闪存 EPROM 器件的需求。可能还需要软件配置。这包括脉搏速率常数、同步设置和压缩机失速。请务必参考要更换的主板上的设置;最好配置替换板以模拟这些设置。

DS200STCAG1ABA通常安装在其他 I/O 控制板的顶部，与 TCCA、TCQC、TCQE、TCQA 和 TCCB 等板一起安装在顶部插槽中。机柜内可以有四个 I/O 控制选择。

GE DS200STCAG1ABA 印刷电路板用作涡轮机通信卡

Product description

The DS200STCAG1ABA printed circuit board is used as a turbine communication card. The PCB was created and sold by General Electric as a replacement part for its Mark VLM series. However, because motherboards are in a legacy state in Oems, replacements can be harder to come by. AX Control strives to maintain existing inventory of this part and other Speedtronic replacement parts (MK1-MK6) so that we can better meet the needs of our customers around the world.

The DS200STCAG1ABA can be used as an IONET-specific master for I/O in the kernel of the Mark V system <R>. Each I/O kernel must be equipped with an STCA board. The signals sent to the board enter through a number of different connectors, where they are conditioned and then written to the I/O engine on the UCPB subboard.

The board features a configurable hardware design, including JP2 jumpers, allowing factory testing of the board. In addition, JP4 jumpers provide the user with a voltage choice to meet the needs of flash EPROM devices. Software configuration may also be required. This includes pulse rate constants, synchronization Settings, and compressor stall. Be sure to refer to the Settings on the motherboard you want to replace; It is best to configure the replacement board to simulate these Settings.

The DS200STCAG1ABA is typically mounted on top of other I/O boards, in the top slot along with boards such as TCCA, TCQC, TCQE, TCQA, and TCCB. There are four I/O control options in the cabinet.
