GE DS200TCDAG1AD 数字I/O板 一个微处理器

GE DS200TCDAG1AD 数字I/O板 一个微处理器

产品描述

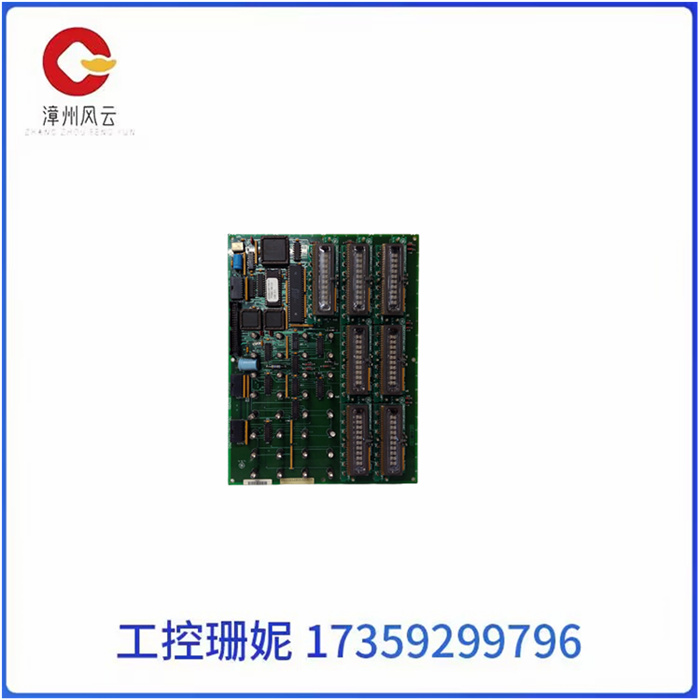

通用电气数字I/O板型号DS200TCDAG1ADA只有一个微处理器和多个可编程只读存储器（PROM）模块。它还包含一个由 10 个 LED 灯组成的集成模块和一对 50 针连接器。GE数字I/O板DS200TCDAG1ADA还装有多达8个跳线和1个从板侧面可见的LED。一个 50 针连接器标识为 JQ，另一个标识为 JR。ID印在电路板的表面上。当您计划更换 GE 数字 I/O 板DS200TCDAG1ADA因为它有缺陷时，更换板可能是同一型号的较新版本。并且为了产品改进，最新版本将包括最新的设计更改。这可能要求在电路板上重新排列元件，以适应新的电路设计。即使 50 针连接器位于新位置，一个 50 针连接器也会被分配为 JQ 作为 ID，另一个将被分配 JR 作为 ID。带状电缆可以根据标识符连接到相应的连接器。

跳线允许在与跳线关联的 2 个引脚中的 3 个之间发出信号。例如，跳线可以覆盖引脚 1 和 2 或引脚 2 和 3。如果引脚1和2被覆盖，则信号在引脚1和2之间传递，引脚3未连接到电路。

GE DS200TCDAG1AD 数字I/O板 一个微处理器

Product description

The GE digital I/O board model DS200TCDAG1ADA has only one microprocessor and multiple programmable read-only memory (PROM) modules. It also contains an integrated module consisting of 10 LED lights and a pair of 50-pin connectors. The GE digital I/O board DS200TCDAG1ADA also houses up to eight jumpers and one LED visible from the side of the board. One 50-pin connector is identified as JQ and the other as JR. The ID is printed on the surface of the board. When you plan to replace the GE digital I/O board DS200TCDAG1ADA because it has a defect, the replacement board may be a newer version of the same model. And for product improvements, the latest version will include the latest design changes. This may require rearranging the components on the board to accommodate the new circuit design. Even if the 50-pin connector is in the new location, one 50-pin connector will be assigned JQ as the ID and the other will be assigned JR as the ID. The ribbon cable can be connected to the appropriate connector according to the identifier.

The jumper allows a signal to be sent between 3 of the 2 pins associated with the jumper. For example, a jumper can cover pins 1 and 2 or pins 2 and 3. If pins 1 and 2 are covered, the signal is passed between pins 1 and 2, and pin 3 is not connected to the circuit.
