产品描述

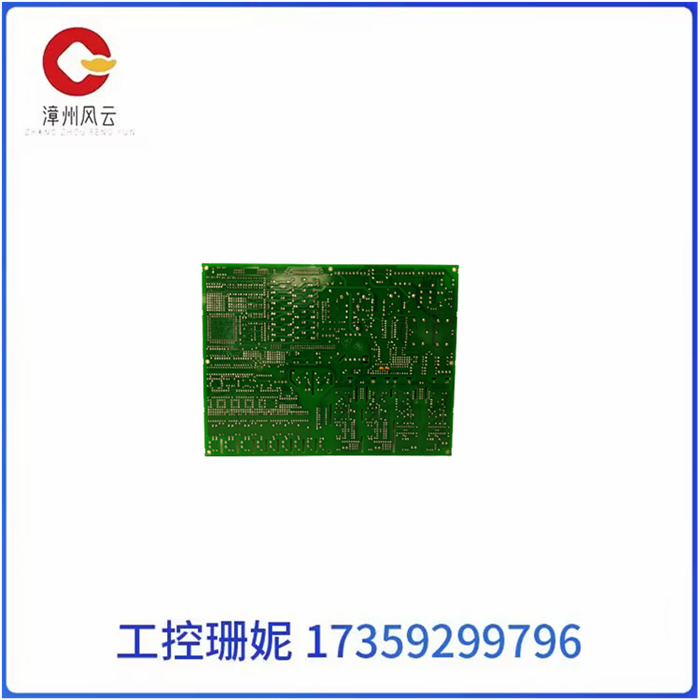

GE RST 模拟 I/O 板DS200TCQAG2B包含 34 个 40 针连接器、6 个 200 针连接器和 2 个跳线。该板还有一套 <> 个集成 LED 灯.GE RST 模拟 I/O 板上的跳线DS<>TCQAG<>B板上有多种用途，重要的是要知道您可以移动哪些跳线以及它将如何改变板的行为。在制造过程中使用一些跳线进行质量控制。在测试缺陷时，可能会移动特定的跳线来测试电路或功能。然后，跳线在发货前移回。其他跳线供客户用于为特定功能或行为配置电路板。跳线完全记录在原始板附带的信息中。

更换电路板时，请检查旧电路板，并逐个设置更换板上的跳线以匹配旧板上的位置。替换板可以是原始板的更高版本。在新版本中设计改进时，您可能会发现跳线位于新位置或从较新版本中删除。其他组件也可能在较新版本上重新定位或取消填充。提供了描述解决方法或描述从主板上移除跳线的原因的信息。确保同一型号板版本之间的可靠性和兼容性。执行产品测试以确保版本之间的兼容性。

GE DS200TCQAG2B 包含 34 个 40 针连接器

Product description

The GE RST analog I/O board DS200TCQAG2B contains 34 40-pin connectors, six 200-pin connectors, and two jumpers. The board also has a set of <> integrated LED lights. GE RST simulates jumpers on the I/O board DS<>TCQAG<>B board with a variety of uses, it is important to know which jumpers you can move and how it will change the behavior of the board. Some jumpers are used in the manufacturing process for quality control. When testing for defects, specific jumpers may be moved to test the circuit or function. The jumper is then moved back before shipping. Other jumpers are used by customers to configure boards for specific functions or behaviors. The jumper is completely recorded in the information that came with the original board.

When replacing a circuit board, check the old circuit board and set the jumpers on the replacement board one by one to match the positions on the old board. The replacement board can be a higher version of the original board. When you design improvements in a new version, you may find that jumpers are in a new location or removed from a newer version. Other components may also be repositioned or unpopulated on newer versions. Provides information that describes the workaround or describes the reason for removing jumpers from the motherboard. Ensure reliability and compatibility between board versions of the same model. Perform product testing to ensure compatibility between versions.
