产品描述

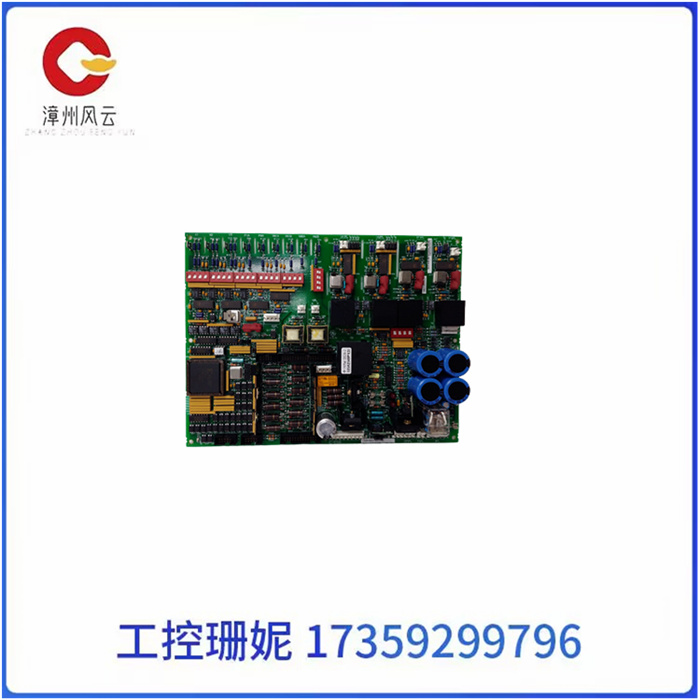

GE RST扩展模拟I/O板DS200TCQBG2A装有可编程逻辑器件和EPROM模块。GE RST 扩展模拟 I/O 板DS200TCQBG1BCB还具有 1 个可从侧面查看的 OK LED、1 个 50 针连接器和 15 个跳线。GE RST扩展模拟I/O板DS200TCQBG2A还包含多个测试点，这些测试点对于测试板上的特定电路很有价值。测试点的 ID 以 TP 为前缀，后缀为数字。例如，一个测试点的 ID 是 TP1，另一个测试点的 ID 是 TP12。要使用测试点，服务商必须有一个设计用于在电路板上执行特定测试的测试设备.测试设备必须完全校准。此外，测试设备正面的设置必须适合测试。将电路板放在静态保护表面上，例如扁平的 EDS 保护袋。当您使用电路板或在驱动器中执行任何工作时，请始终佩戴腕带。

您可能看到的主板无法正常工作的第一个迹象是主板侧面的绿色 LED 未亮起。当电路板通电并且电路板按设计运行时，LED 亮起，在驱动器运行时从主板机柜中可见。当电路板通电时 LED 未点亮时，电路板上的电路可能有缺陷，测试电路可能会查明问题所在。

GE DS200TCQBG2A 运行平稳 材料利用率高

Product description

The GE RST extended analog I/O board DS200TCQBG2A is equipped with programmable logic device and EPROM module. The GE RST extended analog I/O board DS200TCQBG1BCB also features an OK LED that can be viewed from the side, a 50-pin connector, and 15 jumpers. The GE RST extended analog I/O board DS200TCQBG2A also contains multiple test points that are valuable for specific circuits on the test board. The ID of the test point is prefixed with TP and suffix with a number. For example, the ID of one test point is TP1 and the ID of the other test point is TP12. To use a test point, the vendor must have a test device designed to perform specific tests on the board. Test equipment must be fully calibrated. In addition, the front of the test device must be set up appropriately for testing. Place the board on a static protective surface, such as a flat EDS protective bag. Always wear the wristband when you are using the board or performing any work in the drive.

The first sign you might see that the motherboard isn't working properly is the green LED on the side of the motherboard that doesn't light up. When the board is powered on and the board is operating as designed, the LED lights up and is visible from the motherboard cabinet while the driver is running. When the LED is not lit when the board is powered on, the circuit on the board may be defective, and testing the circuit may pinpoint the problem.
